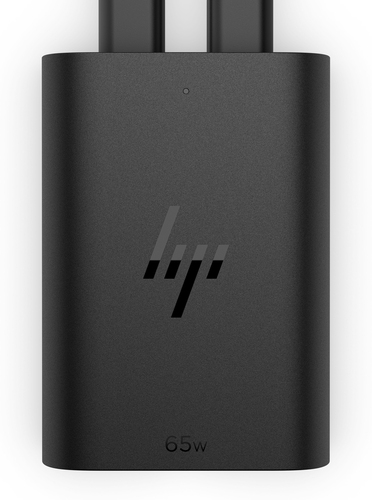

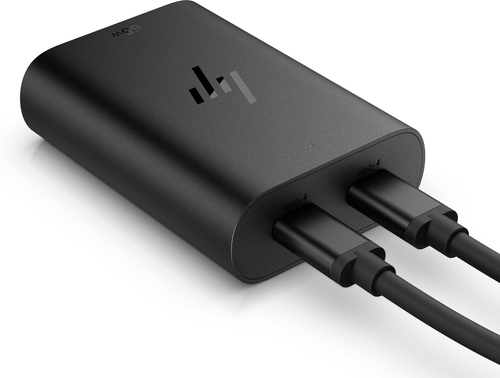

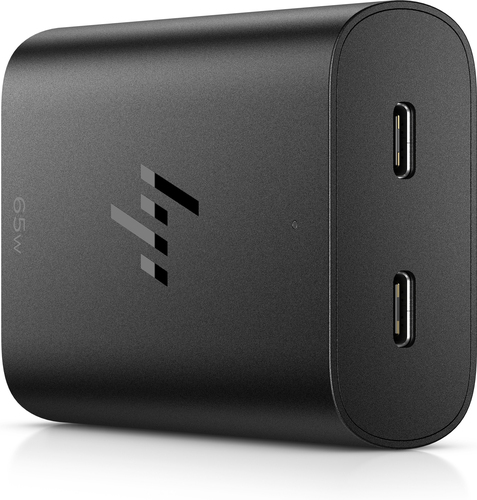

HP 65W Gallium Nitride USB-C Laptop Charger

Part number 600Q8AA

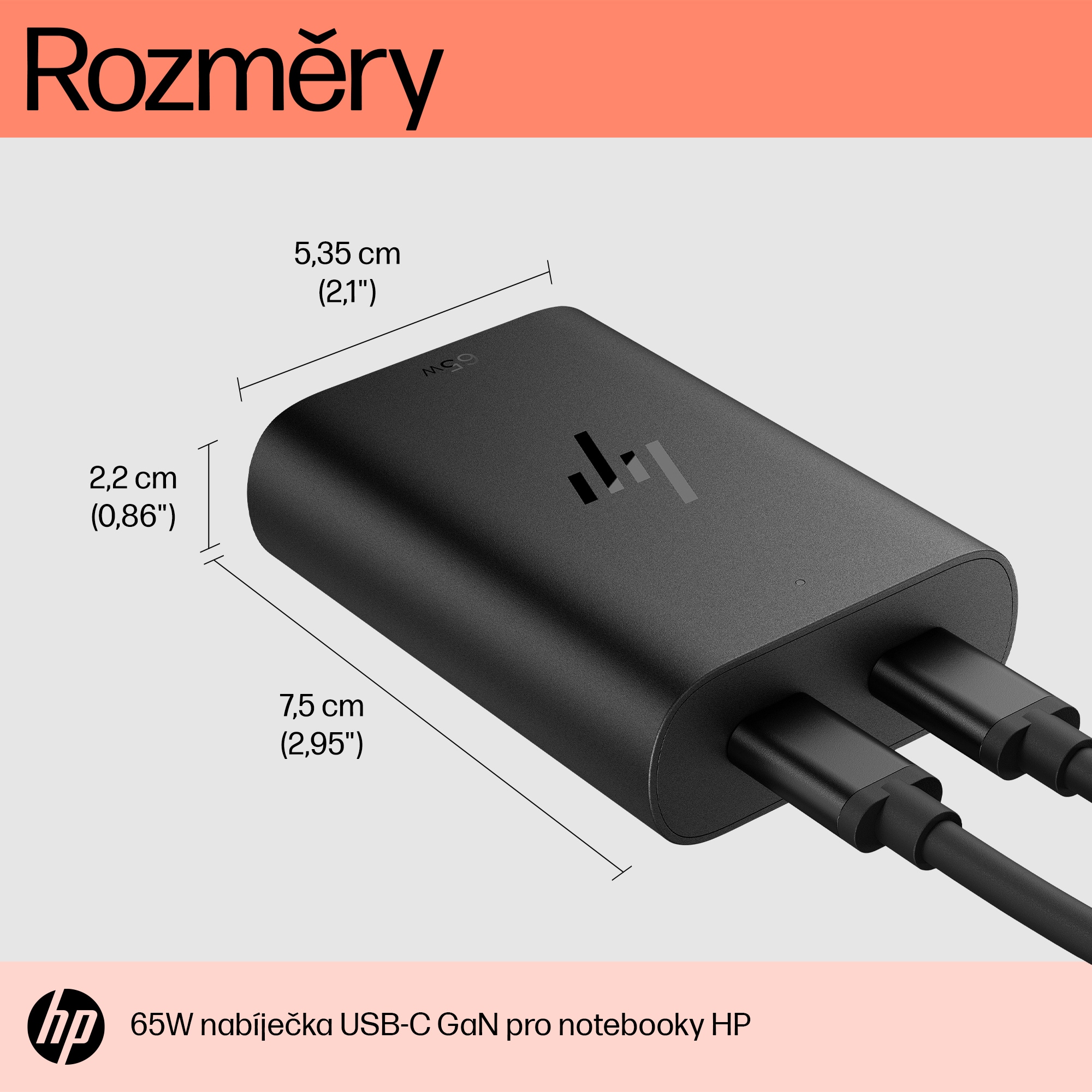

Dimensions (HxWxD) 2.95 x 2.1 x 0.86 in (7.5 x 5.35 x 2.2 cm)
Weight 0.24 lbs (110g)
Input Input efficiency 81.5% min at 115 Vac/ 230Vac @ 5V/3A
86.7% min at 115 Vac/ 230Vac @ 9V/3A
88% min at 115 Vac/ 230Vac @ 12V/5A
89% min at 115 Vac/ 230Vac @ 15V/4.33A
89% min at 115 Vac/ 230Vac @ 20V/3.25A
Input frequency range 47 ~ 63 Hz
Input AC current 1.6 A at 90 VAC and maximum load
Output Output power 65W
DC output 5V/9V/12V/15V/20V
Hold-up time 5ms at 115 Vac input
Output current limit 8.0A Maximum
Over-Voltage Protection 5V: 7.25V@OVP
9V: 13.05V@OVP
12V: 15.8V@OVP
15V: 21.75V@OVP
20V: 29V@OVP
Power rating Input
Single output
Double output
100-240V ~ 1.6A 50-60Hz Wide Range input
5.0/9.0/12.0/15.0/20.0V DC 3.0/3.0/5.0/4.33/3.25A
15.0W/65.0W Max (PPS 3.3-20.0V DC 3.25A Max, 10.8/65.0W Max)
5.0/9.0/12.0/15.0/20.0V DC 3.0/3.0/3.0/3.0/2.25A
+5.0/9.0/12.0/15.0/20.0V DC 3.0/2.22/1.66/1.33/1.0A
30.0W/65.0W Max (PPS 3.3-20.0V DC 2.25A Max +3.3-20.0V DC 1.0A Max, 10.8W/65.0W Max)
or 5.0/9.0/12.0/15.0/20.0V DC 3.0/3.0/2.5/2.0/1.5A
+5.0/9.0/12.0/15.0/20.0V DC 3.0/3.0/2.5/2.0/1.5A
30.0W/65.0W Max (PPS 3.3-20.0V DC 1.5A Max +3.3-20.0V DC 1.5A Max, 9.9W/60.0W Max)
Connector USB TYPE C
Operating temperature 32°F to 95°F (0°to 35°C)
Non-operating (storage) temperature -4°F to 185°F (-20°to 85°C)
Altitude 0 to 16,400 ft (0 to 5000m)
Humidity 20% to 95%
Storage humidity 10% to 95%
EMI and safety certifications - CE Mark - full compliance with LVD and EMC directives
- Worldwide safety standards -IEC60950, EN60950, UL60950, UL62368, Class1, SELV; Agency approvals -
C-UL-US, DENAN, EN55022 Class B, FCC Class B, CISPR32 Class B, CCC, NOM-1 NYCE.
- MTBF - over 100,000 hours at 25°C ambient condition.

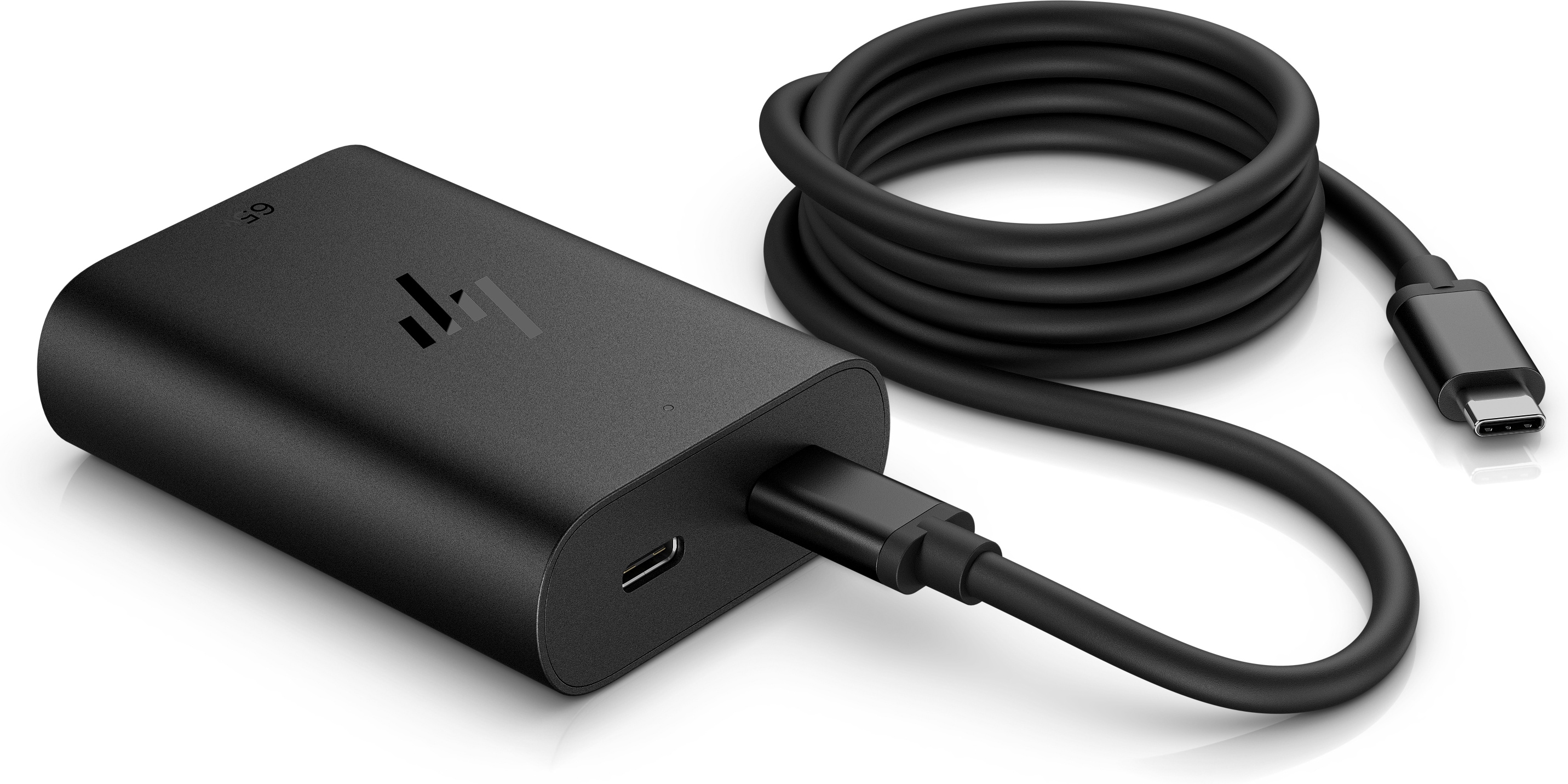

What´s in the box HP USB-C 65W GaN Laptop Charger, Power cord, USB-C to USB-C cable, Product notice and Warranty card.
