ZyXEL SURGEPRO, 1G Ethernet Surge Protector

Zyxel 1G Ethernet Surge Protector

Ethernet Surge Protector

Safeguarding Your Ethernet Devices from The Surge

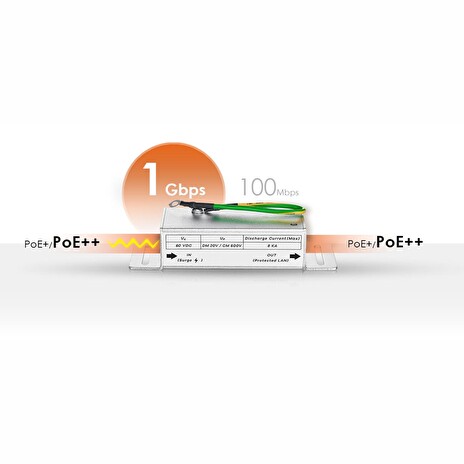

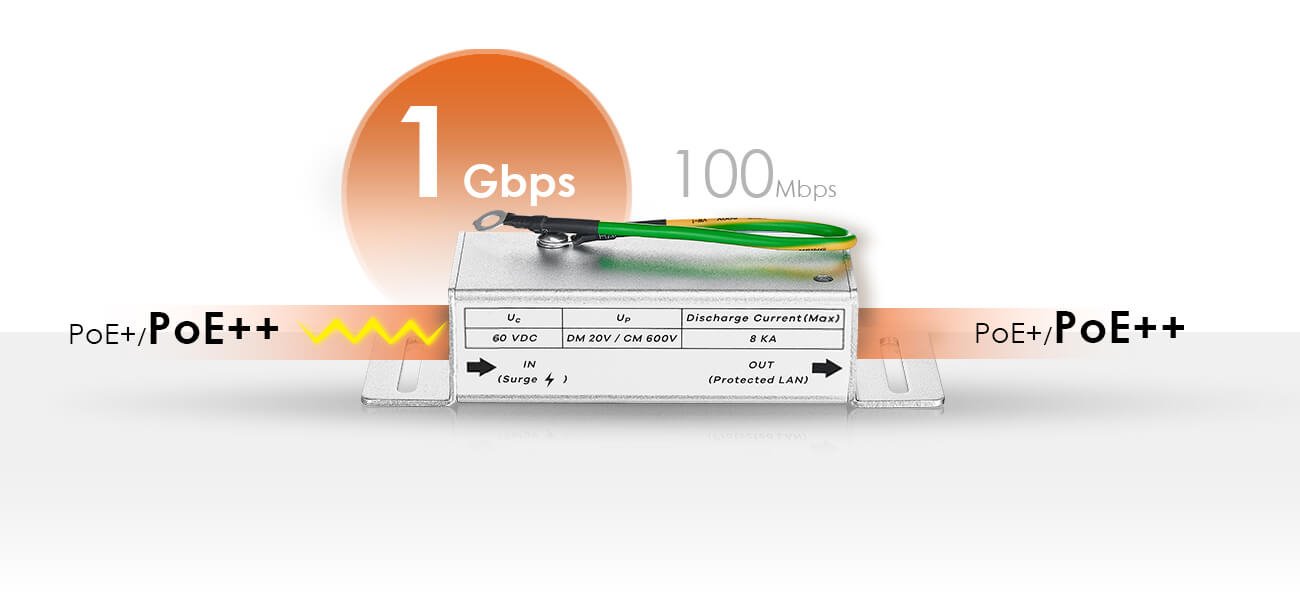

SURGEPRO-GE is the Ethernet surge protector with robust level of Line-Line, Line-Ground protection to shield commercial networking products from power interference, ensures data security, and prolongs device’s lifespan, thereby offering uninterrupted business operations.

Support 802.3bt PoE++ (60W) and Gigabit Speed
The SURGEPRO-GE is designed to provide protection networking devices, supporting PoE standards of IEEE 802.3af/at/bt and network speeds of 10 Mbps, 100 Mbps, and 1 Gbps for connections up to 100 meters.

Easy Installation
Just follow the instruction on the label, It’s fast and easy to protect your network in minutes.

Product Name
Ethernet Surge Protector

Interface Connections
2 RJ-45 connector

Data Line Protection
RJ-45 10/100/1000 Ethernet

IEEE 802.3af/at/bt Support
Yes (802.3bt 60 W supported)

Maximum Operation DC Voltage
60 VDC

Maximum Discharge Current
8 KA

Line to GND Protection Level
20 KV (10/700 us)/10 KA (8/20 us)

Line to Line Protection Level
4 KV (10/700 us)

Response Time
< 5 ns

Min. Power Consumption (watts)
1.62

Physical Specifications
Dimensions (WxDxH)(mm/in)
40 x 120 x 25/1.57 x 4.72 x 0.98

Weight (g/lb.)
121/0.27

Operating
Temperature: -40°C to 85°C/-40°F to 185°F

Humidity: 10% to 90% (non-condensing)
Storage
Temperature: -40°C to 85°C/-40°F to 185°F
Humidity: 10% to 90% (non-condensing)

Certification
FCC (class B), CE (class B), IEC 61000-4-5, IEC 61643-21, ITU-T K.21
