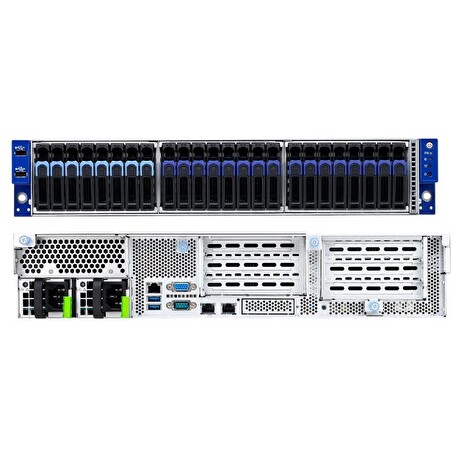

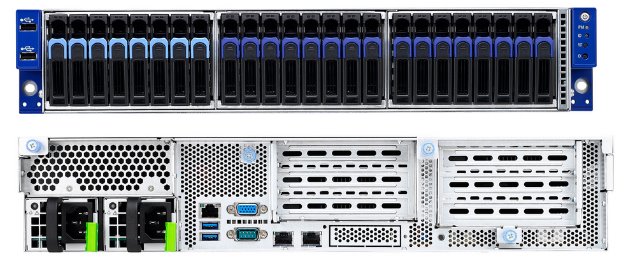

Tyan Transport SX 2U server 1x SP3, 16x DDR4 ECC R, 24x 2,5" (16 SATA,8 U.2), 2x770W (plat.), 2x 1Gb LAN + OCP, IPMI
Tyan Transport SX TN70AB8026 (B8026T70AV16E8HR) Specifications
System
Form Factor
2U Rackmount
Chassis Model
TN70A
Dimension (D x W x H)
27.56" x 17.72" x 3.43" (700 x 450 x 87mm)
Motherboard Name
S8026GM2NRE
Gross Weight
30 kg (66 lbs)…
Kategorie: Servery
Kód: 2009209PN: B8026T70AV16E8HRVýrobce: TyanZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
Aktuálně není v nabídce
Popis produktu
| Tyan Transport SX TN70AB8026 (B8026T70AV16E8HR) Specifications | |||
|---|---|---|---|
| System | Form Factor | 2U Rackmount | |
| Chassis Model | TN70A | ||
| Dimension (D x W x H) | 27.56" x 17.72" x 3.43" (700 x 450 x 87mm) | ||
| Motherboard Name | S8026GM2NRE | ||
| Gross Weight | 30 kg (66 lbs) | ||
| Net weight | 19 kg (42 lbs) | ||
| Front Panel | Buttons | (1) RST / (1) ID / (1) PWR w/ LED | |
| LEDs | (1) ID / (1) Warning | ||
| I/O Ports | (2) USB 2.0 ports | ||
| External Drive Bay | Q'ty / Type | (16) 2.5" Hot-Swap SSD/HDD + (8) NVMe | |
| HDD Backplane Support | SAS 12Gb/s /SATA 6Gb/s / NVMe | ||
| Supported HDD Interface | (16) 2.5" SATA 6Gb/s + (8) 2.5" NVMe | ||
| Internal Drive Bay | Type / Q'ty | (2) 2.5" fixed HDD/SSDs | |
| Supported HDD Interface | (2) SATA 6Gb/s | ||
| System Cooling Configuration | FAN | (8) 6cm fans | |
| Power Supply | Type | RPSU | |
| Input Range | AC 100-127V/10A / AC 200-240V/5A | ||
| Frequency | 50-60 Hz | ||
| Output Watts | 770 Watts | ||
| Efficiency | 80 plus Platinum | ||
| Redundancy | 1+1 | ||
| Processor | Q'ty / Socket Type | (1) AMD Socket SP3 | |
| Supported CPU Series | (1) AMD EPYC™ 7000 Series Processor | ||
| Average CPU Power (ACP) Wattage | Max up to 180W | ||
| Memory | Supported DIMM Qty | (16) DIMM slots | |
| DIMM Type / Speed | DDR4 ECC RDIMM/LRDIMM/NVDIMM 2667 | ||
| Capacity | Up to 1,024GB RDIMM/LRDIMM | ||
| Memory channel | 8 Channels per CPU | ||
| Memory voltage | 1.2V | ||
| Expansion Slots | PCI-E | *Without using OCP 2.0 Mezz card, please contact with Tyan technical support for details. / (1) PCI-E Gen3 x16 OCP 2.0 slot (conn.A+conn.B) / (2) PCI-E Gen3 x16 slots (Full-height, Full-length, Single-width) or (4) PCI-E Gen3 x8 slots (Full-height, Full-length) * split by Mux. / (1) PCI-E Gen3 x8 slot (Half-height, Half-length w/ tall bracket) | |
| Pre-install TYAN Riser Card | (1) M7106-L24-3F riser card for (1) PCI-E Gen3 x16 slot + (2) PCI-E Gen3 x8 slots / (1) M7106-R24-3F riser card for (1) PCI-E Gen3 x16 slot + (2) PCI-E Gen3 x8 slots | ||
| LAN | Q'ty / Port | (2) GbE ports, (1) PHY dedicated for IPMI | |
| Controller | Broadcom BCM5720 | ||
| PHY | Realtek RTL8211E | ||
| Storage | SATA | Connector | (2) SATA / (2) SFF-8612 for (16) SATA ports |
| Controller | Direct from AMD CPU | ||
| Speed | 6.0 Gb/s | ||
| RAID | N/A | ||
| NVMe | Connector (M.2) | (2) 22110/2280/2260/2242 (by PCI-E & SATA interface) | |
| Connector (OCuLink) | (4) SFF-8612 for (8) NVMe ports | ||
| Graphic | Connector type | D-Sub 15-pin | |
| Resolution | Up to 1920x1200 | ||
| Chipset | Aspeed AST2500 | ||
| I/O Ports | USB | (3) USB3.0 ports (2 at rear, 1 TYPE-A)/ (2) USB2.0 ports (2 at front) | |
| COM | (1) DB-9 port (COM1) + (1) header (COM2) | ||
| VGA | (1) D-Sub 15-pin port | ||
| RJ-45 | (2) GbE ports, (1) GbE dedicated for IPMI | ||
| System Monitoring | Chipset | Aspeed AST2500 | |
| Temperature | Monitors temperature for CPU & memory & system environment | ||
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||
| LED | Over temperature warning indicator / Fan & PSU fail LED indicator | ||
| Others | Watchdog timer support | ||
| Server Management | Onboard Chipset | Onboard Aspeed AST2500 | |
| AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | ||
| AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | ||
| BIOS | Brand / ROM size | AMI / 32MB | |
| Feature | Hardware Monitor / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI 6.1 / SMBIOS 3.1/PnP/Wake on LAN / ACPI sleeping states S5 | ||
| Operating System | OS supported list | Please refer to our AVL support lists. | |
| Regulation | FCC (DoC) | Class A | |
| CE (DoC) | Class A | ||
| CB/LVD | Yes | ||
| RCM | Class A | ||
| VCCI | Class A | ||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||
| RoHS | RoHS 6/6 Compliant | Yes | |
| Package Contains | Barebone | (1) TN70A-B8026 Barebone | |
| Manual | (1) Quick Installation Guide | ||
| Installation CD | (1) TYAN Device Driver CD | ||
Parametry
| Počet paměťových slotů | 16 |
|---|---|
| Typ paměti | DDR4 |
| Rozměr disků | 2,5" |
| Typ řadiče | SATA |
| Procesor | AMD |
| Formát | 2U |
| Provedení serveru | Standardní rackový server |
