Počítače a kancelář Tyan Transport HX 1U GPU server 1x SP3, 16x DDR4 ECC R, 2x.2,5, 2x M.2, 2x PCIe…
Ověřený zákazník

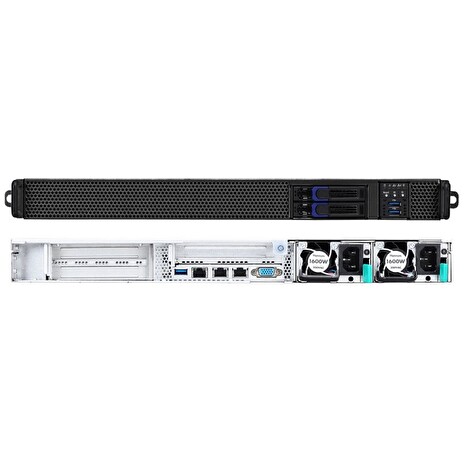

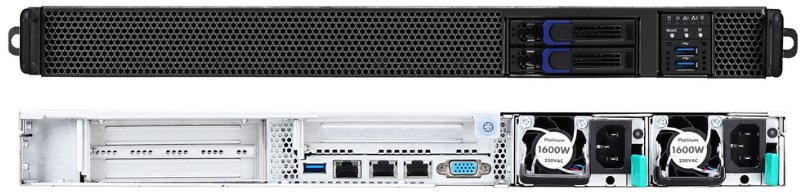

Tyan Transport HX 1U GPU server 1x SP3, 16x DDR4 ECC R, 2x.2,5, 2x M.2, 2x PCIe 2x 1600W (plat.), 2x 10Gb LAN, IPMI
TYAN GA88B8021 (B8021G88V2HR-2T-N) Specifications
System
Form Factor
1U Rackmount
Chassis Model
GA88
Dimension (D x W x H)
34.84" x 17.24" x 1.71" (885 x 438 x 43.5mm)
Motherboard Name
S8021GM2NR-2T
Gross Weight
26.5 kg (58.5 lbs)…
Kategorie: Servery
Kód: 2034903PN: B8021G88V2HR-2T-NVýrobce: TyanZáruka: 6 měsíců
Výrobek pochází z oficiální české distribuce.Více informací…
52 299 Kč včetně DPH
Cena bez DPH: 43 222 Kč
Běžná maloobchodní cena: 55 370 Kč
Cena bez DPH: 43 222 Kč
Běžná maloobchodní cena: 55 370 Kč
Skladem
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 5.5. / ZDARMA!
Přepravní službou (ČR)7.5. / od 360 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.
Toto zboží je možné koupit pouze na IČ.
Popis produktu
| TYAN GA88B8021 (B8021G88V2HR-2T-N) Specifications | |||
|---|---|---|---|
| System | Form Factor | 1U Rackmount | |
| Chassis Model | GA88 | ||
| Dimension (D x W x H) | 34.84" x 17.24" x 1.71" (885 x 438 x 43.5mm) | ||
| Motherboard Name | S8021GM2NR-2T | ||
| Gross Weight | 26.5 kg (58.5 lbs) | ||
| Net weight | 13.5 kg (30 lbs) | ||
| Front Panel | Buttons | (1) RST / (1) PWR w/ LED / (1) UID | |
| LEDs | (1) PWR / (2) LAN / (1) UID / (1) BMC event | ||
| I/O Ports | (2) USB 3.0 ports | ||
| External Drive Bay | Q'ty / Type | (2) 2.5" Hot-Swap SSD/HDD | |
| HDD Backplane Support | SAS 12Gb/s /SATA 6Gb/s | ||
| Supported HDD Interface | (2) SAS 12Gb/s / SATA 6Gb/s | ||
| System Cooling Configuration | Redundancy | Yes | |
| FAN | (10) 4cm fans | ||
| Heat Sink | (1) Passive CPU Heat sink | ||
| Power Supply | Type | ERP1U | |
| Input Range | AC 100-127V/12A / AC 200-240V/9.48A | ||
| Frequency | 47-63 Hz | ||
| Output Watts | 1600 Watts | ||
| Efficiency | 80 plus Platinum | ||
| Redundancy | 1+1 | ||
| Processor | Q'ty / Socket Type | (1) AMD Socket SP3 | |
| Supported CPU Series | (1) AMD EPYC™ 7000 Series Processor | ||
| System Bus | 1066/ 800/ 533 MHz | ||
| Average CPU Power (ACP) Wattage | Max up to 180W | ||
| Memory | Supported DIMM Qty | (16) DIMM slots | |
| DIMM Type / Speed | DDR4 ECC RDIMM/LRDIMM 2666/2400 | ||
| Capacity | Up to 2,048GB RDIMM/ 1,024GB LRDIMM/ 2,048GB LRDIMM 3DS *Actual memory speed depends on memory population topology |
||
| Memory channel | 8 Channels per CPU | ||
| Memory voltage | 1.2V | ||
| Expansion Slots | PCI-E | Default configuration: (4) PCI-E Gen3 x16 slots (Full-height, 10.5" length, Double-width) + (1) PCI-E Gen3 x16 slot (Full-height, Half-length, Single-width) | |
| Pre-install TYAN Riser Card | (1) M2091-R riser card (right) for (1) PCI-E Gen3 x16 slot / (1) M8021-R16-1L-1 riser card for (1) PCI-E Gen3 x16 slot / (2) M5631-R16-1F-1 riser card for (2) PCI-E Gen3 x16 slots / (1) M8021-R32-2L-2 riser card for (1) PCI-E Gen3 x16 slot | ||
| Others: | Field Upgradable Option: Optional Riser Cards: (1) M2091-R riser card (right) for (1) PCI-E Gen3 x16 slot , (1) M8021-R32-2L-1 riser card for (2) PCI-E Gen3 x16 slots, (1) M8021-R32-2L-2 riser card for (2) PCI-E Gen3 x16 slots, (2) M5631-R16-1F-1 riser card for (2) PCI-E Gen3 x16 slots / Total PCI-E Slots Provided by the Field Upgradable Options: (6) PCI-E Gen3 x16 slots (Full-height, 10.5"-length, Single-width) + (1) PCI-E Gen3 x16 slot (Full-height, Half-length, Single-width) |
||
| LAN | Q'ty / Port | (2) 10GbE ports / (1) PHY | |
| Controller | Intel X550-AT2 | ||
| PHY | Realtek RTL8211E | ||
| Storage | NVMe | Connector (M.2) | (2) 22110/2280 (by PCI-E interface) |
| Graphic | Connector type | D-Sub 15-pin | |
| Resolution | Up to 1920x1200 | ||
| Chipset | Aspeed AST2500 | ||
| I/O Ports | USB | (2) USB3.0 ports (at front) / (1) USB3.0 ports (at rear) | |
| COM | (1) 2x12 pin-header | ||
| VGA | (1) D-Sub 15-pin port | ||
| RJ-45 | (2) 10GbE ports, (1) GbE dedicated for IPMI | ||
| TPM (Optional) | TPM Support | Please refer to our TPM supported list. | |
| System Monitoring | Chipset | Aspeed AST2500 | |
| Temperature | Monitors temperature for CPU & memory & system environment | ||
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||
| LED | Over temperature warning indicator / Fan & PSU fail LED indicator | ||
| Others | Watchdog timer support | ||
| Server Management | Onboard Chipset | Onboard Aspeed AST2500 | |
| AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | ||
| AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | ||
| BIOS | Brand / ROM size | AMI / 32MB | |
| Feature | Hardware Monitor / Boot from USB device/PXE via LAN/Storage / Console Redirection / ACPI 6.1 / SMBIOS 3.1/PnP/Wake on LAN / ACPI sleeping states S0, S5 / FAN speed control automatic | ||
| Operating System | OS supported list | Please refer to our AVL support lists. | |
| Regulation | FCC (SDoC) | Class A | |
| CE (DoC) | Class A | ||
| CB/LVD | Yes | ||
| RCM | Class A | ||
| VCCI | Class A | ||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||
| RoHS | RoHS 6/6 Compliant | Yes | |
| Package Contains | Barebone | (1) GA88-B8021 Barebone | |
| Manual | (1) Quick Installation Guide | ||
| Installation CD | (1) TYAN Device Driver CD | ||
Parametry
| Počet paměťových slotů | 16 |
|---|---|
| Typ paměti | DDR4 |
| Rozměr disků | 2,5" |
| Procesor | AMD |
| Formát | 1U |
| Provedení serveru | Standardní rackový server |
| Provedení serveru | GPU server |
