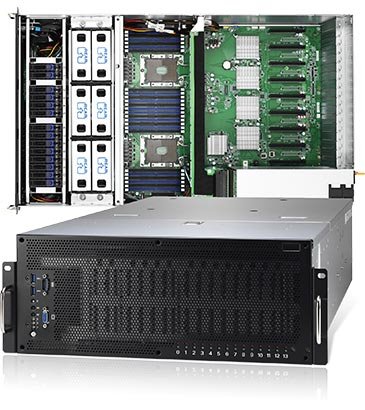

Tyan Thunder HX 4U 8 GPU server 2x 3647, 24x DDR4 ECC R, 14x 2,5 SATA, 3x 3200W (plat.), 2x 10Gb LAN, IPMI
Tyan Thunder HX FT77DB7109 (B7109F77DV14HR-2T-N) Specifications
System
Form Factor
4U Rackmount
Chassis Model
FT77D
Dimension (D x W x H)
30.31" x 17.24" x 6.93" (770 x 438 x 176mm)
Motherboard Name
S7109GM2NR-2T #
Motherboard Notification…
Kategorie: Servery
Kód: 2340582PN: B7109F77DV14HR-2T-NFVýrobce: TyanZáruka: 6 měsíců
Výrobek pochází z oficiální české distribuce.Více informací…
121 899 Kč včetně DPH
Cena bez DPH: 100 743 Kč
Běžná maloobchodní cena: 125 498 Kč
Cena bez DPH: 100 743 Kč
Běžná maloobchodní cena: 125 498 Kč
Skladem
Toto zboží je možné koupit pouze na IČ.
Popis produktu
| Tyan Thunder HX FT77DB7109 (B7109F77DV14HR-2T-N) Specifications | |||
|---|---|---|---|
| System | Form Factor | 4U Rackmount | |
| Chassis Model | FT77D | ||
| Dimension (D x W x H) | 30.31" x 17.24" x 6.93" (770 x 438 x 176mm) | ||
| Motherboard Name | S7109GM2NR-2T # | ||
| Motherboard Notification | # The motherboard is not to be sold separately | ||
| Gross Weight | 45 kg (99.5 lbs) | ||
| Net weight | 26 kg (57.5 lbs) | ||
| Front Panel | Buttons | (1) RST / (1) NMI / (1) ID / (1) PWR w/ LED | |
| LEDs | (1) HDD / (1) ID / (1) Warning / (3) LAN | ||
| I/O Ports | (2) USB 3.0 ports | ||
| Internal Drive Bay | Q'ty / Type | (14) 2.5" Hot-Swap SSD/HDD | |
| HDD Backplane Support | SAS 12Gb/s /SATA 6Gb/s /NVMe | ||
| Supported HDD Interface | (14) SATA 6Gb/s | ||
| System Cooling Configuration | Redundancy | Yes | |
| FAN | (5+1) hot-swap 12cm fans | ||
| Power Supply | Type | RPSU | |
| Input Range | AC 100-127V/12.9A / AC 200-240V/9.5A | ||
| Frequency | 47-63 Hz | ||
| Output Watts | 2,000 Watts (100-127Vac input) / 3,200Watts (200-240Vac input) | ||
| Efficiency | PFC / 80 plus Platinum | ||
| Redundancy | 2+1 | ||
| Processor | Q'ty / Socket Type | (2) LGA3647 | |
| Supported CPU Series | Intel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable Processor | ||
| Thermal Design Power (TDP) Wattage | Max up to 205W | ||
| System Bus | Up to 10.4/9.6 GT/s with Intel UltraPath Interconnect (UPI) support | ||
| Chipset | PCH | Intel C621 | |
| Switch IC | (4) PLX PEX8747 | ||
| Memory | Supported DIMM Qty | (12)+(12) DIMM slots | |
| DIMM Type / Speed | DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2666 | ||
| Capacity | Up to 768GB RDIMM/ 1,536GB LRDIMM/ 2,048GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR | ||
| Memory channel | 6 Channels per CPU | ||
| Memory voltage | 1.2V | ||
| Expansion Slots | PCI-E | (1) PCI-E Gen3 x16 slot (FH / FL / SW) / (8) PCI-E Gen3 x16 slots (FH / FL / DW) | |
| Pre-install TYAN Riser Card | (1) M2215-L8-1F # riser card for (1) LAN mezz. slot / (1) M2217-L16-IO # riser card for (1) storage mezz. slot | ||
| Others: | (1) PCI-E Gen3 x8 storage mezz. slot / (1) PCI-E Gen3 x8 LAN mezz. slot | ||
| Notification: | # The item is not to be sold separately | ||
| LAN | Q'ty / Port | (2) 10GbE ports / (1) PHY | |
| Controller | Intel X550-AT2 | ||
| PHY | Realtek RTL8211E | ||
| Storage | SATA | Connector | (2) Mini-SAS HD (8-ports) |
| Controller | Intel C621 | ||
| Speed | 6.0 Gb/s | ||
| RAID | RAID 0/1/10/5 (Intel RSTe) | ||
| sSATA | Connector | (2) SATA-III / (1) Mini-SAS HD (4-ports) | |
| Speed | 6.0 Gb/s | ||
| RAID | RAID 0/1/10/5 (Intel RSTe) | ||
| Graphic | Connector type | D-Sub 15-pin | |
| Resolution | Up to 1920x1200 | ||
| Chipset | Aspeed AST2500 | ||
| I/O Ports | USB | (2) USB3.0 ports (at front) | |
| COM | (1) DB-9 COM port (at front) | ||
| VGA | (1) D-Sub 15-pin port (at front) | ||
| RJ-45 | (2) 10GbE ports, (1) GbE dedicated for IPMI | ||
| TPM (Optional) | TPM Support | Please refer to our TPM supported list. | |
| System Monitoring | Chipset | Aspeed AST2500 | |
| Temperature | Monitors temperature for CPU & memory & system environment | ||
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | ||
| LED | Over temperature warning indicator / Fan & PSU fail LED indicator | ||
| Others | Watchdog timer support | ||
| Server Management | Onboard Chipset | Onboard Aspeed AST2500 | |
| AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | ||
| AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | ||
| BIOS | Brand / ROM size | AMI / 32MB | |
| Feature | Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5 / ACPI 6.1 | ||
| Operating System | OS supported list | Please refer to our AVL support lists. | |
| Regulation | FCC (SDoC) | Class A | |
| CE (DoC) | Class A | ||
| CB/LVD | Yes | ||
| RCM | Class A | ||
| VCCI | Class A | ||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | |
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | ||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | ||
| Note | Please refer to the TYAN NVIDIA Compatibility List for the operating temperature while GPGPU deployed | ||
| RoHS | RoHS 6/6 Compliant | Yes | |
| Package Contains | Barebone | (1) FT77D-B7109 w/NV Tesla-aware FW Barebone | |
| Manual | (1) Quick Installation Guide | ||
| Installation CD | (1) TYAN Device Driver CD | ||
Parametry
| Počet paměťových slotů | 24 |
|---|---|
| Typ paměti | DDR4 |
| Rozměr disků | 2,5" |
| Typ řadiče | SATA |
| Procesor | Intel |
| Formát | 4U |
| Provedení serveru | GPU server |
