Převodník metalické sítě na optickou. Hodí se všude tam kde je
vzdálenost mezi dvěma body delší než povoluje klasická metalická
síť a nelze použít galvanického spojení. Optická vlákna také velmi
dobře odolávají rušivým elektromagnetickým či atmosférickým vlivům.

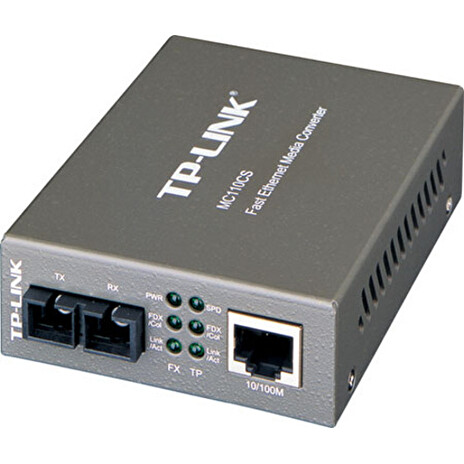

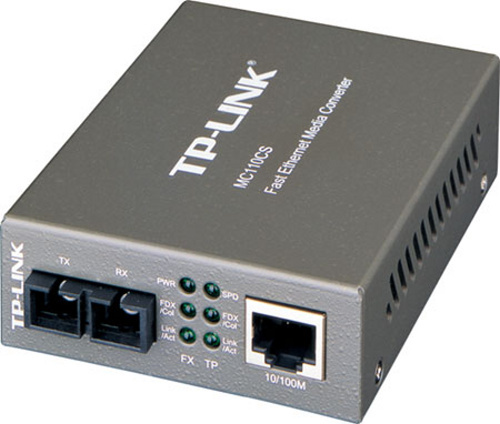

The MC110CS is a media converter designed to convert 100BASE-FX
fiber to 100Base-TX copper media or vice versa. Designed under IEEE
802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is
designed for use with single-mode fiber cable utilizing the SC-Type
connector. The MC110CS supports shortwave (SX) laser specification
at a full wire speed forwarding rate. It works at 1310nm on both
transmitting and receiving data.
Other features of this module include the ability to be used as a
stand alone device (no chassis required) or with TP-LINK’s 19’’
system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of
duplex mode on TX port, and front panel status LEDs. The MC110CS
will transmit at extended fiber optic distances utilizing
single-mode fiber up to 20 kilometers.
* Auto negotiation of 10/100Mbps and auto MID/MID-X for TX port.
* Provide switch configuration of Half-Duplex / Full-Duplex
transfer mode for FX port.
* Extend fiber distance up to 20-60km.
* Easy-to-view LED indicators provide status to monitor network
activity easily.
* External power supply.
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic Function
Half/Full-Duplex transfer mode for FX port
Full Duplex Flow Control (IEEE 802.3x)
Half Duplex Flow Control (Backpressure)
Extends fiber distance up to 20km
Ports
1 100M SC port
1 100M RJ45 port (Auto MDI/MDIX)
Network Media
10BASE-T
UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000BASE-T
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000BASE-FX
Single-mod Fiber
LED Indicators
PWR, FDX/Col, Link/Act, SPD
Safety & Emission
FCC, CE
Dimensions (W*D*H)
3.7*2.9*1.1 in. (94.5*73.0*27.0 mm
Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Power Supply
External Power Adapter
