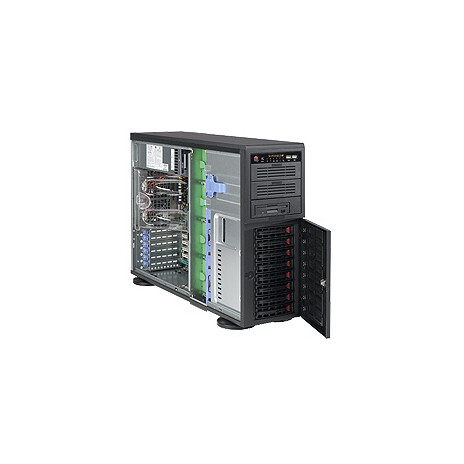

4U / Tower High-End Workstation/ Server chassí Key Features 1. 8x
3.5" SAS3/SATA3 Backplane for Hot-Swappable Drives 2. Front HDD
Door Lock & Side Panel Intrusion Switch 3. Front I/O Ports: 2x USB
3.0 4. 4x Middle 8cm (5000 rpm) PWM Fan 5. 4U / Full Tower Chassis
Supports max. Motherboard, Sizes ? E-ATX 12" x 13"/ATX/Micro ATX 6.
668W Platinum Level Certified High-Efficiency Power Supply 7. 3x
5.25" External HDD Drive Bays & 8x 3.5" Hot-Swappable HDD Drives
Product SKUs CSE-743AC-668B SuperChassis 743AC-668B Form Factor 4U
chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX
and ATX Processor Support Dual and Single Intel® and AMD processors
Dimensions Height 17.8" (452 mm) Width 7" (178 mm) Depth 25.5" (647
mm) Net Weight 52 lbs (23.59 kg) Gross Weight 55 lbs (24.95 kg)
Packaging (W x H x L) 24.6" (625 mm) x 14" (356 mm) x 31.3" (795
mm) Available Color Black Expansion Slots 7 full-height &
full-length expansion slot(s) Drive Bays 8 x 3.5" hot-swap SAS/SATA
drive bay with SGPIO Backplane 8-port 4U/Tower 3.5-inch
SAS3/SAS2/SATA3 12Gbps backplane for SC743/SC745 chassis Peripheral
Drives 3 x standard 5.25" drive bay Front Panel Buttons Power
On/Off button System Reset Button LEDs 2 Network Activity LEDs Fan
Fail/System Over Heat LED HDD activity LED Power Status LED Unit
Identification (UID) LED Ports 2x USB 3.0 Port(s) Systems Cooling
Fans 4 x 5000 RPM Hot-swap PWM Cooling Fans System Monitoring
Chassis intrusion switch Operating Environment (System) Operating
Temperature Range 5°C - 35°C (41°F - 95°F) Non-Operating
Temperature Range -40°C - 70°C (-40°F - 158°F) Operating Relative
Humidity Range 8% - 90% (non-condensing) Non-Operating Relative
Humidity Range 5% - 95% (non-condensing) Power Supply PS2 668W
Multi-output power supply 80PLUS Platinum Power Efficiency 92%
Total Output Power and Input 668W with Input 100 - 240Vac AC Input
Frequency 50-60Hz Dimensions (L x W x H) 185 x 150 x 86 mm Output
Type 24pin ATX -12V Max: 0.1A / Min: 0A +12V Max: 54A / Min: 0.2A
(100Vac - 240Vac) +5V Max: 11.8A / Min: 0.1A +3.3V Max: 12A / Min:
0.1A +5Vsb Max: 2A / Min: 0A Certification Platinum Certified
Platinum Certified Optional Parts List Part Number Qty Description
Mounting Rail CSE-PT26L-(B) - Cable CBL-0140L - IDE 80-WIRE CABLE
FOR DVD ROM, 60 CM, LF Cable CBL-0286L - 4 to 4 pin rear fan pwr
ext w/ square header, 30cm (PWM). 24AWG Fan Kit FAN-0082L4 -
80x80x38 mm 4-pin PWM Fan Assembly for SC743, SC745 Fan Kit
FAN-0091L4 - 92X38MM 4-PIN PWM FAN W/ HUS FOR SC743 Fan Kit
FAN-0103L4 - 92x25 4Pin PWM Fan assembly for SC743 Super Quiet rear
fan Fan Kit FAN-0104L4 - 80x25,4 Pin PWM fan assem. for SC743 Super
Quiet chassis fan Peripheral Drive(s) DVM-LITE-DVDRW24-HBT - BLACK
LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF HDD Tray
MCP-220-00080-0B - Adaptor HDD carrier to install 2.5" HDD in 3.5"
HDD tray
