Supermicro PCIe x8 Add-On Card for up to four M.2 NVMe SSDs

Specifications
Add-on Card

Supermicro PCI-E 3.0 carrier card for up to four NVMe M.2 SSDs

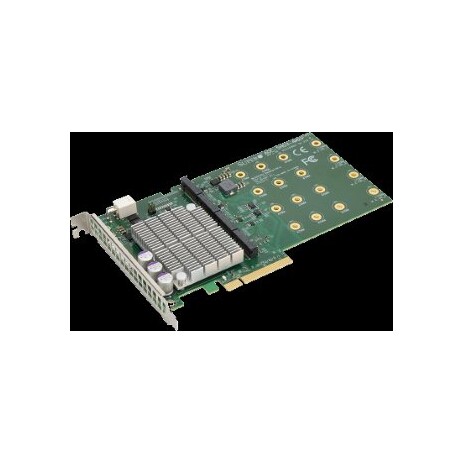

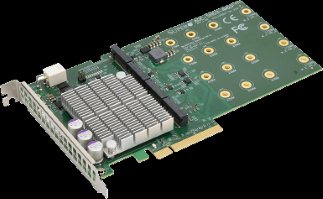

The Supermicro AOC-SHG3-4M2P M.2 NVMe SSD carrier AOC features four internal sockets for 4 different lengths of M.2 SSD coupled with an on-board switch allowing dense storage with intense performance. Designed for flexibility, this AOC fits a standard PCI-E 3.0 x8 slot and will require minimal, if any, BIOS or OS modifications to work instantly. This robust add-on card will address the growing demand for increased storage performance and scalability for a diverse range of solutions; from entry-level SMB systems to enterprise class server platforms. Ideal for embedded/IPC solutions and desktop/gaming station solutions, NVMe SSDs outperform current SAS/SATA SSDs several times over.

Form factor: PCI-E 3.0 x8 full-height (FH).

Includes both tool-less and metal adjustable stand-offs that can support four standard M.2 lengths:

22x110mm
22x80mm
22x60mm
22x42mm

This product is only available through Supermicro.
Compliance
RoHS


    RoHS Compliant 6/6, Pb Free
