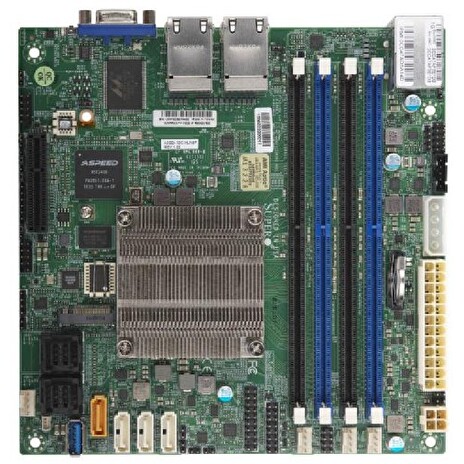

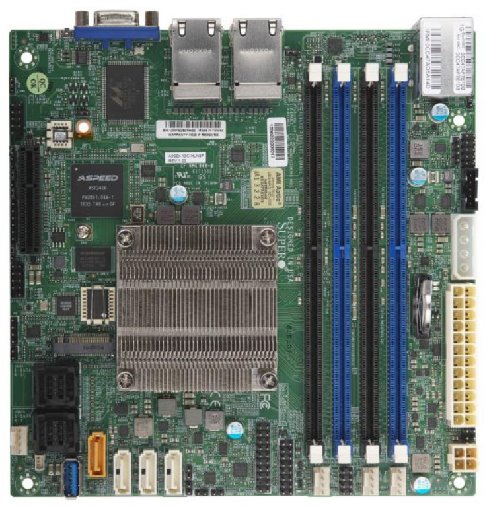

Supermicro mini-ITX MB Atom C3758 (8-core), 4x DDR4 ECC DIMM, 12xSATA, 1x PCI-E 3.0 x4, 4x 1GbE LAN, IPMI

Serverový konfigurátor

Key Features Intel Atom Processor C3758, Single Socket FCBGA1310 supported, CPU TDP support 25W System on Chip Up to 256GB Registered ECC DDR4-2400MHz, Up to 64GB Unbuffered ECC/Non-ECC DDR4-2400MHz; in 4 DIMM slots Expansion slots: 1 PCI-E 3.0 x4, M.2 Interface: PCI-E 3.0 x2 and SATA M.2 Form Factor: 2242, 2280 M.2 Key: M-Key 4 GbE LAN ports 12 SATA3 (6 Gbps) ports I/O: 1 VGA, 1 COM, TPM header 1 USB 3.0 (Type-A) 4 USB 2.0 (2 rear, 2 via headers) Intel Quick Assist Technology Supports 12V DC power input Product SKUs MBD-A2SDi-8C-HLN4F A2SDi-8C-HLN4F Physical Stats Form Factor Mini-ITX Dimensions 6.7" x 6.7" (17.02cm x 17.02cm) Processor/Cache CPU Intel® Atom™ Processor C3758. Single Socket FCBGA1310 supported, CPU TDP support 25W Cores / Cache 8 cores, 8 threads / 16MB cache System Memory Memory Capacity Up to 256GB Registered ECC RDIMM and DDR4-2400MHz Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2400MHz, in 4 DIMM slots Memory Type 2400/2133/1866/1600MHz DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Detects double-bit errors (using ECC memory) On-Board Devices Chipset System on Chip SATA SoC controller for 12 SATA3 (6 Gbps) ports; IPMI ASPEED AST2400 BMC Network Controllers Quad LAN with Intel® C3000 SoC 1GbE Graphics Aspeed AST2400 BMC Input / Output LAN 4 RJ45 Gigabit Ethernet LAN ports USB 4 USB 2.0 ports (2 rear + 2 headers), 1 USB 3.0 ports ( + 1 Type A) Video Output 1 VGA port Serial Port / Header 1 COM Port (1 header) TPM TPM Header Expansion Slots PCI-E 1 PCI-E 3.0 x4 M.2 Interface: PCI-E 3.0 x2 and SATA Form Factor: M-Key 2242, 2280 System BIOS BIOS Type AMI UEFI BIOS Features UEFI 2.4 SMBIOS 2.7.1 Management Software IPMI2.0, KVM with dedicated LAN, NMI, SuperDoctor® 5, Watchdog Power Configurations ATX Power connector +12V DC Power Input CPU thermal trip support for processor protection Power-on mode for AC power recovery PC Health Monitoring Voltage +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 4 -fan status, 4 fans with tachometer monitoring, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, System temperature, VBAT FAN 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control, Support 3-pin fans (w/o speed control), System level control, Thermal control tachometer fan connectors Temperature CPU thermal trip support LED UID/Remote UID Other Features 12V DC or ATX Power Source, 4-pin 12v DC power connector, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, Innovation Engine, Intel® QuickAssist Technology , M.2 NGFF connector, RoHS, SDDC, System level control, UID, WOL
