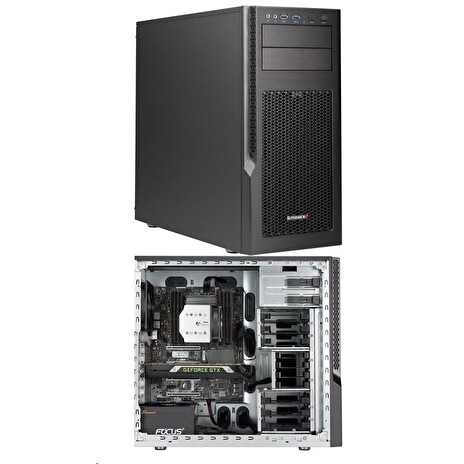

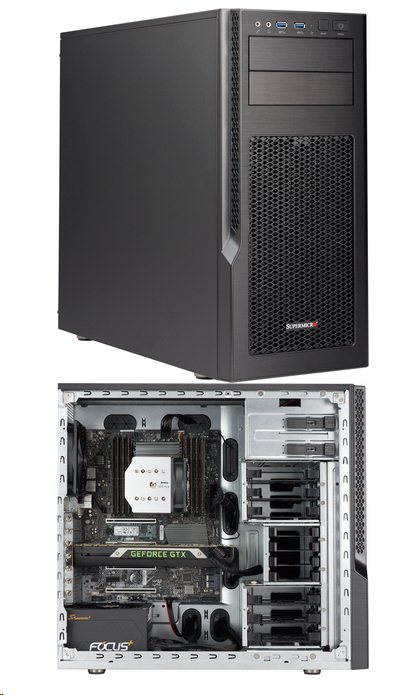

Supermicro Mid-Tower 6x 3,5" + 4x 2,5" int. HDD, 2x 5,25", 750W (80Plus Gold)

 Key Features

    Black anodized brushed aluminum fascia front panel with two USB 3.0 ports
    Removable 3.5" and 2.5" HDD/SSD cages with tool-less trays for up to 10 drives
    Sound-dampened side panels
    Tool-less 5.25" device installation with trays to support 3.5" and 2.5" drives
    Cable management holes with rubber grommets for clean builds
    Removable magnetic dust filter
    3x 120mm PWM fans included
    750W 80PLUS Gold Fully-Modular Power Supply

Specifications
Product SKUs
CSE-GS5A-754K

    SuperChassis GS5A-754K


Form Factor
Mid-Tower chassis for motherboard support size ATX 12?x10? & Micro-ATX 9.6?x9.6?

Processor Support
Single Intel® and AMD processors

Dimensions
Height

    18.1" (460 mm)

Width

    7.9" (200 mm)

Depth

    19.4" (493 mm)

Net Weight

    20 lbs (9 kg)

Gross Weight

    26 lbs (11.8 kg)

Packaging (W x H x L)

    14.2" (361 mm) x 24.9" (632 mm) x 24" (610 mm)

Available Color

    Black / Gray


Expansion Slots

    Up to
    7 full-height & full-length expansion slot(s)


Drive Bays

    6 x 3.5" fixed drive bay
    4 x 2.5" fixed drive bay


Peripheral Drives

    2 x standard 5.25" drive bay


Front Panel
Buttons

    Power On/Off button
    System Reset Button

LEDs

    HDD activity LED
    Power Status LED

Systems Cooling
Fans

    2 x 12cm front cooling fan(s)
    1 x 12cm rear exhaust fan(s)


Operating Environment (System)
Operating Temperature Range

    5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range

    -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range

    8% - 90% (non-condensing)

Non-Operating Relative Humidity Range

    5% - 95% (non-condensing)


Power Supply
750W PS2 Multi-output Power Supply
Total Output Power and Input

    750W with Input 100 - 240Vac

AC Input Frequency

    50-60Hz

Dimensions (L x W x H)

    140 x 150 x 86 mm

Output Type

    24pin ATX

-12V

    Max: 0.3A

+12V

    Max: 62A (100Vac - 240Vac)

+5V

    Max: 20A

+3.3V

    Max: 20A

+5Vsb

    Max: 3A

Certification

    Gold Certified  Gold Certified


Regulatory (Power Supply)
Power Supply Safety / EMC

    BSMI
    CCC
    FCC class B
    UL/CUL

Components
Standard Parts List
   Part Number  Qty  Description
Drive Tray(s) MCP-220-GS501-0B 1 S5 Mid-Tower Chassis 5.25inch Drive Tray
Drive Tray(s) MCP-220-GS502-0B 1 S5 Mid-Tower Chassis Tool-less Internal 2.5" HDD Carrier
Drive Tray(s) MCP-220-GS503-0B 1 S5 Mid-Tower Chassis Tool-less Internal 3.5" HDD Carrier
Power Supply & Accessory PWS-754-PQ 1 SSR-750FX 750W Muli-output-output PS with modular cable
Optional Parts List
   Part Number  Qty  Description
Heatsink / Retention  SNK-P3002A  1  Liquid Cooling Module w/ a 3-pin Pump Connector for S5 chassis
