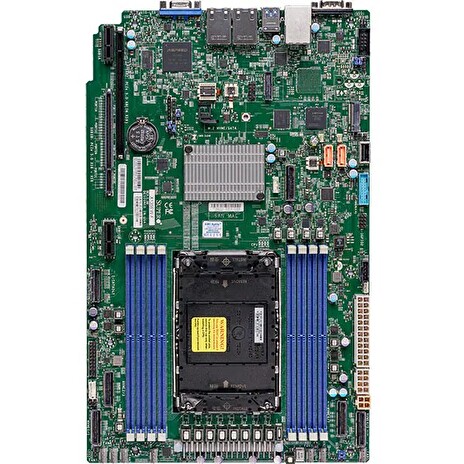

SUPERMICRO MB LGA4677, C741, 8x DDR5 ECC, 10xNVMe, 10xSATA3, 1xM.2, PCIe 5.0/(x32,x8),2x 1Gb LAN,IPMI, WIO
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Ochota, vstřícnost, odborná zdatnost

Ověřený zákazník

Supermicro MB LGA4677, C741, 8x DDR5 ECC, 10xNVMe, 10xSATA3, 1xM.2, PCIe 5.0/(x32,x8),2x 1Gb LAN,IPMI, WIO

Key Features 4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP Intel C741® Chipset Up to 2TB 3DS ECC RDIMM, DDR5-4800MT/s (1DPC) in 8 DIMM slots 1 PCIe 5.0 x8 ( in x16) 1 PCIe 5.0 x32 M.2 Interface:  1 PCIe 3.0 x2 M.2 Form Factor:  2280, 22110 M.2 Key:  M-Key 10 NVMe ports PCIe…
Kategorie: Základní desky Supermicro
Kód: 3596259PN: MBD-X13SEW-F-OVýrobce: SupermicroZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
18 799 Kč  včetně DPH
Cena bez DPH: 15 536 Kč
Běžná maloobchodní cena: 20 597 Kč
Ušetříte 1 798 Kč (8,73 %)
Cena po registraci:
18 599 Kč
Cena bez DPH: 15 371 Kč
Nákup po telefonu
+420 587 407 456
Skladem

Popis produktu

Key Features

  1. 4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
  2. Intel C741® Chipset
  3. Up to 2TB 3DS ECC RDIMM, DDR5-4800MT/s (1DPC) in 8 DIMM slots
  4. 1 PCIe 5.0 x8 ( in x16)
    1 PCIe 5.0 x32
    M.2 Interface: 1 PCIe 3.0 x2
    M.2 Form Factor: 2280, 22110
    M.2 Key: M-Key
  5. 10 NVMe ports PCIe 5.0 x8 via 5 MCIO connectors
  6. Dual LAN with 1GbE with Intel® I210
  7. 2 SuperDOM with built-in power
  8. I/O: 1 VGA, 2 COM, 1 TPM header
  9. 4 USB 3.2 Gen1 (2 rear, 2 via header), 3 USB 2.0 (2 rear, 1 via Type-A)
  10. Intel® C741 controller for 10 SATA3 (6 Gbps) ports
Product SKUs
MBD-X13SEW-F
Physical Stats
Form Factor
  • Proprietary WIO
Dimension
  • 8" x 13" (20.32cm x 33.02cm)
Processor
CPU
Core
  • Up to 60 cores
System Memory
Memory Capacity
  • 8 DIMM slots
  • Up to 2TB 3DS ECC RDIMM, DDR5-4800MHz
Memory Type
  • 4800/4400/4000MHz ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MT/s (1DPC)
DIMM Sizes
  • 16GB, 32GB, 64GB, 128GB, 256GB
  • RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.1V
Error Detection
  • Corrects single-bit errors
On-Board Devices
Chipset
  • Intel® C741
SATA
  • Intel® C741 controller for 10 SATA3 (6 Gbps) ports
IPMI
  • ASPEED AST2600 BMC
Network Controllers
  • Dual LAN with 1GbE with Intel® I210
Input / Output
SATA
  • 10 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 5 USB 2 port(s) (2 via header; 2 rear; 1 Type A)
  • 4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
Video Output
  • 1 VGA D-Sub Connector port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
DOM
  • 2 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 5.0 x8 Right Riser (in x16) slot,
  • 1 PCIe 5.0 x32 Left Riser Slot,
  • 5 PCIe 5.0 x8 PCIe5.0 MCIO connector
M.2
  • M.2 Interface: 1 PCIe 3.0 x2
  • Form Factor: 2280/22110
  • Key: M-Key
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.4
  • SMBIOS 3.5 or later
  • UEFI 2.8
Management
Software
  • SuperDoctor® 5, SPM, SUM, SSM, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, Trusted Platform Module (TPM), Chasis Intrusion Detection
PC Health Monitoring
Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
FAN
  • 6x 4-pin fan headers (up to 6 fans)
  • Fan speed control
  • 6 fans with tachometer status monitoring
  • Overheat LED indication
Other Features
  • WOL, UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management

X13SEW-F


Parametry

M.2 slot1
Maximální frekvence paměti [MHz]4800
Podpora ECCANO
Typ pamětiDDR5
Počet CPU socketůSingle socket
Výrobce čipsetuIntel
FormátSpeciální
UrčeníServery
