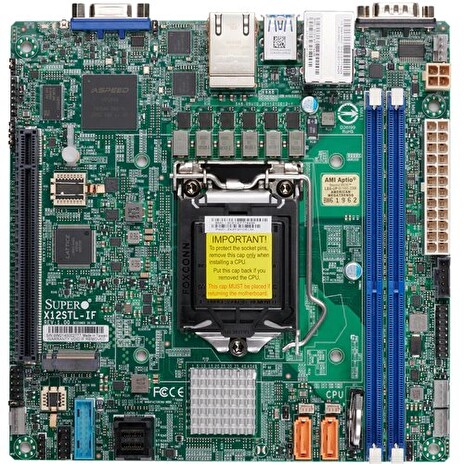

SUPERMICRO MB LGA1200 (Xeon E3-2300), C252, 2xDDR4, 6xSATA3, M.2, 1xPCIe4.0 x16, VGA, 2x LAN, IPMI, mini-ITX
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Byl jsem spokojený doporučuji

Ověřený zákazník

Supermicro MB LGA1200 (Xeon E3-2300), C252, 2xDDR4, 6xSATA3, M.2, 1xPCIe4.0 x16, VGA, 2x LAN, IPMI, mini-ITX

Key Features   Intel® Xeon®  E-2300 Processor, 10th Generation Intel® Pentium® Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP Intel® C252 Up to 64GB Unbuffered ECC UDIMM, DDR4-3200MHz, in 2 DIMM slots 1 PCI-E 4.0 x16 M.2 Interface:  1 PCI-E 3.0 x4 M.2 Form Factor:  2280 M.2 Key:  M-Key…
Kategorie: Základní desky Supermicro
Kód: 3246763PN: MBD-X12STL-IF-OVýrobce: SupermicroZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
8 699 Kč  včetně DPH
Cena bez DPH: 7 189 Kč
Běžná maloobchodní cena: 8 752 Kč
Nákup po telefonu
+420 587 407 456
Skladem
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 6.5. / ZDARMA!
Přepravní službou (ČR)9.5. / od 120 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.

Popis produktu

Key Features
  1.
  2. Intel® Xeon®  E-2300 Processor, 10th Generation Intel® Pentium® Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP
  3. Intel® C252
  4. Up to 64GB Unbuffered ECC UDIMM, DDR4-3200MHz, in 2 DIMM slots
  5. 1 PCI-E 4.0 x16
    M.2 Interface: 1 PCI-E 3.0 x4
    M.2 Form Factor: 2280
    M.2 Key: M-Key
  6. Dual LAN with Intel® i210 Gigabit Ethernet Controller
  7. Intel® C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  8. 1 VGA D-Sub Connector port
  9. 2 SuperDOM with built-in power
  10. 4x USB 3.2 Gen1 (2 rear, 2 via header), 4x USB 2.0 (2 rear, 2 via headers)



Specifications

Product SKUs

MBD-X12STL-IF
  • X12STL-IF


Physical Stats

Form Factor
  • Mini-ITX
Dimension
  • 6.7" x 6.7" (17.02cm x 17.02cm)


Processor

CPU
  • 10th Generation Intel® Pentium® Processor, Intel® Xeon®  E-2300 Processor
  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP
Core
  • Up to 8 cores


System Memory

Memory Capacity
  • 2 DIMM slots
  • Up to 64GB Unbuffered ECC UDIMM, DDR4-3200MHz
Memory Type
  • 3200/2933/2666MHz SDRAM
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors


On-Board Devices

Chipset
  • Intel® C252
SATA
  • Intel® C252 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Graphics
  • ASPEED AST2600 BMC
Network Controllers
  • Dual LAN with Intel® i210 Gigabit Ethernet Controller


Input / Output

SATA
  • 6 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 4 USB 2.0 port(s) (2 rear; 2 via header)
  • 4 USB 3.2 Gen1 port(s) (2 via header; 2 rear)
Video Output
  • 1 VGA D-Sub Connector port(s)
Serial Port
  • 1 COM Port(s) (1 rear)
DOM
  • 2 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header

Expansion Slots

PCI-E
  • 1 PCI-E 4.0 x16
M.2
  • M.2 Interface: 1 PCI-E 3.0 x4
  • Form Factor: 2280
  • Key: M-Key


System BIOS

BIOS Type
  • 256MB UEFI
BIOS Features
  • ACPI 6.0
  • SMBIOS 3.3
  • Plug and Play (PnP)
  • RTC (Real Time Clock) Wakeup
  • UEFI 2.7
  • USB Keyboard support
  • PCI 3.0


Management

Software
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management


PC Health Monitoring

Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 4 -fan status, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
FAN
  • 4x 4-pin fan headers (up to 4 fans)
  • Thermal control tachometer fan connectors
  • Fan speed control
  • 4 fans with tachometer monitoring
  • Overheat LED indication
Other Features
  • WOL
  • UID
  • M.2 NGFF connector
  • Dual Cooling Zones
  • CPU thermal trip support for processor protection
  • Control of power-on for recovery from AC power loss
  • Chassis intrusion detection
  • ACPI power management


Operating Environment

Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
  • -20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)

Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X12STL-IF 1 X12STL-IF Motherboard
I/O Cables CBL-0044L •  2 -
I/O Shield MCP-260-00042-0N •  1 -
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X12STL-IF 1 X12STL-IF Motherboard
I/O Cables CBL-0044L •  2 -
I/O Shield MCP-260-00042-0N •  1 -
QRG MNL-2368-QRG 1 -

Parametry

Integrovaný řadič SAS/SATANe
M.2 slot1
Maximální frekvence paměti [MHz]2666
PCI Express x161
Počet paměťových slotů2
Podpora ECCNE
Typ pamětiDDR4
Integrovaná grafická kartaANO
Čipová sadaIntel C242 Chipset
Patice (CPU Socket)LGA 1200 socket
Počet CPU socketůSingle socket
Výrobce čipsetuIntel
FormátmITX
HerníNE
UrčeníServery
