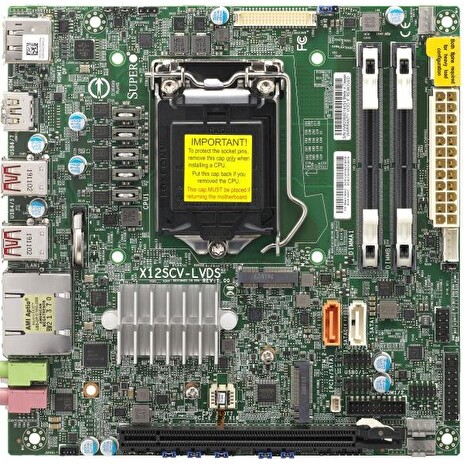

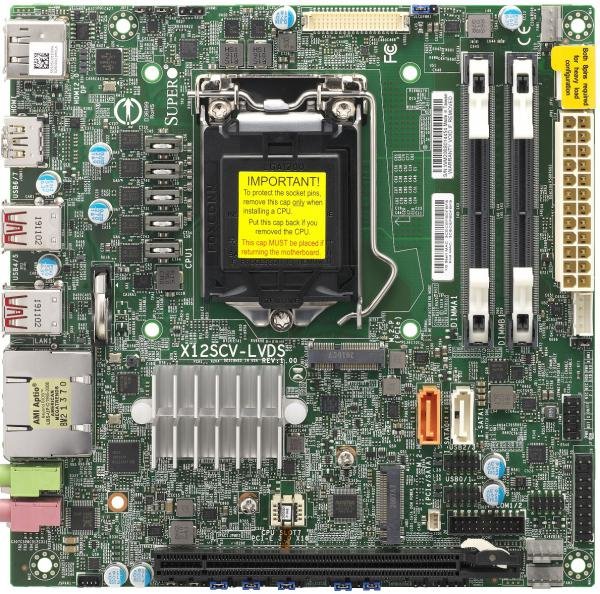

Supermicro MB LGA1200 (Core, Xeon), W480E,2xDDR4 SO-DIMM,2xSATA3,M.2, PCIe 3.0 x16,2xHDMI,DP,LVDS,Audio,2xLAN

Key Features

10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® W-1200 Processors
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 65W TDP
Intel® W480E
Up to 64GB DDR4 ECC/non-ECC SO-DIMM, DDR4-2933MHz, in 2 DIMM slots
1 PCI-E 3.0 x16 slots (16/NA or 8/8)
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280
1 M.2 E-Key CNVi/PCI-E 3.0 x1, 3042
2 HDMI ports, 1 DP (DisplayPort) port, 1 LVDS port,
3 Independent Displays thru HDMI 2.0a/HDMI1.4/DP/LVDS
Intel® W480E controller for 2 SATA3 (6 Gbps) ports; RAID 0,1
Single LAN with Intel® PHY I219LM LAN controller
Single LAN with Intel® Ethernet Controller I210-AT

Specifications
Product SKUs
MBD-X12SCV-LVDS
X12SCV-LVDS

Physical Stats
Form Factor
Mini-ITX
Dimensions
6.7" x 6.7" (17.02cm x 17.02cm)

Processor/Cache
CPU
10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processor, Intel® Xeon® W-1200 Processors
Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 65W TDP
Cores / Cache
Up to 10 cores
Note
** Motherboard supports this maximum TDP. Please verify your system can thermally support.

System Memory
Memory Capacity
Up to 64GB DDR4 ECC/non-ECC SO-DIMM, DDR4-2933MHz, in 2 DIMM slots
Memory Type
2933/2666/2400/2133MHz
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
Intel® W480E
SATA
Intel® W480E controller for 2 SATA3 (6 Gbps) ports; RAID 0,1
Network Controllers
Single LAN with Intel® PHY I219LM LAN controller
Single LAN with Intel® Ethernet Controller I210-AT
Audio
ALC 888S HD Audio
Graphics
Intel® HD Graphics
3 Independent Displays thru HDMI 2.0a/HDMI1.4/DP/LVDS

Input / Output
SATA
2 SATA3 (6Gbps) port
LAN
2 RJ45 Gigabit Ethernet LAN ports
USB
4 USB 2.0 ports (4 via headers)
4 USB 3.2 Gen2 ports (4 Rear Type A
Video Output
2 HDMI ports, 1 DP (DisplayPort) port, 1 LVDS port,
3 Independent Displays thru HDMI 2.0a/HDMI1.4/DP/LVDS
Serial Port / Header
, 2 COM ports via 1 header
TPM
TPM Header & Chip both
Expansion Slots
PCI-E
1 PCI-E 3.0 x16 slots (16/NA or 8/8)
M.2
1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280
1 M.2 E-Key CNVi/PCI-E 3.0 x1, 3042

System BIOS
BIOS Type
AMI UEFI
BIOS Features
ACPI 6.1
SMBIOS 3.1
PCI FW 3.0
UEFI 2.7
RTC (Real Time Clock) Wakeup

Management
Software
AMT, NMI, SuperDoctor® 5, vPro, Watchdog
System Management Software
SuperDoctor 5
Power Configurations
+12V DC Power Input
ATX Power connector
ACPI / ACPM Power Management

PC Health Monitoring
Voltage
+1.8V, +3.3V, 3 -fan status, Chipset Voltage, CPU temperature, HT, Monitors CPU voltages, PCH temperature, System level control, System temperature, VBAT
FAN
3x 4-pin fan headers (up to 3 fans), 3 fans with tachometer monitoring, Fan speed control, PWM fan speed control, System level control
Temperature
Thermal Control for 3 Fan Connectors
LED
Power LED
Other Features
12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, M.2 NGFF connector, RoHS, System level control, WOL

Operating Environment
Operating Temperature Range
0°C ~ 60°C (32°F ~ 140°F)
Non-Operating Temperature Range
-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range
10% ~ 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X12SCV-LVDS 1 X12SCV-LVDS Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00158-0N 1 X12SCV Standard I/O shield
QRG MNL-2319-QRG 1 Motherboard Quick Reference Guide
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X12SCV-LVDS 1 X12SCV-LVDS Motherboard
I/O Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00158-0N 1 X12SCV Standard I/O shield
Optional Parts List
Name Part Number Qty Description
Serial Port Cable for COM1 and COM2 CBL-CDAT-0604 -- Dual Serial Port Breakout Cable with Bracket 40cm
USB Cable CBL-CUSB-0983 -- USB2.0 cable 20cm
Serial Port Cable for COM1 and COM2 CBL-CUSB-0984 -- Dual Serial Port Breakout Cable 20cm
Chassis (Optimized for X12SCV-LVDS)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
 = Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Server (Optimized for X12SCV-LVDS)
Server Name
SYS-E300-12C
