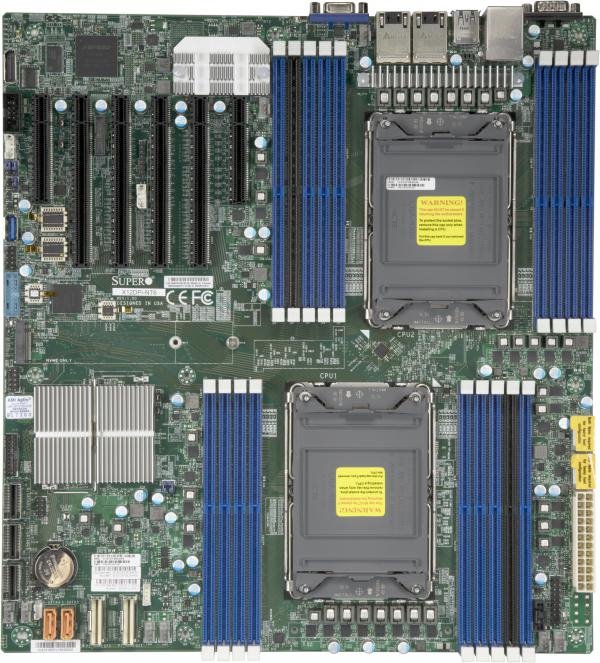

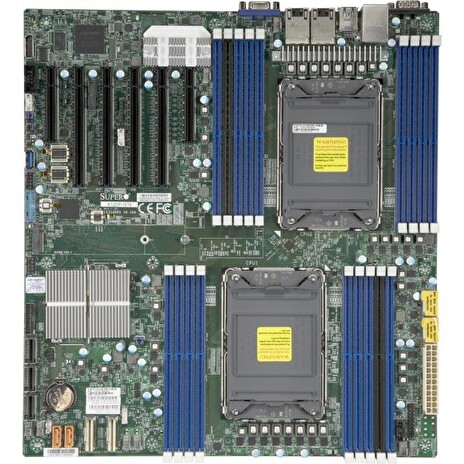

SUPERMICRO MB 2xLGA4189, iC621A, 18x DDR4 ECC, 4xNVMe, 14xSATA3, M.2, 6x PCIe4.0, 2x 1Gb LAN,IPMI, bulk
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Měli k dispozici zboží, které jinde již bylo nedostupné. Dále byl provozovatel flexibilní ohledně dopravy.

Ověřený zákazník

Supermicro MB 2xLGA4189, iC621A, 18x DDR4 ECC, 4xNVMe, 14xSATA3, M.2, 6x PCIe4.0, 2x 1Gb LAN,IPMI, bulk

3rd Gen Intel® Xeon® Scalable processors Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s Intel® C621A Up to 4TB RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slotsP1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane…
Kategorie: Základní desky Supermicro
Kód: 3326518PN: MBD-X12DPI-N6-BVýrobce: SupermicroZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
22 199 Kč  včetně DPH
Cena bez DPH: 18 346 Kč
Běžná maloobchodní cena: 23 804 Kč
Ušetříte 1 605 Kč (6,74 %)
Cena po registraci:
21 999 Kč
Cena bez DPH: 18 181 Kč
Nákup po telefonu
+420 587 407 456
Skladem

Popis produktu

  1. 3rd Gen Intel® Xeon® Scalable processors
    Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
  2. Intel® C621A
  3. Up to 4TB RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
    Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slotsP1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 series only.
  4. 2 PCI-E 4.0 x8, 4 PCI-E 4.0 x16,2 PCI-E 4.0 NVMe x8 Internal Port(s)
    M.2 Interface: 1 PCI-E 4.0 x4         M.2 Form Factor: 2280/22110     M.2 Key: M-Key
  5. Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  6. Dual LAN with 10GBase-T with Intel® X550
  7. 2 VGA (1 rear bezel, 1 front panel) ports
Specifications

Product SKUs

MBD-X12DPi-NT6
  • X12DPi-NT6


Physical Stats

Form Factor
  • E-ATX
Dimension
  • 12" x 13" (30.48cm x 33.02cm)


Processor

CPU
  • 3rd Gen Intel® Xeon® Scalable processors
  • Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
Core
  • Up to 40 cores


System Memory

Memory Capacity
  • 18 DIMM slots
  • Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz
  • Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB ECC RDIMM, DDR4-3200MHz
  • P1-DIMMB2 and P2-DIMMB2 are reserved for Intel Optane Persistent Memory 200 Series only.
Memory Type
  • 3200/2933/2666MHz ECC 3DS DDR4 LRDIMM, RDIMM
DIMM Sizes
  • LRDIMM: 256GB
  • RDIMM: 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset
  • Intel® C621A
SATA
  • Intel® C621A controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Network Controllers
  • Dual LAN with 10GBase-T with Intel® X550


Input / Output

SATA
  • 14 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 10 Gigabit Ethernet LAN ports
USB
  • 7 USB 3.2 Gen1 port(s) (2 via header; 4 rear; 1 type A)
  • 2 USB 2.0 port(s) (2 via header)
Video Output
  • 2 VGA (1 rear bezel, 1 front panel) port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
TPM
  • 1 TPM Header

Expansion Slots

PCI-E
  • 4 PCI-E 4.0 x16,
  • 2 PCI-E 4.0 x8
M.2
  • M.2 Interface: 1 PCI-E 4.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key


System BIOS

BIOS Type
  • AMI UEFI


Management

Software
  • SuperDoctor® 5, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support


PC Health Monitoring

Voltage
  • VBAT, System temperature, PCH temperature, Monitors CPU voltages, Memory temperature, CPU temperature, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, Memory Voltages, LAN temperature, 8 -fan status
LED
  • UID/Remote UID
  • Power LED
  • BMC/IPMI Heartbeat LED
FAN
  • 8x 4-pin fan headers (up to 8 fans)
  • PWM fan speed control
Other Features
  • WOL
  • UID
  • RoHS
  • Node Manager Support
  • Dual Cooling Zones
  • CPU thermal trip support for processor protection
  • Control of power-on for recovery from AC power loss
  • Chassis intrusion header
  • ATX Power connector
  • ACPI power management
  • SDDC
  • RoT
  • NCSI header


Operating Environment

Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X12DPi-NT6 1 X12DPi-NT6 Motherboard
CPU carrier SKT-1205L-P4IC-FXC 2 CPU carrier for 3rd Gen Intel Xeon Scalable Processors
I/O Cables CBL-0044L •  2 57.5 cm SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N •  1 STD I/O SHIELD
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X12DPi-NT6 1 X12DPi-NT6 Motherboard
CPU carrier SKT-1205L-P4IC-FXC 2 CPU carrier for 3rd Gen Intel Xeon Scalable Processors
I/O Cables CBL-0044L •
CBL-0476L • 		 2
1		 57.5 cm SATA FLAT S-S PBF
IPASS to 4 SATA cable
I/O Shield MCP-260-00042-0N •  1 STD I/O SHIELD
Quick Reference Guide MNL-2233-QRG 1 X12DPi-N(T)6 Quick Reference Guide
Optional Parts List
Name Part Number Qty Description
TPM security module (optional, not included) AOM-TPM-9671H
AOM-TPM-9671V
AOM-TPM-9670V
AOM-TPM-9670H		 1
1
1
1		 SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
Chassis (Optimized for X12DPi-NT6)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
     SC825BTQC-R1K23LPB
 SC826BAC12-R1K23LPB
 SC213BAC8-R1K23LPB
 2U Heatsink:SNK-P0078P (Rear)
 2U Heatsink:SNK-P0078PC (Front)
 SC825BTQC-R1K23LPB		      SC745BAC-R1K23B
 2U Heatsink:SNK-P0078P
 = Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU
Server (Optimized for X12DPi-NT6)
Server Name
SYS-220P-C9RT
SYS-620P-TRT
SYS-740P-TRT
SSG-620P-ACR12H
SSG-620P-ACR12L
SSG-620P-ACR16H
SSG-620P-ACR16L
SSG-640P-E1CR24L
SSG-640P-E1CR24H
SSG-640P-E1CR36L
SSG-640P-E1CR36H

Parametry

Integrovaný řadič SAS/SATANe
M.2 slot1
Maximální frekvence paměti [MHz]2933
PCI Express x41
PCI Express x86
Počet paměťových slotů8
Podpora ECCANO
Typ pamětiDDR4
Integrovaná grafická kartaANO
Čipová sadaIntel C621
Patice (CPU Socket)P (3647) socket
Počet CPU socketůSingle socket
Výrobce čipsetuIntel
FormátATX
HerníNE
UrčeníServery
