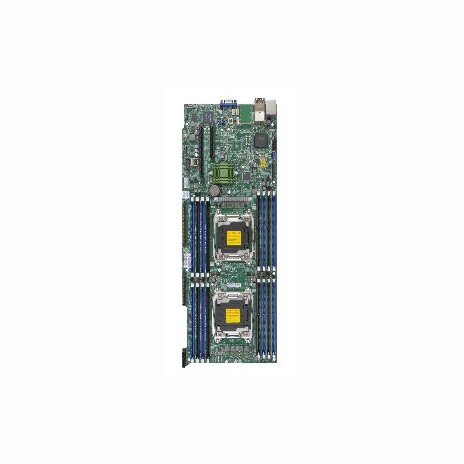

SUPERMICRO MB 2xLGA2011-3, iC612 16x DDR4 ECC,10xSATA3,(PCI-E 3.0/2,2(x16,x8),2x LAN,IPMI
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Rychlé a bezproblémové doručení

Ověřený zákazník

Supermicro MB 2xLGA2011-3, iC612 16x DDR4 ECC,10xSATA3,(PCI-E 3.0/2,2(x16,x8),2x LAN,IPMI

Product SKUs MBD-X10DRT-P X10DRT-P Physical Stats Form Factor Proprietary Twin Dimensions 6.8" x 18.86" (17.27cm x 47.9cm) Processor/Cache CPU Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4. Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W Cores / Cache Up to 22 cores † / Up to 55MB† cache…
Kód: 3161878PN: MBD-X10DRT-P-OVýrobce: SupermicroZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
15 999   včetně DPH
Cena bez DPH: 13 222 Kč
Běžná maloobchodní cena: 16 725 Kč
Ušetříte 726 Kč (4,34 %)
Cena po registraci:
15 899 Kč
Cena bez DPH: 13 140 Kč
Nákup po telefonu
+420 587 407 456
Skladem
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 28.6. / ZDARMA!
Přepravní službou (ČR)30.6. / od 120 Kč
Na výdejním místě (ČR)1.7. / od 120 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.

Popis produktu

Product SKUs

MBD-X10DRT-P X10DRT-P



Physical Stats

Form Factor Proprietary Twin

Dimensions 6.8" x 18.86" (17.27cm x 47.9cm)



Processor/Cache

CPU Intel® Xeon® processor E5-2600 v3, Intel® Xeon® processor E5-2600 v4.
Dual Socket R3 (LGA 2011) supported, CPU TDP support Up to 145W

Cores / Cache Up to 22 cores † / Up to 55MB† cache

Note † BIOS version 2.0 or above is required

Note ** Motherboard supports this maximum TDP. Please verify your system can thermally support.



System Memory

Memory Capacity 2TB 3DS ECC RDIMM, DDR4-2133MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots

Memory Type 2400?/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit

DIMM Sizes RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB
LRDIMM: 32GB, 64GB
3DS LRDIMM: 128GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors



On-Board Devices

Chipset Intel® C612

SATA Intel® C612 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

AHCI SATA SATA3 (6Gbps); RAID 0, 1, 5, 10

SCU SATA SATA3 (6Gbps); RAID 0, 1, 5, 10

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC

Network Controllers Dual LAN with Intel® Ethernet Controller I350-AM2
Single LAN with Virtual Machine Device Queues reduce I/O overhead
Single LAN with Supports 10Base-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Single LAN with 1 Realtek RTL8211E PHY (dedicated IPMI)

Graphics Aspeed AST2400 BMC



Input / Output

SATA 10 SATA3 (6Gbps) port

LAN 2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port

USB 3 USB 3.0 ports (2 rear + 1 Type A)

Video Output 1 VGA port

TPM 1 TPM Header







Expansion Slots

PCI-E 1 PCI-E 3.0 x16,
1 PCI-E 3.0 x8,
1 PCI-E 3.0 x8 connector for SMC add-on cards,
1 PCI-E 3.0 x16 connector for SMC add-on cards,
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram for details.)




System BIOS

BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS

BIOS Features Plug and Play (PnP)
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1



Management

Software IPMI2.0, NMI, SuperDoctor® 5, Watchdog

System Management Software SPM
SUM
SSM
SuperDoctor 5

Power Configurations ACPI Power Management
Power-on mode for AC power recovery



PC Health Monitoring

Voltage +12V, +3.3V, +5V, 3.3V standby, 6 Phase-switching voltage regulator, Memory Voltages, VBAT

FAN 2x 4-pin fan headers (up to 2 fans), 4 fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control

Temperature Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Control for 4 Fan Connectors (2 fans on backplane), Thermal Monitor 2 (TM2) support, PECI

LED CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID

Other Features RoHS



Operating Environment

Operating Temperature Range 10°C - 35°C (50°F - 95°F)

Non-Operating Temperature Range -40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range 8% - 90% (non-condensing)

Non-Operating Relative Humidity Range 5% - 95% (non-condensing)
