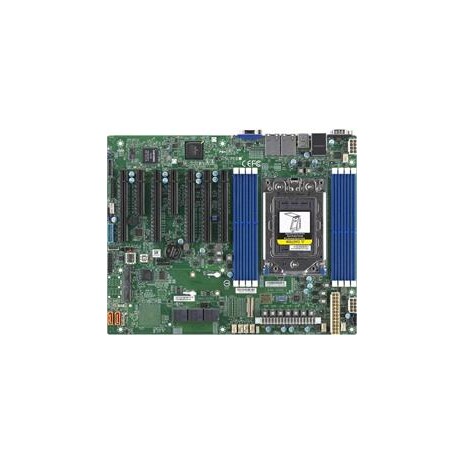

SUPERMICRO MB 1xSP3 (Epyc 7002 SoC), 8x DDR4, 16x SATA3 nebo 8x SATA+2x NVMe, 2x M.2, PCIe 4.0 (5 x16, 2 x8), 2x1Gb,IPMI
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Obchod mohu doporučit, byli ochotni doplnit i specifikace, které nemají na stránkách. Doporučuji se zeptat na možnost prodloužení záruky, není u všech produktů uvedena.

Ověřený zákazník

Supermicro MB 1xSP3 (Epyc 7002 SoC), 8x DDR4, 16x SATA3 nebo 8x SATA+2x NVMe, 2x M.2, PCIe 4.0 (5 x16, 2 x8), 2x1Gb,IPMI

Key Features  1. Single AMD EPYC™ 7002 Series Processor  2. 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs  3. Expansion slots:  5 PCI-E 4.0 x16  2 PCI-E 4.0 x8  M.2 Interface: 2 PCI-E 4.0 x4  M.2 Form Factor: 2280, 22110  M.2 Key: M-key  4. 8 SATA3, 2 M.2, 8 SATA3 or 2 NVMe via single SlimSAS x8  5. 2 Gigabit Ethernet LAN Ports  6. ASPEED AST2500 BMC…
Kategorie: Základní desky Supermicro
Kód: 2816217PN: MBD-H12SSL-I-OVýrobce: SupermicroZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
14 799 Kč  včetně DPH
Cena bez DPH: 12 231 Kč
Běžná maloobchodní cena: 15 732 Kč
Nákup po telefonu
+420 587 407 456
Skladem

Popis produktu

Key Features

 1. Single AMD EPYC™ 7002 Series Processor
 2. 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
 3. Expansion slots:  5 PCI-E 4.0 x16  2 PCI-E 4.0 x8  M.2 Interface: 2 PCI-E 4.0 x4  M.2 Form Factor: 2280, 22110  M.2 Key: M-key
 4. 8 SATA3, 2 M.2, 8 SATA3 or 2 NVMe via single SlimSAS x8
 5. 2 Gigabit Ethernet LAN Ports
 6. ASPEED AST2500 BMC graphics
 7. Up to 6 USB 3.0 ports  (4 rear + 2 via header)
 8. 7 PWM 4-pin Fans with tachometer status monitoring

Specifications

Product SKUs

MBD-H12SSL-i
  • H12SSL-i
MBD-H12SSL-i-O
  • H12SSL-i (Retail Pack)

Physical Stats

Form Factor
  • ATX
Dimensions
  • 12" x 9.6" (30.5cm x 24.4cm)

Processor/Chipset

CPU
  • Single AMD EPYC™ 7002 series Processor
  • Socket SP3
Cores
  • Up to 64 Cores
Chipset
  • System on Chip

System Memory

Memory Capacity
  • 8 DIMM slots
  • Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM
  • 8-channel memory bus
Memory Type
  • DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices

SATA
  • SATA3 (6 Gbps)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2500 BMC
Network Controllers
  • Dual gigabit LAN via Broadcom BCM5720
  • 1 Realtek RTL8211F PHY (dedicated IPMI)
VGA
  • ASPEED AST2500 BMC

Input / Output

SATA
  • 8 SATA3 (6 Gbps) ports
SATA/NVMe Hybrid
  • 8 SATA3 or 2 NVMe via single SlimSAS x8
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 6 USB 3.0 ports
    (4 rear + 2 via header)
VGA
  • 1 VGA port
Others
  • 1 COM port (rear)
  • 2 SATA DOM power connectors
  • 1 TPM 2.0 header

Expansion Slots

PCI-Express
  • 5 PCI-E 4.0 x16
  • 2 PCI-E 4.0 x8

M.2
  • Interface: 2 PCI-E 4.0 x4
  • Form factor: 2280, 22110
  • Key: M-key

System BIOS

BIOS Type
  • AMI 256Mb SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 5.1
  • USB Keyboard Support
  • SMBIOS 3.1.1

Management

Software
Power Configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery

PC Health Monitoring

CPU
  • Monitors CPU Core Voltages, +3.3V, +5V, +5V standby, +3.3V standby
  • CPU switching voltage regulator
  • Supports system management utility
  • VBAT
FAN
  • Up to 7-fan status tachometer monitoring
  • Up to 7 4-pin fan headers
  • Dual Cooling Zone
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU Thermal Trip Support
  • Thermal control for 7x Fan connectors
  • I²C Temperature Sensing Logic
LED
  • CPU / System Overheat LED
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
  • UID

Operating Environment / Compliance

Environmental Specifications
  • Operating Temperature:
    10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:
    -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
    8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
    5% to 95% (non-condensing)
Parts List

Bulk Pack List

  Part Number Qty Description
H12SSL-i MBD-H12SSL-i-B 1 H12SSL-i Motherboard
I/O Cable CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N 1 STD I/O SHIELD FOR X9 SOCKET R SERVER MB

Retail Pack List

  Part Number Qty Description
H12SSL-i MBD-H12SSL-i-O 1 H12SSL-i Motherboard
I/O Cable CBL-0044L 6 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00042-0N 1 STD I/O SHIELD FOR X9 SOCKET R SERVER MB

Optional Parts List

  Part Number Qty Description
I/O Cable CBL-SAST-0699 - MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG,Ro
TPM security module AOM-TPM-9655V - TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF;
AOM-TPM-9655V-S - TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF; Provisioned for TXT
AOM-TPM-9665V - TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF;
AOM-TPM-9665V-S - TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF; Provisioned for TXT

Parametry

Integrovaný řadič SAS/SATANe
M.2 slot2
Maximální frekvence paměti [MHz]3200
PCI Express x163
PCI Express x83
Počet paměťových slotů8
Podpora ECCANO
Typ pamětiDDR4
Integrovaná grafická kartaANO
Čipová sadaSystem on Chip
Patice (CPU Socket)SP3 socket
Počet CPU socketůSingle socket
Výrobce čipsetuAMD
FormátATX
HerníNE
UrčeníServery
