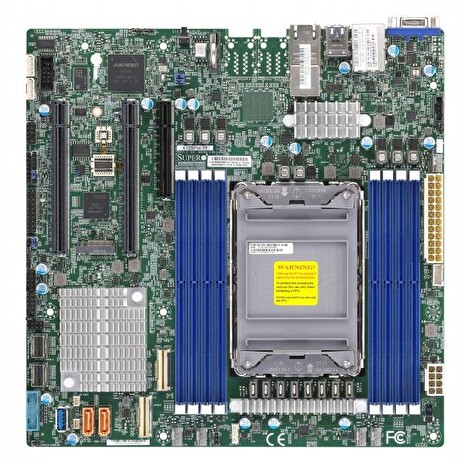

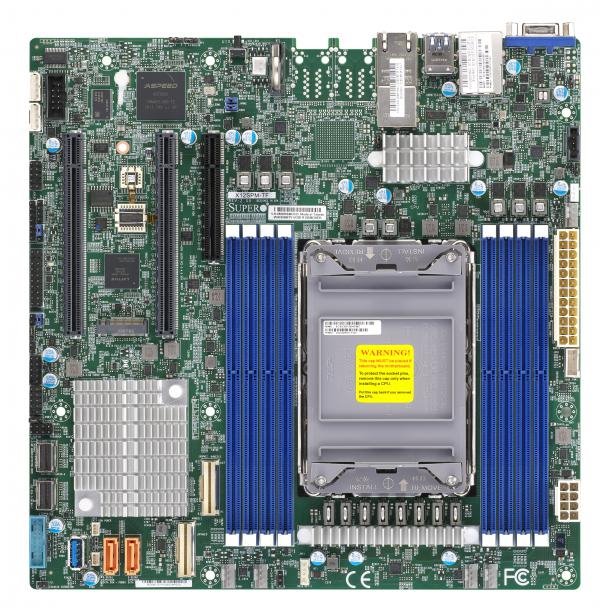

Supermicro MB 1xLGA4189, iC621A, 8x DDR4 ECC, 4xNVMe, 10xSATA3, M.2, 3x PCIe4.0, 2x 10Gb LAN,IPMI

Product SKUs

MBD-X12SPM-TF X12SPM-TF



Physical Stats

Form Factor microATX

Dimensions 9.6" x 9.6" (24.38cm x 24.38cm)



Processor/Cache

CPU 3rd Gen Intel® Xeon® Scalable processors
Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

Cores / Cache Up to 40 cores



System Memory

Memory Capacity Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots

Memory Type N/A

DIMM Sizes RDIMM: 8GB, 16GB, 32GB, 64GB
LRDIMM: 64GB, 128GB
3DS LRDIMM: 128GB, 256GB

Memory Voltage 1.2V

Error Detection Corrects single-bit errors



On-Board Devices

Chipset Intel® C621A

SATA Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI ASPEED AST2600 BMC

Network Controllers Dual LAN with 10GBase-T with Intel® X550

Graphics ASPEED AST2600 BMC



Input / Output

SATA 10 SATA3 (6Gbps) port

LAN 2 RJ45 10GBase-T ports

USB 6 USB 2.0 ports (2 rear + 4 via headers)
5 USB 3.2 Gen1 ports (2 rear + 2 via headers + 1 Type A)

Video Output 1 VGA port

Serial Port / Header 1 COM Port (1 header)


TPM TPM Header







Expansion Slots

PCI-E 1 PCI-E 4.0 x8,
2 PCI-E 4.0 x16

M.2 M.2 Interface: 1 SATA/PCI-E 3.0 x4
Form Factor: 2280, 22110
Key: M-Key



System BIOS

BIOS Type AMI UEFI

BIOS Features ACPI 6.0
RTC (Real Time Clock) Wakeup
SMBIOS 3.0 or later



Management

Software Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SUM, SuperDoctor® 5, Watchdog

Power Configurations ACPI Power Management
Power-on mode for AC power recovery



PC Health Monitoring

Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 5 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, VBAT

Temperature CPU thermal trip support, PECI

LED CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED

Other Features ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, UID, WOL



Operating Environment

Operating Temperature Range 0°C ~ 60°C (32°F ~ 140°F)

Non-Operating Temperature Range -20°C ~ 60°C (-4°F ~ 140°F)

Operating Relative Humidity Range 10% ~ 85% (non-condensing)

Non-Operating Relative Humidity Range 10% ~ 95% (non-condensing)
