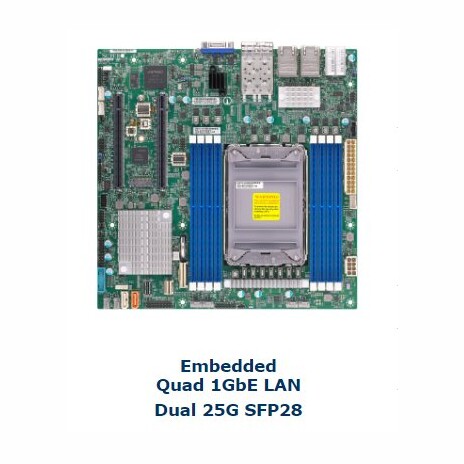

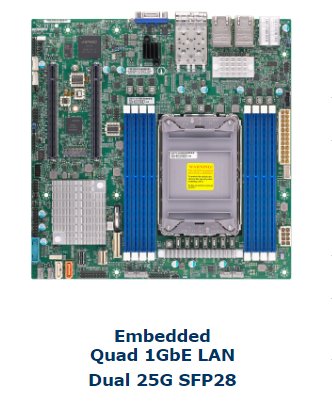

SUPERMICRO MB 1xLGA4189, iC621A, 8x DDR4 ECC, 3xNVMe, 1xNVMe/4xSATA3, M.2, 2x PCIe4.0 x16, 2x 25Gb + 4x 1Gb LAN,IPMI
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

výborná obsluha která vždy poradí ,a zboží je dodáno vždy v čas doporučuji

Ověřený zákazník

Supermicro MB 1xLGA4189, iC621A, 8x DDR4 ECC, 3xNVMe, 1xNVMe/4xSATA3, M.2, 2x PCIe4.0 x16, 2x 25Gb + 4x 1Gb LAN,IPMI

Key Features   3rd Gen Intel® Xeon® Scalable Processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP Intel® C621A Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 2TB Intel® Optane? Persistent Memory 200 Series, in 8 DIMM slots 2 PCI-E 4.0 x16 1 PCI-E 4.0 NVMe x8…
Kategorie: Základní desky Supermicro
Kód: 3161916PN: MBD-X12SPZ-SPLN6F-OVýrobce: SupermicroZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
21 099 Kč  včetně DPH
Cena bez DPH: 17 437 Kč
Běžná maloobchodní cena: 22 604 Kč
Ušetříte 1 505 Kč (6,66 %)
Cena po registraci:
19 894 Kč
Cena bez DPH: 16 441 Kč
Nákup po telefonu
+420 587 407 456
Skladem
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 5.5. / ZDARMA!
Přepravní službou (ČR)7.5. / od 120 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.

Popis produktu

Key Features
  1.
  2. 3rd Gen Intel® Xeon® Scalable Processors, Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
  3. Intel® C621A
  4. Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz Up to 2TB Intel® Optane? Persistent Memory 200 Series, in 8 DIMM slots
  5. 2 PCI-E 4.0 x16
  6. 1 PCI-E 4.0 NVMe x8 SlimSAS Internal Port
    1 PCI-E 4.0 NVMe x4 SlimSAS Internal Port
  7. 1 OCuLink Connector (4 SATA/PCI-E 3.0 x4)
    1 M.2 M-Key 2242/2280 (SATA/PCI-E 3.0 x4)
  8. Quad 1G RJ45 with Intel® I350-AM4
    Dual 25G SFP28 with Broadcom BCM57414
  9. 4 USB 3.2 Gen 1 (2 Rear, 2 via Header),
    4 USB 2.0 (Headers)
  10. Supports 12V DC power input
Specifications

Product SKUs

MBD-X12SPZ-SPLN6F
  • X12SPZ-SPLN6F

Physical Stats

Form Factor
  • Micro-ATX
Dimensions
  • 9.6" x 9.6" (24.38cm x 24.38cm)

Processor/Cache

CPU
  • 3rd Gen Intel® Xeon® Scalable processors
  • Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Cores / Cache
  • Up to 40 cores

System Memory

Memory Capacity
  • Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz
  • Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 8 DIMM slots
Memory Type
  • 3200/2933/2666MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
  • 8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices

Chipset
  • Intel® C621A
SATA
  • Intel® C621A controller for 6 SATA3 (6 Gbps) ports;
  • 4 SATA ports via OCuLink; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Network Controllers
  • Quad LAN with 1GbE with Intel® I350-AM4
    Dual LAN with Broadcom BCM57414 25G SFP28

Input / Output

LAN
  • 4 RJ45 Gigabit Ethernet LAN ports
  • 2 SFP28 25 Gigabit Ethernet LAN ports
USB
  • 4 USB 2.0 ports (4 via headers)
  • 4 USB 3.2 Gen1 ports (2 rear + 2 via headers)
Video Output
  • 1 VGA port
Serial Port / Header
  • 1 COM Port (1 header)
TPM
  • TPM Header & Chip both
Expansion Slots

PCI-E
  • 2 PCI-E 4.0 x16
M.2
  • 1 M.2 M-Key SATA/PCI-E 3.0 x4, 2242/2280

System BIOS

BIOS Type
  • 256Mb SPI Flash with AMI BIOS
BIOS Features
  • ACPI 6.2
  • UEFI 2.8
  • SMBIOS 2.8
  • SMBIOS 3.3 or later
  • Plug and Play (PnP)
  • PCI FW 3.0

Management

Software
  • Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • +12V DC Power Input
  • ACPI Power Management
  • ATX Power connector
  • M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL

PC Health Monitoring

Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, 3.3V standby, 6 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, VBAT
Temperature
  • CPU thermal trip support
LED
  • Power LED, UID/Remote UID
Other Features
  • 12V DC or ATX Power Source, ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, Node Manager Support, RoHS

Operating Environment

Operating Temperature Range
  • 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range
  • 10% ~ 95% (non-condensing)
Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X12SPZ-SPLN6F 1 X12SPZ-SPLN6F Motherboard
SATA Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00154-0N 1 Standard I/O Shield for X12SPZ
CPU Retention Module SKT-1205L-P4IC-FXC 1 Socket P4 LGA4189 Carrier

Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X12SPZ-SPLN6F 1 X12SPZ-SPLN6F Motherboard
SATA Cables CBL-0044L 2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00154-0N 1 Standard I/O Shield for X12SPZ
QRG MNL-2291-QRG 1 Motherboard Quick Reference Guide
CPU Retention Module SKT-1205L-P4IC-FXC 1 Socket P4 LGA4189 Carrier

Optional Parts List
Name Part Number Qty Description
1U I/O Shield MCP-260-00155-0N -- Standard 1U I/O Shield with EMI Gasket
TPM security module AOM-TPM-9670V -- SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
TPM security module AOM-TPM-9671V -- SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
x8 SlimSAS to 2x U.2 Cable CBL-SAST-0953-1 -- 55CM Slimline x8 to PCIe 2x SFF-8639
x4 SlimSAS to U.2 Cable CBL-SAST-1240A-85 -- 40CM Slimline x4 to PCIe SFF-8639
OCuLink to U.2 Cable CBL-SAST-0956 -- 55CM OCuLink to U.2 Cable with Molex Power Header
OCuLink to 4x SATA Cable CBL-SAST-0933 -- 50CM OCuLink to 4x SATA Cable

Chassis (Optimized for

X12SPZ-SPLN6F

)
Embedded Compact 1U 2U 3U Mid/Mini-Tower             4U/Tower
   SC515M-R804
 SC113MFAC2-605CB

 = Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU

Parametry

Integrovaný řadič SAS/SATANe
M.2 slot1
Maximální frekvence paměti [MHz]2933
PCI Express x41
PCI Express x86
Počet paměťových slotů8
Podpora ECCANO
Typ pamětiDDR4
Integrovaná grafická kartaANO
Čipová sadaIntel C621
Patice (CPU Socket)P (3647) socket
Počet CPU socketůSingle socket
Výrobce čipsetuIntel
FormátATX
HerníNE
UrčeníServery
