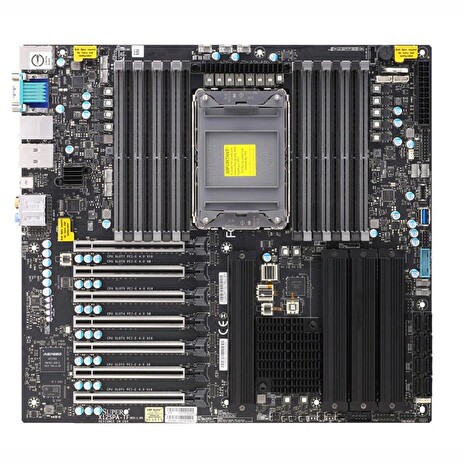

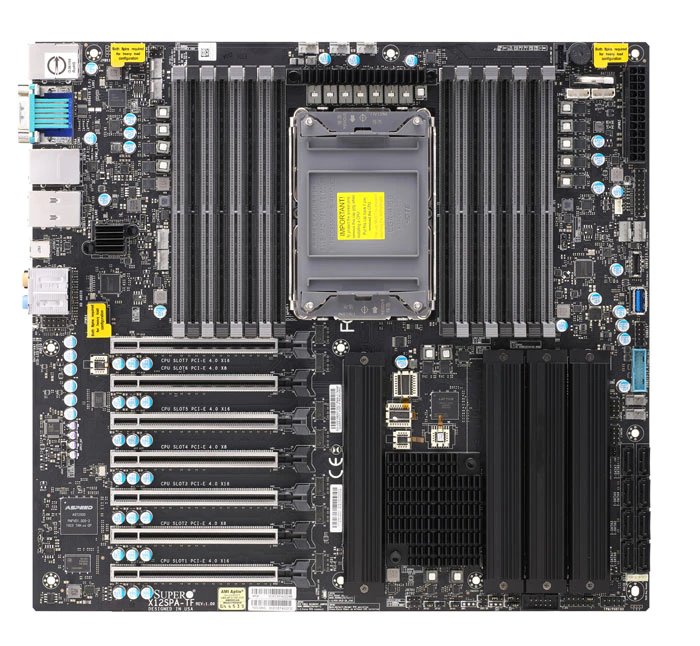

Supermicro MB 1xLGA4189, iC621A, 16x DDR4 ECC, 10xSATA3, 4x M.2, 7x PCIe4.0, 10Gb + 1Gb LAN,IPMI

Product SKUs

MBD-X12SPA-TF X12SPA-TF



Physical Stats

Form Factor E-ATX

Dimensions 13" x 12" (33.02cm x 30.48cm)



Processor/Cache

CPU 3rd Gen Intel® Xeon® Scalable processors
Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP

Cores / Cache Up to 40 cores



System Memory

Memory Capacity Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 16 DIMM slots

Memory Type N/A

DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB, 128GB

Memory Voltage 1.2V



On-Board Devices

Chipset Intel® C621A

SATA Intel® C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10

IPMI ASPEED AST2500

Network Controllers Single LAN with Intel® Ethernet Controller I210-AT
Single LAN with Marvell AQC113
Single LAN with Realtek RTL8211F PHY (dedicated IPMI)

Audio ALC 888S HD Audio

Graphics ASPEED AST2500 BMC
VGA connector is dedicated for IPMI.



Input / Output

LAN 1 RJ45 Gigabit Ethernet LAN ports
1 RJ45 10GBase-T ports
1 RJ45 Dedicated IPMI LAN port

USB 4 USB 2.0 ports (2 rear + 2 via headers)
6 USB 3.2 Gen1 ports (4 rear + 2 via headers)
2 USB 3.2 Gen2 ports (1 Type A, 1 Type C)
1 USB 3.2 Gen2x2 ports (1 Type C)

Video Output 1 VGA port,
VGA connector is dedicated for IPMI.

Serial Port / Header 2 COM Ports (1 rear, 1 header)


TPM 1 TPM Header







Expansion Slots

PCI-E 4 PCI-E 4.0 x16,
3 PCI-E 4.0 x8 (in x16 slot)

M.2 M.2 Interface: 4 PCI-E 4.0 x4
Form Factor: 2260/2280/22110
Key: M-Key
M.2 support to RAID 0,1, 5, 10, VROC key is required for RAID.



System BIOS

BIOS Type 256Mb SPI Flash with AMI BIOS

BIOS Features ACPI 3.0 / 4.0
SMBIOS 2.7
PCI FW 3.0
RTC (Real Time Clock) Wakeup



Management

Software IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SPM, SUM, SuperDoctor® 5, Watchdog

System Management Software IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
SuperDoctor 5

Power Configurations ACPI Power Management
Main Switch Override Mechanism
Power-on mode for AC power recovery
CPU thermal trip support for processor protection



PC Health Monitoring

Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT

Temperature CPU thermal trip support, Monitoring for CPU and chassis environment, PECI

LED CPU / System Overheat LED, Suspend static indicator LED

Other Features N/A



Operating Environment

Operating Temperature Range 0°C ~ 50°C (32°F ~ 122°F)
