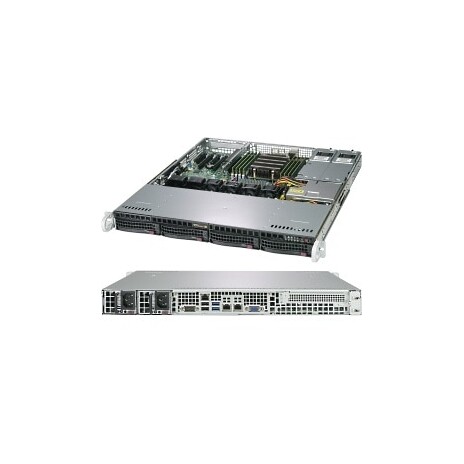

Supermicro A+ Server MTR/1U Epyc 7000-Series CPU, 2x 1GbE,Intel I210, 4x HS 3.5'' SATA3 , 4 SAS3 ports, 400W Redundant P
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Pro kup těchto sluchátek jsem se rozhodla na základě kladných recenzí. Jsem naprosto spokojená, jelikož jako dárek zapůsobila excelentně. Mezi "zlatou střední cestou" =…

Ověřený zákazník

Supermicro A+ Server MTR/1U Epyc 7000-Series CPU, 2x 1GbE,Intel I210, 4x HS 3.5'' SATA3 , 4 SAS3 ports, 400W Redundant P

Product SKUs AS -1013S-MTR A+ Server 1013S-MTR Motherboard H11SSL-i Processor/Chipset CPU Single AMD EPYC™ 7001/7002* series Processor (*Board revision 2.x required) Socket SP3 Supports CPU TDP 225W / cTDP up to 240W* Cores Up to 32 Cores (Board revision 1.x + 7001 Processors) Up to 64 Cores (Board revision 2.x + 7002 Processors)…
Kód: 3243060PN: AS -1013S-MTRVýrobce: SupermicroZáruka: 6 měsíců
Výrobek pochází z oficiální české distribuce.Více informací…
30 799   včetně DPH
Cena bez DPH: 25 454 Kč
Běžná maloobchodní cena: 33 022 Kč
Ušetříte 2 223 Kč (6,73 %)
Cena po registraci:
30 499 Kč
Cena bez DPH: 25 206 Kč
Nákup po telefonu
+420 587 407 456
Skladem
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 21.9. / ZDARMA!
Přepravní službou (ČR)23.9. / od 120 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.
Toto zboží je možné koupit pouze na IČ.

Popis produktu

Product SKUs

AS -1013S-MTR A+ Server 1013S-MTR



Motherboard

H11SSL-i


Processor/Chipset

CPU Single AMD EPYC™ 7001/7002* series Processor (*Board revision 2.x required)
Socket SP3
Supports CPU TDP 225W / cTDP up to 240W*

Cores Up to 32 Cores (Board revision 1.x + 7001 Processors)
Up to 64 Cores (Board revision 2.x + 7002 Processors)

Chipset System on Chip (SoC)



System Memory

Memory Capacity 8 DIMM slots
Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors)
Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors)
8-channel memory bus

Memory Type DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors)

DIMM Sizes 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*
(* Board revision 2.x required + 7002 Processors)

Memory Voltage 1.2V

Error Detection Corrects single-bit errors
Detects double-bit errors (using ECC memory)



On-Board Devices

SATA SATA3 (6 Gbps)

IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2500 BMC

Network Controllers Intel® I210 Controller

VGA ASPEED AST2500 BMC



Expansion Slots

PCI Express 1 PCI-E 3.0 x16 (FH/HL) slot

M.2 Interface: PCI-E 3.0 x4 (NVMe based)

Form Factor: 2280, 22110

Key: Onbard M-key
Number of M.2: Single



Input / Output

SATA 4 SATA3 (6 Gbps) ports

LAN 2x 1GbE LAN ports
1 RJ45 Dedicated IPMI LAN port

USB 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A)
4 USB 2.0 ports (2 rear, 2 via header)

VGA 1 VGA port

Others 1 COM port (rear)
2 SATA DOM power connector
TPM 1.2 header



System BIOS

BIOS Type AMI 128Mb SPI Flash EEPROM

BIOS Features Plug and Play (PnP)
DMI 2.3
PCI 2.2
ACPI 5.1
USB Keyboard Support
SMBIOS 3.1.1







Chassis

Form Factor 1U

Model CSE-813MFTQC-R407CB



Dimensions

Height 1.7" (43mm)

Width 17.2" (437mm)

Depth 19.85" (503mm)

Weight Net Weight: 20 lbs (9.1 kg)
Gross Weight: 33 lbs (15.0 kg)



Front Panel

Buttons Power On/Off button
System Reset button

LEDs Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED / Fan fail LED /
UID LED



Drive Bays

Hot-swap 4 hot-swap 3.5" SATA3 drive bays



Peripheral Drives

Optional Optional 2.5" drive adapter
Optional slim DVD drive



Backplane

HDD Backplane Supports 4 SATA3 3.5" HDD



System Cooling

Fans 4x 40x28mm 4-pin PWM Cooling Fans

Air Shroud 1 Air Shroud



AC/DC240V Input Redundant Power Supplies
400W 1U Redundant Power Supplies with PMbus
Total Output Power 400W

Dimension
(W x H x L) 54.5 x 40 x 220 mm

Input 100 - 240Vac / 6.0 - 3.0A / 50-60Hz
200 - 240Vdc / 3.4 - 3.2A (CCC Only)

+12V Max: 33A / Min: 0.5A

+5V sb Max: 3A / Min: 0A

Output Type Gold Finger Connector Mating with Molex 45984-4343

Certification Platinum Level Certified
Platinum Level Certified
[ Test Report ]


PC Health Monitoring

CPU Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT
CPU switching voltage regulator

FAN Up to 8-fan status tachometer monitoring
Up to eight 4-pin fan headers
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors

Temperature Monitoring for CPU and chassis environment
CPU Thermal Trip Support
Thermal control for 8x Fan connectors
I2C Temperature Sensing Logic

LED CPU / System Overheat LED

Other Features Chassis Intrusion Detection
Chassis Intrusion Header



Operating Environment / Compliance

RoHS
RoHS Compliant

Environmental Spec. Operating Temperature:
10°C to 35°C (50°F to 95°F)
Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
