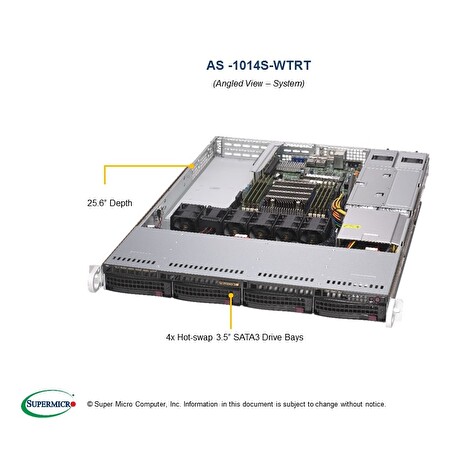

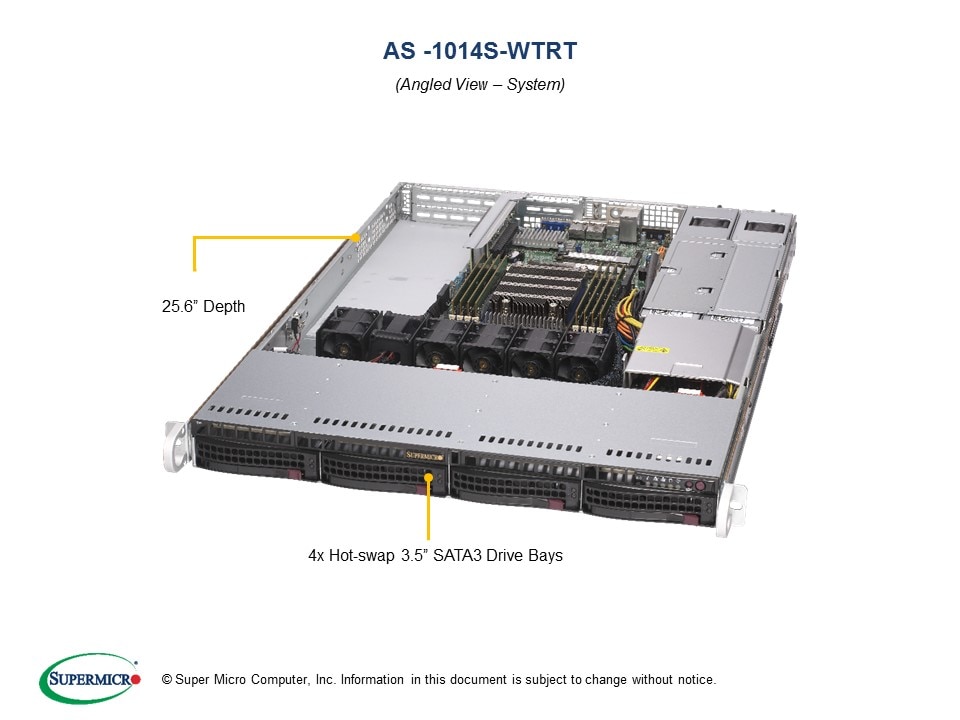

Supermicro A+ Server 1U 1x SP3, 8x DDR4, 4x 3,5" (4xNVMe opt.), 2x500W(plat), 2x10GbE, IPMI

Key Features
 DB Processing & Storage
 Data Center Applications
 Firewall Applications

1. Single AMD EPYC™ 7002 Series Processor

2. 8 DIMMs; up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM

3. 2 PCI-E 4.0 x16 (FHFL) slots, 1 PCI-E 4.0* x16 (LP) slot

4. Integrated IPMI 2.0 + KVM with? dedicated LAN   • Software Out of Band License key (SFT-OOB-LIC) included for OOB BIOS management

5. 4 Hot-swap 3.5" SATA3 drive bays, Optional 4 U.2 NVMe (PCI-E 3.0) drive support w/ additional NVMe cables

6. 2x 10GBase-T LAN ports via Broadcom BCM57416 Controller

7. 1 VGA, 5 USB 3.0 (4 rear, 1 Type A)

8. 2 SuperDOM (Disk on Module) ports

9. 500W Redundant Power Supplies Platinum Level High-efficiency (Full redundancy based on configuration and application load)



Specifications

Product SKUs   AS -1014S-WTRT A+ Server 1014S-WTRT (Black)   Motherboard   Super H12SSW-NT   Processor/Cache   CPU Single AMD EPYC™ 7002 Series Processor Socket SP3 Support CPU TDP up to 240W Cores Up to 64 Cores   System Memory   Memory Capacity 8 DIMM slots Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM Memory Type DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs   On-Board Devices   Chipset System on Chip SATA SATA3 (6Gbps) Network Controllers Dual 10GBase-T LAN with via Broadcom BCM57416 IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Video ASPEED AST2500 BMC   Input / Output   SATA 2 SATA3 (6 Gbps) ports LAN 2 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port USB 5 USB 3.0 ports (4 rear, 1 Type A) Video 1 VGA port DOM 2 SuperDOM (Disk on Module) ports   System BIOS   BIOS Type AMI 32Mb SPI Flash ROM   Management   Software Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM with dedicated LAN Power Configurations ACPI / APM Power Management   PC Health Monitoring   CPU Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator FAN Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Temperature Monitoring for CPU and chassis environment Thermal Control for fan connectors

Chassis   Form Factor 1U Rackmount Model CSE-815TS-R504WBP4   Dimensions and Weight   Width 17.2" (437mm) Height 1.7" (43mm) Depth 23.5" (597mm) Gross Weight 46 lbs (20.9kg) Available Colors Black   Front Panel   Buttons Power On/Off button UID button LEDs Power status LED HDD activity LED Network activity LEDs Universal Information (UID) LED   Expansion Slots   PCI-Express 2 PCI-E 4.0 x16 (FHHL) slots 1 PCI-E 4.0* x16 (LP) slot 1 PCI-E 4.0 x2 NVMe M.2 slot   * Limited Support: On some PCI-E 4.0 devices, it will only run at PCI-E 3.0 speed.   Drive Bays   Hot-swap 4 Hot-swap 3.5" SATA3 drive bays Optional 4 U.2 NVMe (PCI-E 3.0) drive support via additional NVMe cables Peripheral 1 Slim DVD-ROM drive bay (optional)   Backplane   SAS/SATA/NVMe HDD Backplane   System Cooling   Fans 4 Counter-rotating 4cm PWM fans, 2 fans for cooling AOC   Power Supply 500W Redundant Power Supplies with PMBus Total Output Power 500W Dimension (W x H x L) 54.5 x 40.25 x 320 mm Input 100-240Vac, 50-60Hz, 6.1-2.6A +12V Max: 42A / Min: 0.5A +5Vsb Max: 4A / Min: 0A Output Type Gold Finger Connector Mating with Molex 45984-4343 With Power Distributor +5V: 25A +3.3V: 12A -12V: 0.6A Certification   Platinum Certified   [ Test Report ]   Operating Environment   RoHS RoHS Compliant Environmental Spec. Operating Temperature:    10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature:    -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity:    8% to 90% (non-condensing) Non-operating Relative Humidity:    5% to 95% (non-condensing)

Parts List

Parts List - (Items Included)
	Part Number	Qty	Description
Motherboard / Chassis	MBD-H12SSW-NT   CSE-815TS-R504WBP4	1   1	Super H12SSW-NT Motherboard   1U Chassis
Backplane	BPN-SAS3-815TQ-N4	1	4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices
Riser Card	RSC-W-66G4	1	1U LHS WIO Riser card with two PCI-E 4.0 x16 slots,HF,RoHS
Riser Card	RSC-WR-6	1	1U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS
Heatsink / Retention	SNK-P0062P	2	1U Passive CPU Heat Sink for AMD Socket SP3 Processors
Power Supply	PWS-504P-1R	2	500W 1U Redundant PWS W/ 54.5MM Wide
Power Distributor	PDB-PT112-S2424	1	WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424
FAN	FAN-0141L4	4	40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
Parts	MCP-240-00099-0N	1	1U WIO riser card bracket for SC113, SC815, SC119, SC819
Drive Tray(s)	MCP-220-00075-0B	4	Black gen 5.5 hot-swap 3.5" HDD tray
Rear Window	MCP-240-00098-0N	1	WIO rear window for SC113,SC116, SC815 Redundant PWS
Rail Set	MCP-290-00054-0N	1set	Rail set, quick/quick, optional for 1U 17.2"W SC815

Optional Parts List
	Part Number	Qty	Description
2.5" to 3.5" Converter Tray	MCP-220-00043-0N	-	Black Hot-swap Gen-4 2.5" to 3.5" HDD tray
Optional Kit for 4 U.2 NVMe Drive Support	CBL-SAST-0817   MCP-220-00138-0B	2   4	SLIMLINE SAS x8 (LA) to 2x Oculink x4,INT, 36CM,34AWG   Black gen-5.5 tool-less NVMe 3.5-to-2.5 drive tray, Orange tab
DVD-ROM / DVD-RW	DVM-TEAC-DVD-SBT5   DVM-PLDS-DVDRW-SBT5	1   1	TEAC slim DVD-ROM SATA drive   PHILPS slim DVD-RW SATA drive
DVD-ROM Accessory	MCP-220-81502-0N	1	Slim SATA DVD mounting kit
Cooling Fan	FAN-0141L4	2	40x40x56mm 13K-11K RPM Counter-rotating Fan
Storage Controller card & cable	AOC-S3108L-H8iR & 1x CBL-SAST-0699   AOC-S3108L-H8iR-16DD & 1x CBL-SAST-0699   AOC-S3008L-L8i & 1x CBL-SAST-0699   AOC-S3008L-L8e & 1x CBL-SAST-0699	-	Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8, RAID controller, RAID 0, 1, 5, 6, 10, 50, 60   Standard LP, 8 Internal ports (12Gb/s) PCI-E 3.0 x8, 16HDD RAID controller, RAID 0, 1, 5, 6, 10, 50, 60   Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8, 63HDD, RAID 0, 1, 10   Standard LP, 8 internal ports (12Gb/s) PCI-E 3.0 x8, 122HDD HBA
CacheVault	BTR-CV3108-1U1   BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05	-   -	CacheVault for Broadcom 3108 with SuperCap mounting in 1Y 40x56 fan tray   CacheVault for Broadcom 3108 with SuperCap mounting bracket for PCI-E location
Front Bezels	CSE-PTFB-813LB   CSE-PTFB-813-02B	-   -	Black front bezels   Black Front Bezel w/ Round Venting Holes
TPM security module	AOM-TPM-9655V   AOM-TPM-9655V-S   AOM-TPM-9665V   AOM-TPM-9665V-S	-   -   -   -	Vertical TPM with Infineon 9655 TCG 1.2   Based on AOM-TPM-9655V with Server TXT package   AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH   Vertical TPM TCG 2.0 Provisioned for a server,RoHS/REACH
Global Services & Support	OS4HR3/2/1   OSNBD3/2/1	-   -	3/2/1-year onsite 24x7x4 service   3/2/1-year onsite NBD service
Software	SFT-OOB-LIC •	1	OOB Management Package (per node license)
Software	SFT-DCMS-Single	1	DataCenter Management Package (per node license)
