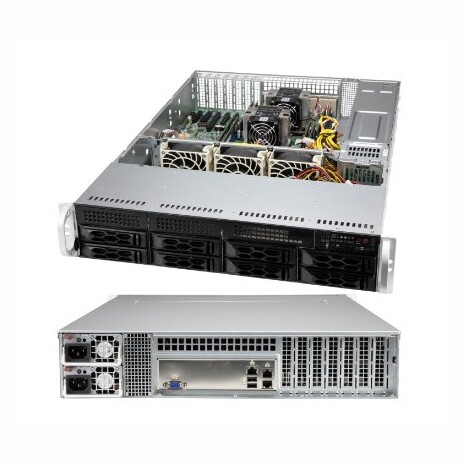

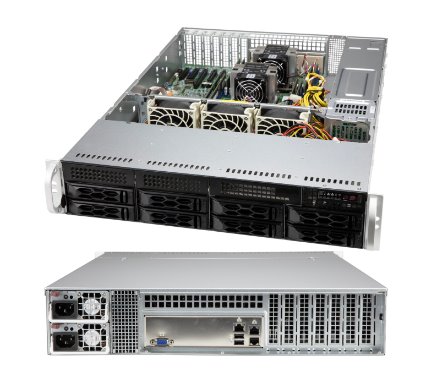

SUPERMICRO 2U chassis 8x 3,5" HS SAS3/SATA, 2x650W (80PLUS Platinum)
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Flexibilní přístup k požadavkům. Rychlá reakce.

Ověřený zákazník

Supermicro 2U chassis 8x 3,5" HS SAS3/SATA, 2x650W (80PLUS Platinum)

POZOR - ližiny nejsou součástí balení použijte náš kód SRMCP290000530N pro standarní nebo SRMCP290000580N pro kratší Key Features     2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed 8x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive…
Kategorie: Příslušenství k serverům Supermicro
Kód: 2879649PN: CSE-LA25TQC-R609LPVýrobce: SupermicroZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
15 299 Kč  včetně DPH
Cena bez DPH: 12 644 Kč
Běžná maloobchodní cena: 16 245 Kč
Nákup po telefonu
+420 587 407 456
Skladem

Popis produktu

POZOR - ližiny nejsou součástí balení použijte náš kód SRMCP290000530N pro standarní nebo SRMCP290000580N pro kratší

Key Features



  1. 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68".
    Support up to ATX 12"x13" MB with rear 2.5" HDD option installed
  2. 8x 3.5"(tool-less) or 2.5"(screw) hot-swap SAS3/SATA drive bay
    Optional 2x 3.5" fixed drive bay,
    Optional rear 2x 2.5" hot-swap drive bay kit
  3. 2U 8-Slot 12G Backplane for 8x 3.5" SAS3/SATA HDD/SSD
  4. 600W / 650W 1U Redundant Power Supply
  5. 7 low-profile expansion slot(s)
  6. 3x 80mm heavy duty fan(s) with PWM fan(s) speed control
  7. Support Service Tag for system information.
Specifications

Product SKUs

CSE-LA25TQC-R609LP
  • SuperChassis LA25TQC-R609LP

Form Factor

  • 2U chassis support max. motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68". Support up to ATX 12"x13" MB with rear 2.5" HDD option installed

Processor Support

  • Dual and Single Intel® and AMD processors

Dimensions

Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 25.5" (647 mm)
Gross Weight
  • 33 lbs (14.97 kg)
Packaging (W x H x L)
  • 24" (610 mm) x 9" (229 mm) x 34" (864 mm)
Available Color
  • Black

Expansion Slots

  • 7 low-profile expansion slot(s)

Drive Bays

  • 8 x 3.5" (tool-less) or 2.5" (screw) hot-swap SAS3/SATA drive bay
  • Optional 2 x 3.5" fixed drive bay
  • Optional 2 x 2.5" hot-swap SAS3/SATA drive bay

Backplane

  • 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD

Peripheral Drives

  • Optional 1 x slim DVD-ROM drive bay
  • Optional 2 x USB 2.0 ports
  • Optional 1 x COM port tray
  • Optional 2 x USB 3.0 ports

Front Panel

Buttons
  • Power On/Off button
  • System Reset Button
LEDs
  • 2 Network Activity LEDs
  • HDD activity LED
  • Power Status LED
  • Power Fail LED
  • System Information LED
Systems Cooling

Fans
  • 3 x 80mm heavy duty fan(s) with PWM fan(s) speed control

System Monitoring

  • Optional Chassis intrusion switch

Operating Environment (System)

Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
600W / 650W 1U Redundant Power Supply
Power Efficiency
  • 94%
Total Output Power and Input
  • 600W with Input 100 - 127Vac
  • 650W with Input 200 - 240Vac
  • 650W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 50A (100Vac - 127Vac)
  • Max: 54.16A (200Vac - 240Vac)
  • Max: 54.16A (200 - 240)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT826-L8824
  • O/P: 12V/75
  • +5V Max: 30
  • +3.3V Max: 24
  • -12V Max: 0.6
Certification
  • Platinum Certified  Platinum Certified

Regulatory (Power Supply)

Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC
Components

Standard Parts List

  Part Number Qty Description
HD Backplane BPN-SAS3-825TQ 1 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD
Cable(S) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
CD-ROM & Accessory MCP-290-82518-0B 1 Black DVD / USB dummy cover for CSE-LA25
Fan(s) FAN-0181L4 3 80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan for X11 Purley Platform Newly Enabled 2U+ Chassis
Front Panel FPB-FP836-D 1 Front control board Dual color LED(FP836-D)forSC823M,825,825M,828,829,835,836
Drive Tray(s) MCP-220-00184-0B 8 Black gen-9 tool-less cost-effective 3.5" HDD tray (no dummy)
Drive Tray(s) MCP-290-82607-0N 1 826B/216B rear dummy cover for 2 X 2.5
Power Distributor PDB-PT826-L8824 1 2U cost effective PDB support up to 1200W.,RoHS
Power Supply & Accessory PWS-609P-1R2 2 1U, platinum efficiency, 600W/650W, AC input: 100-127/200-240Vac.
Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF

Optional Parts List

  Part Number Qty Description
Rail MCP-290-00053-0N - Rail set, quick/quick, default for 2,3U 17.2"W
Short Rail MCP-290-00058-0N - Short rail set, quick release, 19.6"~26.9" Extendable Length
HDD Kit MCP-220-82616-0N - 12G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B)
Cable CBL-0160L - NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
Air Shroud MCP-310-29001-0N - SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13
HDD Kit MCP-220-82502-0B - Black fixed 3.5" HDD tray tray for CSE-825/CSE-LA25


Motherboard (for CSE- LA25TQC-R609LP)

X11DPi-N X11DPi-NT X11SRL-F X11DPL-i
X11SPL-F

= Most optimized Chassis for SuperServer Configuration
Blue color = Compatible
Green color = Global SKU & Compatible
Red dot & green color = Optimized + Global SKU

Parametry

Provedení2U
