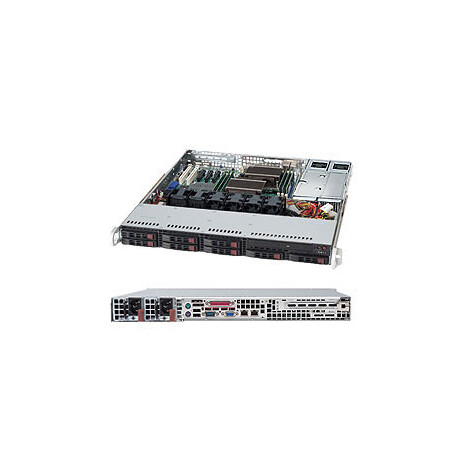

Supermicro 1U chassis 8x 2,5" HS SAS/SATA, 2x700W (Gold)

Serverový konfigurátor

1. 700W Redundant Power Supplies Gold Level Certified 2. 8x Hot-swap 2.5" SAS/SATA HDD tray 3. Expansion slots: 1x Full-height & Full-length 4. 4x 40x56mm counter-rotating fans 5. Supports motherboard sizes 12" x 13" E-ATX & 13.68" x 13" 6. Optimized for DP motherboards Form Factor 23.5" Depth 1U Rackmount Chassis - support for motherboard sizes of 12" x 13" and 13.68" x 13" (single power only) Processor Support Supports dual, single Intel® / AMD processors Dimensions Height 1.7" (43mm) Width 17.2" (437mm) Depth 23.5" (597mm) Packaging 25" (W) x 6" (H) x 33" (L) Gross Weight 25 lbs (11.34kg) Available Color Black Expansion Slots • 1x Full-height & Full-length PCI expansion slot (riser card required) Drive Bays Hot-swap 8x Hot-swap 2.5" SAS / SATA HDD tray SAS or enterprise SATA HDD only recommended SAS / SATA Backplane 1x 1U SAS / SATA backplane with SES2 Peripheral Drives DVD-ROM Slim DVD-ROM drive Front Panel Buttons Power On/Off button System Reset button UID button LEDs Power status LED HDD activity LED 2x Network activity LEDs Universal Information (UID) LED Server(s) for SC113TQ-R700CB 1027R-73DARF System Cooling Fans 4x 40x56mm Counter-rotating PWM fans (Optional 2x fans for AOC cooling) Operating Environment (System) Operating Temperature Range 5°C ~ 35°C (41°F ~ 95°F) Non-Operating Temperature Range -40°C ~ 60°C (-40°F ~ 140°F) Operating Relative Humidity Range 8% ~ 90% (non-condensing) Non-Operating Relative Humidity Range 5% - 95% (non-condensing) Power Supply 700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C AC Voltage 700W: 100 - 140 V, 50-60 Hz, 8.5-6 Amp 750W: 180 - 240V, 60-50 Hz, 5-3.8 Amp DC Output +5V standby 3 Amp DC Output +12V 700W: 58 Amp @ 100-140V 750W: 62 Amp @ 180-240V With Power Distributor +5V: 25 Amp +3.3V: 12 Amp -12V: 0.6 Amp Certification Gold Level Certified Gold Certified Regulatory (Power Supply) Power Supply Safety / EMC USA - UL listed, FCC Canada - CUL listed CCC Certification EN 60950/IEC 60950-Compliant Europe/CE Mark Germany - TUV Certified
