Supermicro
12Gb/s Sixteen-Port SAS/SATA Internal Host Bus
Adapter

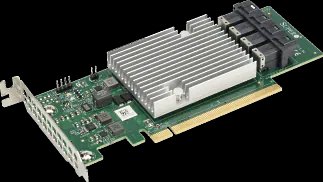

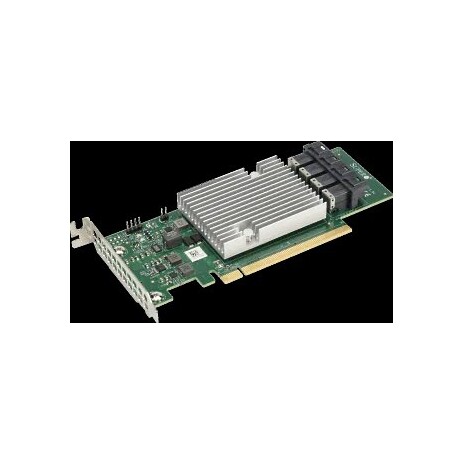

The Supermicro
HBA AOC-S3616L-L16iT features
16 internal direct-attached SAS/SATA connections with four Mini SAS
HD connectors and the HBA delivers high performance by utilizing
PCI-E Gen3 x16.
Key Benefits
High Performance
- Offers over 1.7 Million IOPs
- Delivers close to 12GB/s
throughput
High Port Account Supportability
- The HBA supports up to 240
storage device connections in IT mode
Ease of Management
- HBA management is done through
sideband IPMI utilities
|
Key
Features |
|
|
- Broadcom 3616 SAS3
controller
- 16-port (internal), 12Gb/s per
port
- Supports JBOD and up to 240
devices
- Automatically negotiates PCI-E
(1x, 2x and 3x) link widths
- Power management support
- Supports 3.0, 6.0 and 12Gb/s SAS
and SATA data transfer rates
- Port independent
auto-negotiation
- Supports SSP, SMP, STP and SATA
protocols
- Zoning capability w/ SAS3
expanders
- OS Support : Windows Server 2012,
Windows 8.x, Windows 10, Windows Server 2016, Windows Vista,
FreeBSD, RedHat and SUSE Linux
- Processor at 1.2 GHZ
- Power: 15.1 Watts
- Uses 4 MiniSAS HD (SFF-8643)
connectors
- Operating Temp: 10° to 55°C
|
|
Dimensions
and Weight |
|
L x
W |
2.7" x 6.1" |
Weight |
0.5 lbs |
|
