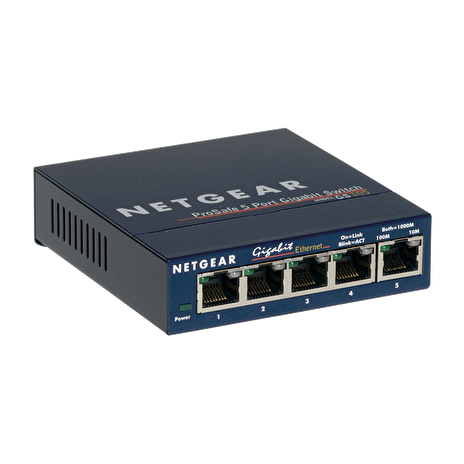

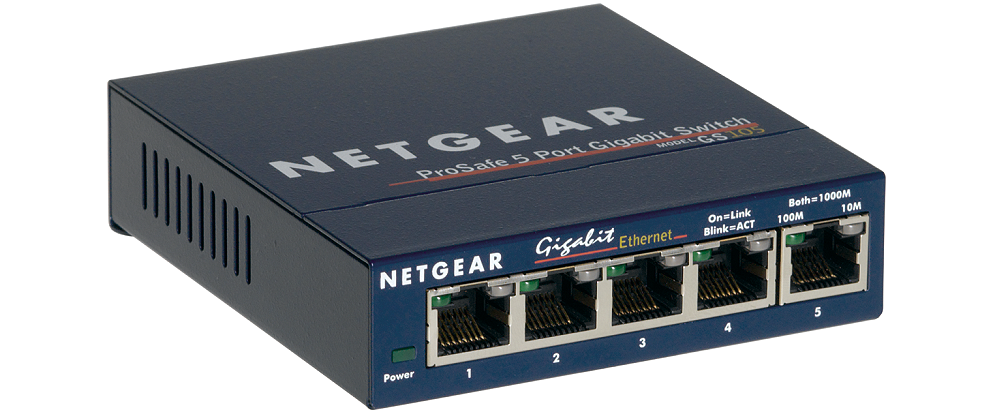

NETGEAR ProSafe 5-Port Gigabit Desktop Switch Metal (GS105GE)

Network Ports

• 5 auto-sensing UTP ports

Forwarding Mode

• Store-and-Forward
• 128K On-Chip Packet Buffering

Performance

• Bandwidth: 10 Gbps (non-blocking)
• Forward Rate (10 Mbps port): 14,800 packets/sec
• Forward Rate (100 Mbps port): 148,000 packets/sec
• Forward Rate (1000 Mbps port): 1,480,000 packets/sec
• Network Latency (100 to 100 Mbps): 20 µs (max)
• Network Latency (1000 to 1000 Mbps): 10 µs (max)
• Queue Buffer Memory: 12 kbytes per port
• MAC address database: 4,000
• Mean Time Between Failure (MTBF): 91,500 hours (~10 years)

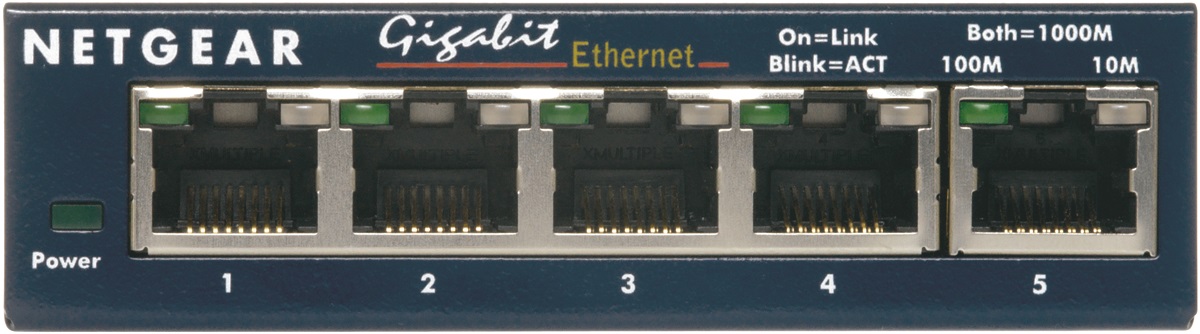

Status LEDs

• System power per port: Link, speed and activity

AC Power

• 12W
• 12VAC, 1A

Physical Specifications

• Dimensions (w x d x h): 93 x 105 x 27 mm (3.7 x 4.1 x 1.1 in)
• Weight: 300 g (0.66 lb)

Environmental Specifications

• Operating Temperature: 0o to 50o C (32o to 122o F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Specifications -20o to 70° C (-4o to 158o F) 10% to 95% Relative Humidity

Standards Compliance

• IEEE 802.3i 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3z 1000BASE-T Gigabit Ethernet
• IEEE 802.3x Full-duplex Flow Control
• IEEE 801.p priority tags
• DSCP priority tags
• Jumbo Frame support (9,000 byte)
• Windows, MAC OS, NetWare, Linux

Safety Agency Approvals

• UL (UL 60950), CUL, C-Tick, CE Mark, licensed (EN 60950)

Emissions

• FCC Class A and VCCI Class A, CE Class A

Package Contents

• ProSafe 5-Port Gigabit Ethernet Desktop Switch 10/100/1000 (GS105v2)
• Wall-mount kit
• Power adapter
• Installation guide
• Warranty & support information card
