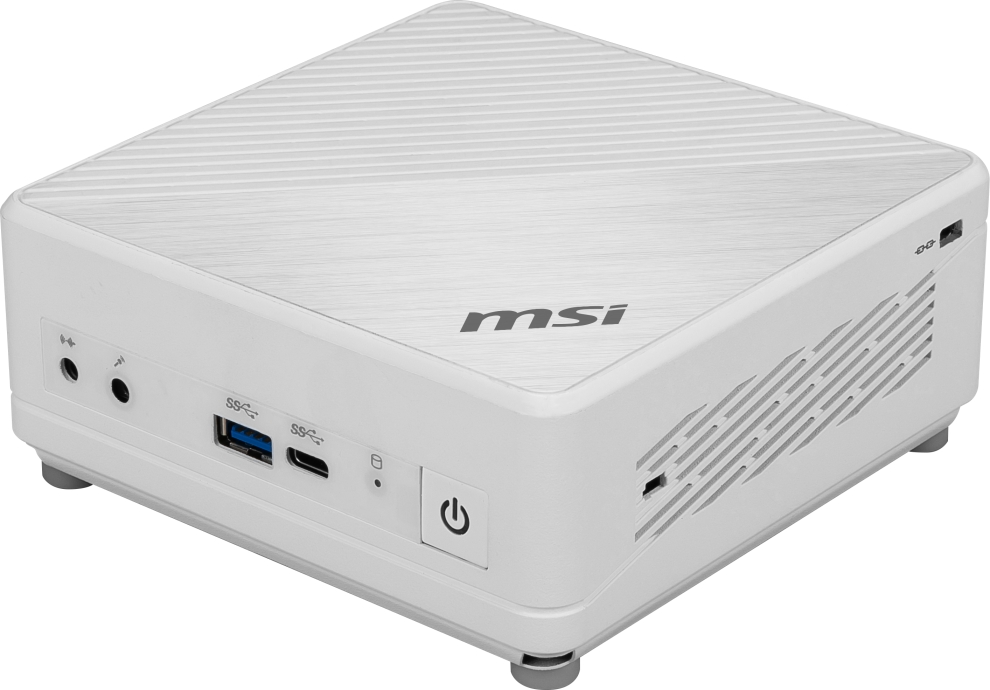

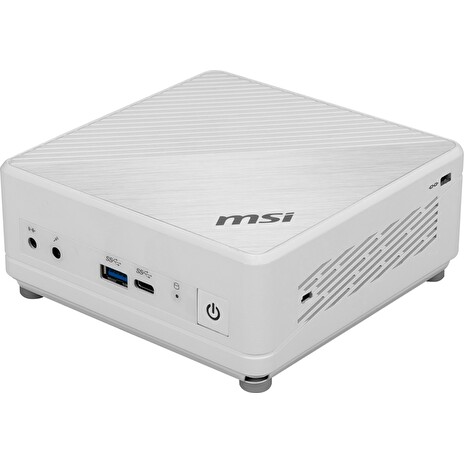

MSI PC Cubi 5 10M-419EU /Intel i3-10110U/8GB/256GB SSD/Wifi/USB/White/ Win 11

MSI PC Cubi 5 10M-419EU /Intel i3-10110U/8GB/256GB SSD/Wifi/USB/White/ Win 11

MKT Name Cubi 5 10M
Entity MKT Name
MKT Spec Cubi 5 10M-419EU
Website Name Cubi 5 10M
Color ID1/White-White-White
System/Barebone System
Processor
CPU Core Name COMET LAKE
CPU Socket BGA-1528pin
CPU Number Intel Core i3-10110U
CPU Clock 2.1GHz
CPU Cores 2
TDP 15W
CPU Cooler
Max Turbo Frequency up to 4.10 GHz
Cache 4 MB Intel® Smart Cache
Threads 4
Chipset
Graphics
Memory
Memory Size 8GB(8GB*1)
Memory Type DDR4 SDRAM
Memory Speed 1333(2666)MHz
Module Type SO-DIMM
Memory Slot 1
Memory Slot(Total) 2
Memory Slot(Free)
Max Capacity Max 64GB
Storage
SSD Interface PCIe GEN3x4 NVMe
SSD Form Factor M.2-2280 M-KEY
SSD Config 256GB*1
SSD Size 256GB
M.2 slots 1
M.2 slots(Total) 1
2.5" Drive Bays(Total) 1
Communications
LAN Intel I219-V
WLAN INTEL/9462.NGWG.NV
WLAN Version 802.11ac 1x1+BT
BT Version 5
VESA
VESA size 100 x 100 mm
Audio
Audio Chipset Realtek ALC887
Audio Type 2.1 Channel HD Audio
I/O Ports (Front)
USB 3.2 Gen 1 Type C 1
USB 3.2 Gen 1 Type A 1
Audio Mic-in 1
Audio Headphone-out 1
I/O Ports (Rear)
USB 3.2 Gen 1 Type A (R) 2
USB 2.0 Type A (R) 2
RJ45 1
HDMI out 1x (v1.4)
DP out 1x (v1.2)
Power
Power 65W
Type ADAPTOR
Operating Systems
OS MULTI-LANGUAGE(WIN 11 HOME OLC OA3)
OS Type W11M
Operating Systems Windows 11 Home
Pallet
Pallet Q'ty (by air) 300
Pallet Q'ty (by sea) 200
Dimension&Weight
Product Dimension (WxDxH) (mm) 124 x 124 x 53.7
Product Dimension (WxDxH) (inch) 4.88 x 4.88 x 2.11
Inside Carton Dimension (WxDxH) (mm) 205 x 220 x 94
Inside Carton Dimension (WxDxH) (inch) 8.07 x 8.66 x 3.7
Outer Carton Dimension Standard (WxDxH) (mm) 221 x 506 x 469
Outer Carton Dimension Standard (WxDxH) (inch) 8.7 x 19.92 x 18.46
Weight (Net kg) 0,55
Net Weight (lbs) 1,21
Weight (Gross kg) 1,4
Gross Weight (lbs) 3,09
Liter 0,66
Pint 1,39
HDMI Royalty Y
Mechanical and Environmental
Operating, Storage Temperature 0° C ~ 35° C ; -20° C ~ 60° C
Operating, Storage Humidity 0% ~ 85%;0% ~ 90%
Regulatory Compliance FCC(Class B)
CB/CE
UL(CUL)
BSMI
VCCI
RCM(C-Tick)
Accessories
AC Adaptor 1
Power Cord 1
Warranty Card 1
Quick Guide 3
VESA Mount kit 1
