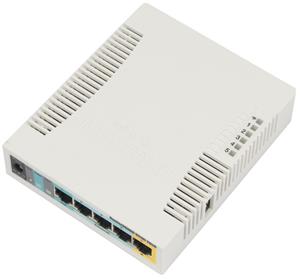

PRESENTATION VIDEORB951Ui-2HnDOVERVIEWThe RB951Ui-2HnD is a wireless SOHO AP with a new generation
Atheros CPU and more processing power. It has five Ethernet ports,
one USB 2.0 port and a high power 2.4GHz 1000mW 802.11b/g/n
wireless AP with antennas built in. It has a 600MHz CPU,128MB of
RAM and PoE output function for port #5 - it can power other PoE
capable devices with the same voltage as applied to the unit.
Maximum load on the port is 500mA. Package contains RouterBOARD
951Ui-2HnD in a plastic case and power adapter.SPECIFICATIONSProduct code • RB951Ui-2HnD CPU speed • 600MHz CPU cores • 1 RAM •
128 LAN ports • 5 Gigabit • No MiniPCI • 0 Integrated Wireless •
Yes Wireless standards • 802.11b/g/n USB • 1 Power Jack • Yes
802.3af support • No PoE • 8-30V DC on Ether1 Voltage Monitor • No
PCB temperature monitor • No CPU temperature monitor • No
Dimensions • 113x138x29mm Operating Systém • RouterOS Temperature
range • -20C +50C RouterOS License • L4 Antenna gain • 2.5dBi
Current Monitor • No TX power • 30dBm Max Power consumption • Up to
7W SFP ports • 0
