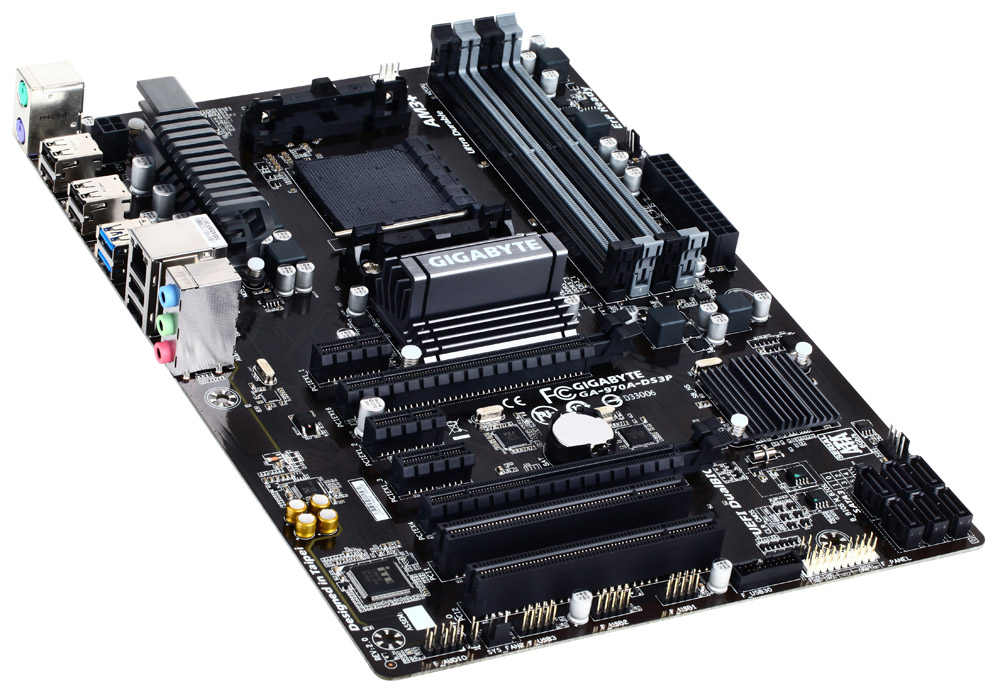

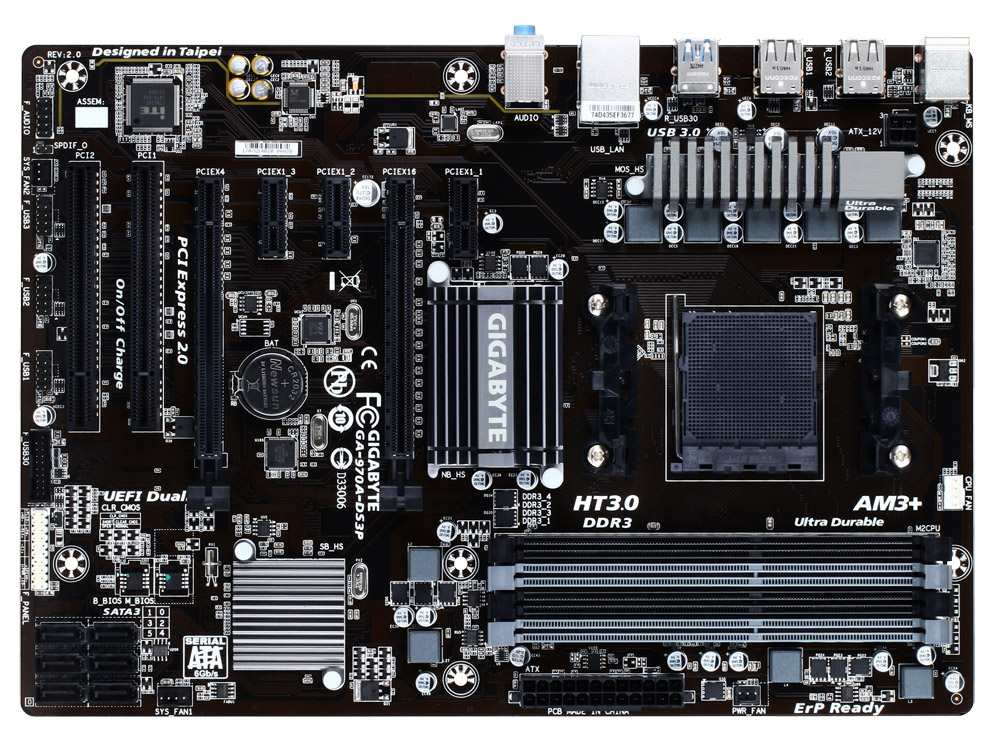

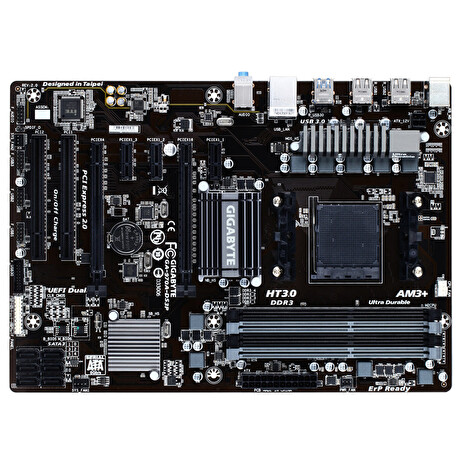

GIGABYTE základní deska 970A-DS3P/ AMD 970/ AM3+/ 4xDDR3 1600MHz/ ATX

CPU

AM3+ Socket: 1.Support for AMD AM3 Phenom™ II processor / AMD Athlon™ II processor
2.Support for AMD AM3+ FX processors

Please refer "CPU Support List" for more information.



Hyper Transport Bus

1.4800 MT/s



Čipset

North Bridge: 1.AMD 970
South Bridge: 1.AMD SB950



Paměť

1.4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
2.* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
3.Dual channel memory architecture
4.Support for DDR3 2000(O.C.)/1866/1600/1333/1066 MHz memory modules
*To support a DDR3 1866 MHz (and above) memory, you must install an AMD AM3+ CPU first.

(Více informací naleznete "seznamu podporovaných pamětí.")



Zvuk

1.High Definition Audio
2.2/4/5.1/7.1-channel
3.Support for S/PDIF Out
4.Realtek® ALC887 codec



LAN

1.1 x Realtek GbE LAN chip (10/100/1000 Mbit)



Rozšiřující sloty

1.1 x PCI Express x16 slot, running at x4 (PCIEX4)
2.1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
3.3 x PCI Express x1 slots (All PCI Express slots conform to PCI Express 2.0 standard.)
4.2 x PCI



Rozhraní pro ukládání dat

South Bridge: 1.6 x SATA 6Gb/s connectors supporting up to 6 SATA 6Gb/s devices
2.Support for SATA RAID 0, RAID 1, RAID 5, RAID 10 and JBOD



USB

South Bridge: 1.Up to 12 USB 2.0/1.1 ports (6 ports on the back panel, 6 ports available through the internal USB headers)
VIA VL805 chip: 1.Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)



Interní I / O konektory

1.6 x SATA 6Gb/s connectors
2.3 x USB 2.0/1.1 headers
3.1 x S/PDIF Out header
4.1 x USB 3.0/2.0 header
5.2 x system fan headers
6.1 x CPU fan header
7.1 x front panel header
8.1 x 24-pin ATX main power connector
9.1 x front panel audio header
10.1 x power fan header
11.1 x Clear CMOS jumper
12.1 x 4-pin ATX 12V power connector

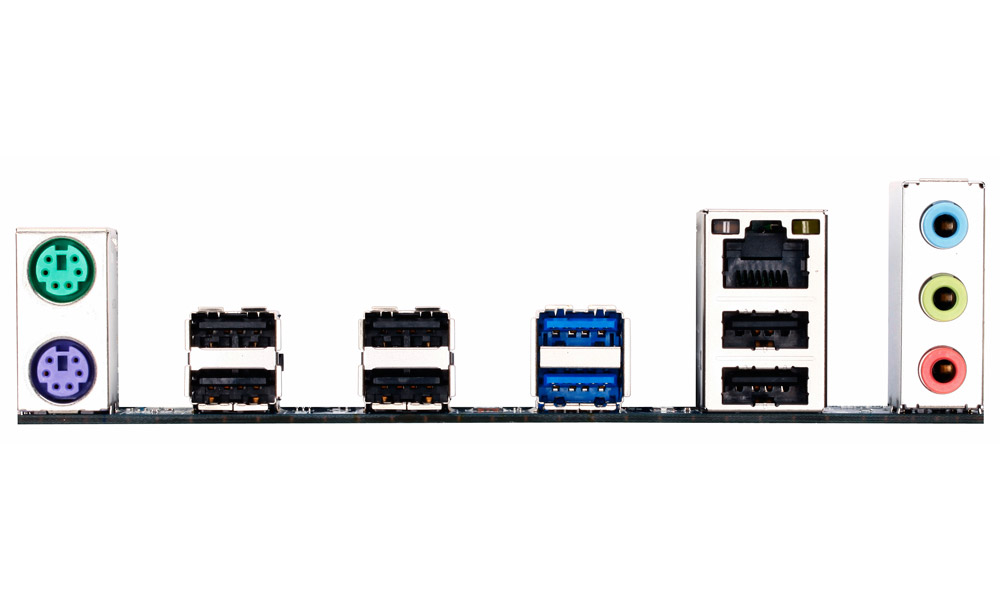

Konektory na zadním panelu

1.1 x RJ-45 port
2.1 x PS/2 keyboard port
3.1 x PS/2 mouse port
4.6 x USB 2.0/1.1
5.2 x USB 3.0/2.0
6.3 x audio jacks (Line In/Line Out/MIC)



I / O řadič

1.iTE I/O Controller Chip



Monitorování HW

1.CPU/System fan speed control
*Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
2.CPU/System temperature detection
3.System voltage detection
4.CPU overheating warning
5.CPU/System/Power fan speed detection
6.CPU/System/Power fan failure warning



BIOS

1.Support for DualBIOS™
2.2 x 32 Mbit flash
3.Use of licensed AMI EFI BIOS
4.PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a



Unikátní vlastnosti

1.Support for @BIOS
2.Support for Xpress Install
3.Support for Q-Flash
4.Support for Q-Share
5.Support for ON/OFF Charge
6.Support for EasyTune
* Available functions in EasyTune may differ by motherboard model.
7.Support for 3TB+ Unlock
8.Support for Smart Recovery 2
9.Support for Auto Green



Přidaný software

1.Norton Internet Security (OEM version)



Operační systém

1.Support for Microsoft® Windows 8/7/XP



Velikost

1.ATX Form Factor; 30.5cm x 21.5cm



Poznámka

1.Mnoho výrobců hardwaru/softwaru nemusí nabízet podporu starších operačních systémů jako Win9X/ME/2000/XP. Pokud výrobci přidají ovladače, provedeme update na stránkách GIGABYTE.
2.Vzhledem k rozdílné podpoře Linuxu u výrobců čipsetů si prosím stáhněte ovladače přímo z jejich stránek.
