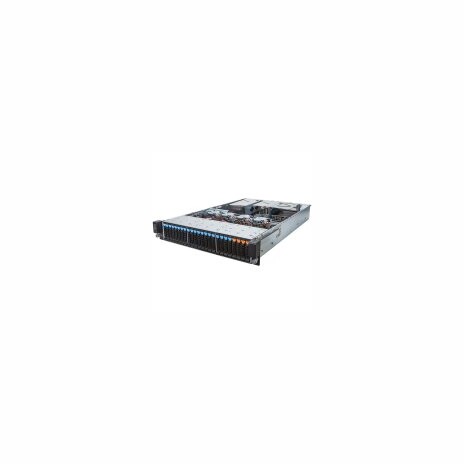

GIGABYTE R28N-F2O Standard Rackmount Server, E5-2600 V3/V4, 24 x RDIMM/LRDIMM ECC, 4 x 2.5"NVMe bays, 20 x 2.5" SAS/SATA

2U
430 x 87 x 712.4

MD90-FS0

Intel^® Xeon^® E5-2600 V3 processors
Intel^® Xeon^® E5-2600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.

2 x LGA 2011-3
Mounting pitch: square ILM (80x80mm)
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard

Intel^® C612

24 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz

2 x GbE LAN ports (Intel^® I350-BT2)
1 x 10/100/1000 management LAN

Integrated in Aspeed^® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

-

4 x 2.5" hot-swappable NVMe bays
20 x 2.5" hot-swappable SAS/SATA bays
Default configuration supports:
- 4 x NVMe drives (from CNV3114)
- 8 x SATA 6Gb/s drives (from Intel^® C612 chipset)
SAS or SATA card required to enable the remaining drive bays

2 x Mini-SAS (for 8 x SATA III 6Gb/s ports)
2 x SATA III 6Gb/s ports

-

-

-

3 x Riser cards:
- 1 x CRS2120
  * 1 x PCI-e x16 slot (Gen3 x16 or x8)
  * 1 x PCI-e x8 slot (Gen3 x0 or x8)
- 1 x CRS2121
  * 1 x PCI-e x8 slot (Gen3 x0 or x8)
  * 1 x PCI-e x16 slot (Gen3 x16 or x8)
- 1 x CRS2140
  * 1 x PCI-e x16 slot (Gen3 x16 or x8)
  * 1 x PCI-e x8 slot (Gen3 x0 or x8)
  * 1 x PCI-e x8 slot (Gen3 x8 or x4)
  * 1 x PCIe x8 slot (Gen3 x0 or x4)

1 x PCIe mezzanine type T (Gen3 x8 bus) slot

1 x 14-pin ATX main power connector
3 x 8-pin ATX 12V power connectors
3 x 4-pin ATX 12V power connectors
2 x Mini-SAS ports
2 x SATA III 6Gb/s ports
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x Front panel header
1 x HDD back plane board header
1 x Chassis intrusion header
1 x PLD header
1 x TPM header
1 x JTAG header
1 x ME update jumper
1 x ME recovery jumper
1 x Clear CMOS jumper
1 x S3 mask jumper
1 x BMC RFB jumper
1 x IPMB connector

1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED
1 x Reset button

2 x USB 3.0
2 x USB 2.0
3 x RJ45
1 x VGA
1 x Serial
1 x ID button with LED

24 x SAS/SATA ports
Default configuration supports:
- 4 x NVMe drives (from CNV3114)
- 4 x SATA/SAS drives (from Intel^® C612 chipset)
HBA card required to enable the remaining drive bays

1 x TPM header

2 x 1200W redundant PSUs
80 PLUS Platinum

AC input:
- 100-127V/ 12.47A, 47-63Hz
- 200-240V/ 7.08A, 47-63Hz

DC output:
Max 1000W@100-127V
+12V/ 82A
+12Vsb/ 2A
Max 1600W@200-240V
+12V/ 98A
+12Vsb/ 2A

Aspeed^® AST2400 management controller
Avocent^® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
-Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)

Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016

Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)

SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)

Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)

VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1

18 kg

4 x 80x80x38mm (14'900rpm)

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
