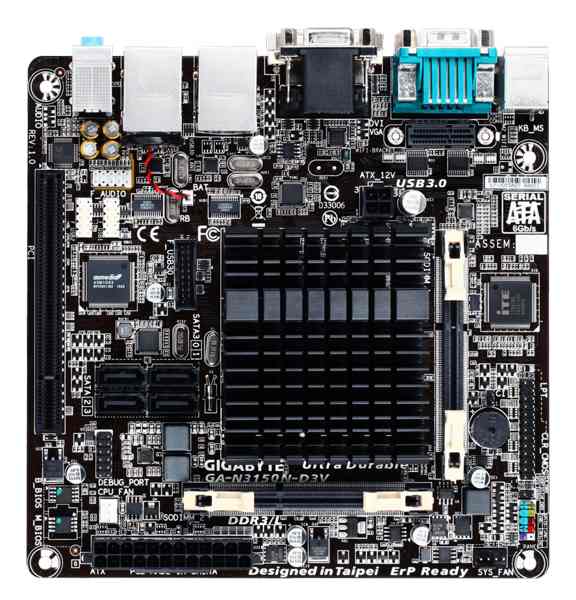

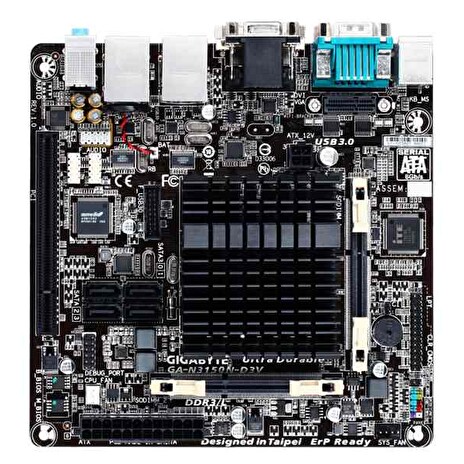

GIGABYTE MB N3150N-D3V, Quad-Core Celeron® N3150 SoC (1.6 GHz), Intel N3150, 2xDDR3 SO-DIMM, VGA, Mini-ITX

CPU 1.Built in with an Intel® Quad-Core Celeron® N3150 SoC (1.6 GHz)
* Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.
2.2 MB Cache

Memory 1.2 x DDR3 SO-DIMM sockets supporting up to 8 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2.Dual channel memory architecture
3.Support for DDR3/DDR3L 1600/1333 MHz memory modules
* Due to an SoC limitation, if a 1333 MHz memory is installed, it will be downgraded to 1066 MHz.
4.Support for non-ECC memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated in the SoC: 1.1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2.1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
Maximum shared memory of 512 MB
Audio 1.Realtek® ALC887 codec
2.High Definition Audio
3.2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN 1.2 x Realtek® GbE LAN chips (10/100/1000 Mbit)

Expansion Slots 1.1 x PCI slot
2.1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

Storage Interface SoC: 1.2 x SATA 6Gb/s connectors (SATA 3 0/1)
ASMedia® ASM1061 chip: 1.2 x SATA 6Gb/s connectors (SATA 3 2/3)?

USB SoC: 1.4 x USB 3.0/2.0 port (2 ports on the back panel, 2 ports available through the internal USB header)
SoC+2 x GENESYS LOGIC USB 2.0 Hubs: 1.6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

Internal I/O Connectors 1.1 x 24-pin ATX main power connector
2.1 x 4-pin ATX 12V power connector
3.4 x SATA 6Gb/s connectors
4.1 x CPU fan header
5.1 x system fan header
6.1 x front panel header
7.1 x front panel audio header
8.1 x USB 3.0/2.0 header
9.2 x USB 2.0/1.1 headers
10.1 x parallel port header
11.1 x Clear CMOS jumper
12.1 x chassis intrusion header

Back Panel Connectors 1.1 x PS/2 mouse port
2.1 x PS/2 Keyboard port
3.2 x serial ports
4.1 x D-Sub port
5.1 x DVI-D port
6.2 x USB 3.0/2.0 ports
7.2 x USB 2.0/1.1 ports
8.2 x RJ-45 ports
9.3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller 1.iTE® I/O Controller Chip

H/W Monitoring 1.System voltage detection
2.CPU/System temperature detection
3.CPU/System fan speed detection
4.CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS 1.2 x 64 Mbit flash
2.Use of licensed AMI UEFI BIOS
3.Support for DualBIOS™
4.PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features 1.Support for Xpress Install
2.Support for @BIOS
3.Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

Bundle Software 1.Norton® Internet Security (OEM version)

Operating System 1.Support for Windows 10 32-bit/64-bit
2.Support for Windows 8.1/7 64-bit
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.

Form Factor 1.Mini-ITX Form Factor; 17.0cm x 17.0cm

Remark 1.Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
