Ergotron HX Desk Monitor Arm, stolní rameno max 49" monitor, bílé

ERGOTRON HX Desk Monitor Arm, stolní rameno max 42" monitor, bílé

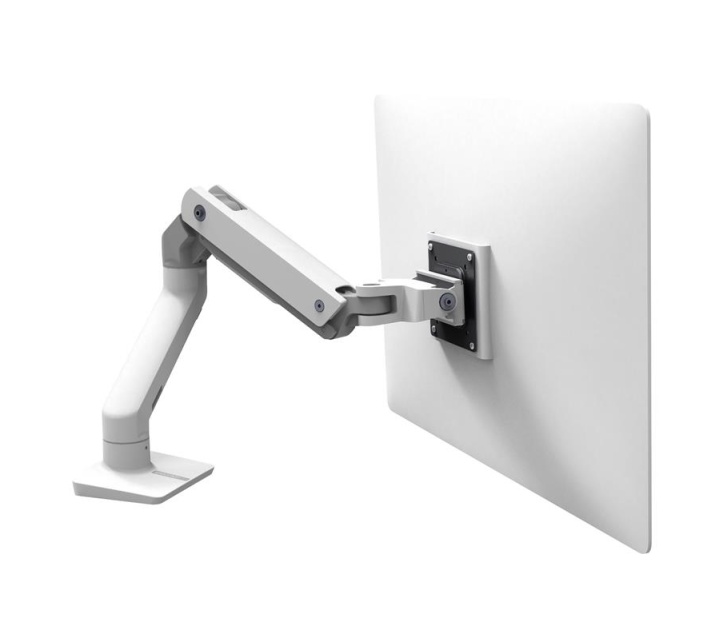

HX Desk Monitor Arm
The HX Monitor Arm is the perfect accessory to add flexibility and superior ergonomics to your monitor or TV. The HX features a new post design, frees up space and allows positioning of your display for greater productivity.

Sleek and streamlined, it accommodates large monitors weighing up to 42 lbs (19 kg). Extension/retraction motion and height adjustment capability promote user comfort.

Product Benefits
Increases viewing comfort: Helps reduce eye, back and neck strain
Sleek new post design
Patented CF™ motion technology provides premium ease-of-use display adjustment
Cable management feature routes cables tightly under the arm and through the extension, out of the way
Eliminates scrolling: Rotate screen for portrait viewing of photos and documents
Rotation-stop on base limits range to 180° and prevents monitor from making contact with wall
Folding arm frees up space in constrained areas
Upgrade this arm with the HX Triple Bow Kit to create a triple monitor arm
Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment

Part Number: 45-475-216 (white), 45-475-026 (polished aluminum), 45-475-231 (silver)
Description: HX Desk Monitor Arm
Includes: Arm, extension, monitor pivot, desk clamp, grommet mount and monitor mounting hardware
Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
Portrait/landscape rotation with lockout
Streamline cable management that routes cables under arm and within extension
Desk clamp attaches to surface edge .4" to 2.4" (1 to 6 cm) thick
Grommet mount attaches through surface holes
Clamp base ensures greater stability of display and arm
* Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base
‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
Maximum screen size determined by the monitor weight
Weight Capacity: 20–42 lbs (9.1–19.1 kg)
† Tilt Range: 70° backward, 5° forward
Shipping Dimensions: 12" x 19.2" x 7" (30.5 x 48.8 x 17.8 cm)
Shipping Weight: 18.3 lbs (8.3 kg)
