Nestíněný modulární konektor CAT 6, pro kulatý kabel

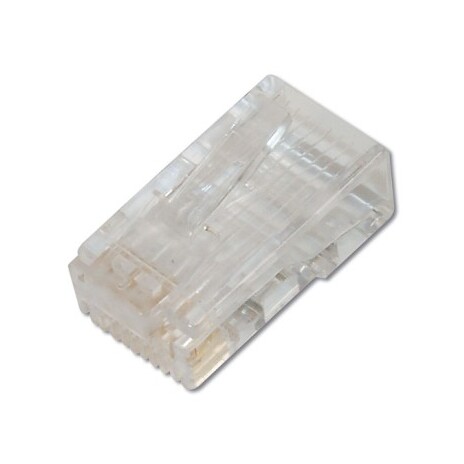

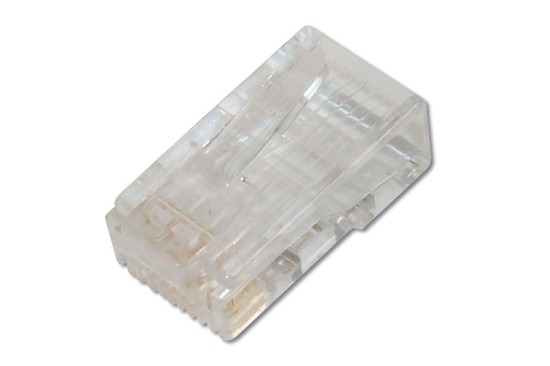

CAT 6 Modular Plug, 8P8C, Unshielded, For Round Cable
These modular plugs can be used to establish quick and simple
connections.
CAT 6 Modular Plug, 8P8C
RJ45 8P8C
Unshielded
UL certified
Insertion force: more or 30N
Mating cycles: les or 750
Material contacts: Phosphor bronze
Contacts coating: Nickel, gold plated 0,8µ
Material connector body: Polycarbonat, clear
Diameter Cu-Conductor: AWG (27/7 ... 24/7)
Diameter outer jacket: 5,5 ... 6,2mm
Temperature range: -40°C ... +70°C
Current carrying capacity: 1A at 50°C
