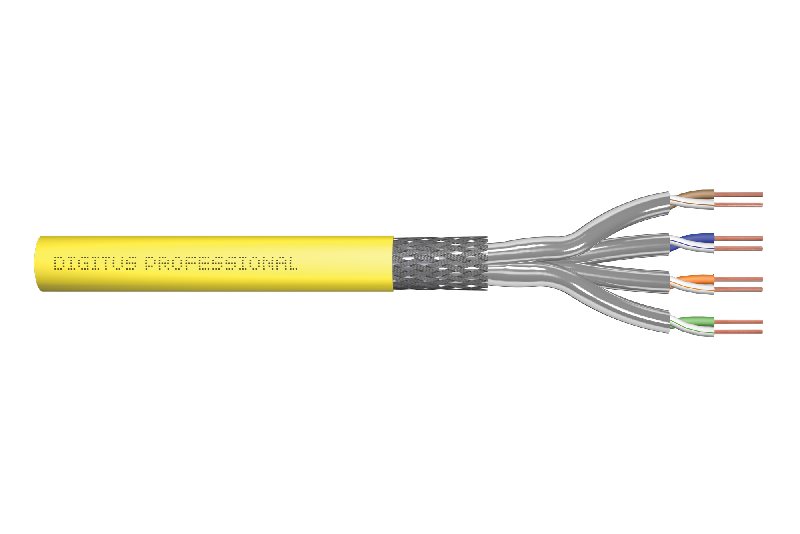

DIGITUS Instalační kabel CAT 7A S-FTP, 1500 MHz Dca, AWG 22/1, kroužek 100 m, SX, žlutá
Cat.7A S/FTP installation cable, 100 m, simplex, Dca
CAT 7A S-FTP installation cable, 1500 MHz Dca, AWG 22/1, 100 m ring, SX, yellow
Future-oriented standards and high-end quality for your network.
10GBit Ethernet
1500 MHz transmission frequency
Permanent link certified
PoE Power over Ethernet support
CPR class Dca
The DIGITUS® Professional Cat.7A S/FTP…
Kategorie: Patch kabely, konektory, zásuvky DIGITUS
Kód: 2624095PN: DK-1743-A-VH-1Výrobce: DIGITUSZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
3 299 Kč včetně DPH
Cena bez DPH: 2 726 Kč
Cena bez DPH: 2 726 Kč
Skladem poslední 1 kus
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 5.5. / ZDARMA!
Přepravní službou (ČR)7.5. / od 190 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.
Popis produktu
Cat.7A S/FTP installation cable, 100 m, simplex, Dca
CAT 7A S-FTP installation cable, 1500 MHz Dca, AWG 22/1, 100 m ring, SX, yellow
Future-oriented standards and high-end quality for your network.
10GBit Ethernet
1500 MHz transmission frequency
Permanent link certified
PoE Power over Ethernet support
CPR class Dca
The DIGITUS® Professional Cat.7A S/FTP installation cable is characterized by the following cable construction 4x2x AWG22/1 and reaches a transmission frequency up to 1500 MHz. The halogen free cable jacket is conform to the standard IEC 60332-3-24, FRNC-C, LSZH-3 and CPR Euro class Dca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-9-1.
Technical details
Physical properties:
Basic conductor: Solid AWG 22/1, bare annealed copper, diameter 0.60 mm nominal
Insulation: SFS-PE (Foam-Skin Polyethylene)
Total number of insulated conductors: 8, twisted in 4 pairs
Color code: blue-white, orange-white, green-white, brown-white
Individual pair shielding: Aluminum foil, providing 100 % coverage
Overall shielding: Copper wire braid
Outer jacket: Halogen-free (FRNC-C/LSZH-3)
Outer jacked diameter: 0.6 mm nominal
Color: Yellow (RAL 1016)
Length: 100 m
Mechanical properties:
Tensile loading: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Shipping- and storage temperature range: -20 °C up to +75 °C
Operating temperature range: -20 °C up to +60 °C
Temperature installation range: 0°C to +50°C
Overall diameter: 8.0 mm nominal
Flame retardancy: IEC 60332-3-24
Halogen-free & smoke-proof: IEC 60754-2 & IEC 61034
Fire load: 700 Mj/km
Weight: 70 kg/km
Electrical properties:
Mean impedance: 100±5 Ohm @ 1-600 MHz
Capacitance: 40 pF/m nominal @ 1 KHz
Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC loop resistance: 147 Ohm/Km max. (2% max. resistance unbalance)
Voltage resistance: 72 Vdc max.
Coupling attenuation: 80 dB
Signal propagation delay: 450 nS/100 m max.
Propagation delay: 10 nS/100 m max.
Separating class: “d” acc. to EN 50174-2
NVP: 79%
CAT 7A S-FTP installation cable, 1500 MHz Dca, AWG 22/1, 100 m ring, SX, yellow
Future-oriented standards and high-end quality for your network.
10GBit Ethernet
1500 MHz transmission frequency
Permanent link certified
PoE Power over Ethernet support
CPR class Dca
The DIGITUS® Professional Cat.7A S/FTP installation cable is characterized by the following cable construction 4x2x AWG22/1 and reaches a transmission frequency up to 1500 MHz. The halogen free cable jacket is conform to the standard IEC 60332-3-24, FRNC-C, LSZH-3 and CPR Euro class Dca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-9-1.
Technical details
Physical properties:
Basic conductor: Solid AWG 22/1, bare annealed copper, diameter 0.60 mm nominal
Insulation: SFS-PE (Foam-Skin Polyethylene)
Total number of insulated conductors: 8, twisted in 4 pairs
Color code: blue-white, orange-white, green-white, brown-white
Individual pair shielding: Aluminum foil, providing 100 % coverage
Overall shielding: Copper wire braid
Outer jacket: Halogen-free (FRNC-C/LSZH-3)
Outer jacked diameter: 0.6 mm nominal
Color: Yellow (RAL 1016)
Length: 100 m
Mechanical properties:
Tensile loading: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Shipping- and storage temperature range: -20 °C up to +75 °C
Operating temperature range: -20 °C up to +60 °C
Temperature installation range: 0°C to +50°C
Overall diameter: 8.0 mm nominal
Flame retardancy: IEC 60332-3-24
Halogen-free & smoke-proof: IEC 60754-2 & IEC 61034
Fire load: 700 Mj/km
Weight: 70 kg/km
Electrical properties:
Mean impedance: 100±5 Ohm @ 1-600 MHz
Capacitance: 40 pF/m nominal @ 1 KHz
Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC loop resistance: 147 Ohm/Km max. (2% max. resistance unbalance)
Voltage resistance: 72 Vdc max.
Coupling attenuation: 80 dB
Signal propagation delay: 450 nS/100 m max.
Propagation delay: 10 nS/100 m max.
Separating class: “d” acc. to EN 50174-2
NVP: 79%
Parametry
| Návod | Jiný |
|---|---|
| Barva | Žlutá |
| Délka | 51m - 100m |
| Konektor 1 | Bez konektoru |
| Konektor 1 | RJ-45 |
| Konektor 2 | Bez konektoru |
| Konektor 2 | RJ-45 |
| Opletení | Ne |
| Provedení konektoru | Rovný |
| Určení | Propojovací |
| Výrobce | Digitus |
