PŘEHLED

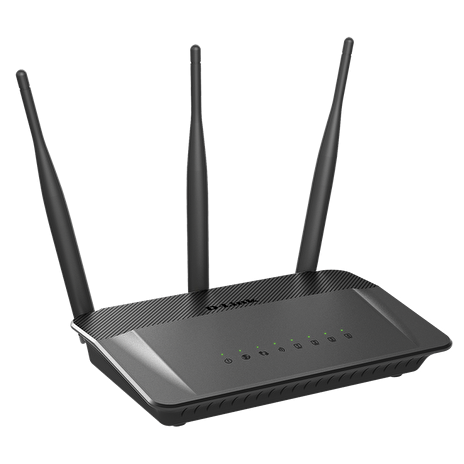

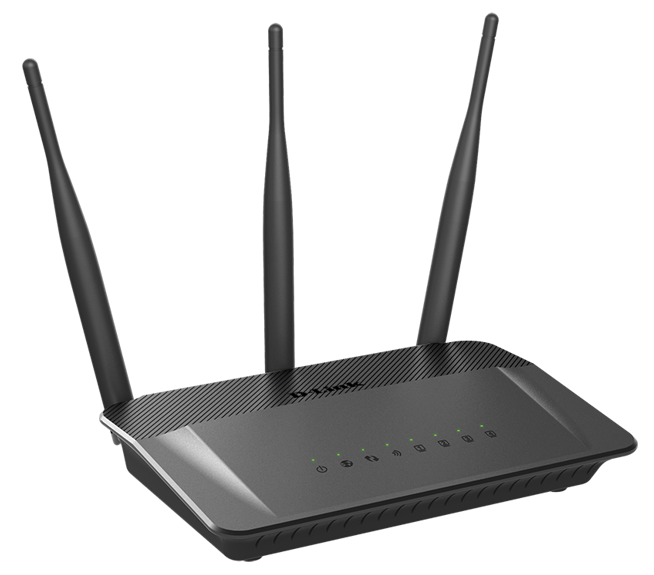

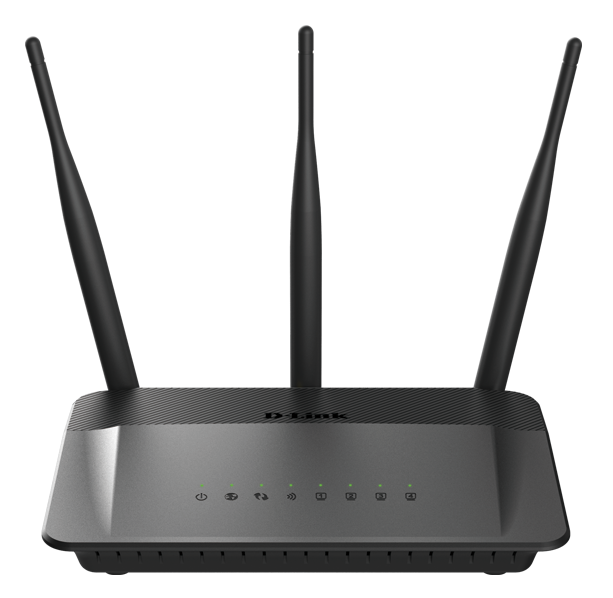

The DIR-809 Wireless AC750 Dual Band Router uses the latest
high-speed wireless technology to bring you lightning-fast Wi-Fi
speeds of up to 433 Mbps on the 5 GHz frequency band and 300 Mbps
on the 2.4 GHz frequency band.
TECHNICKÁ SPECIFIKACE

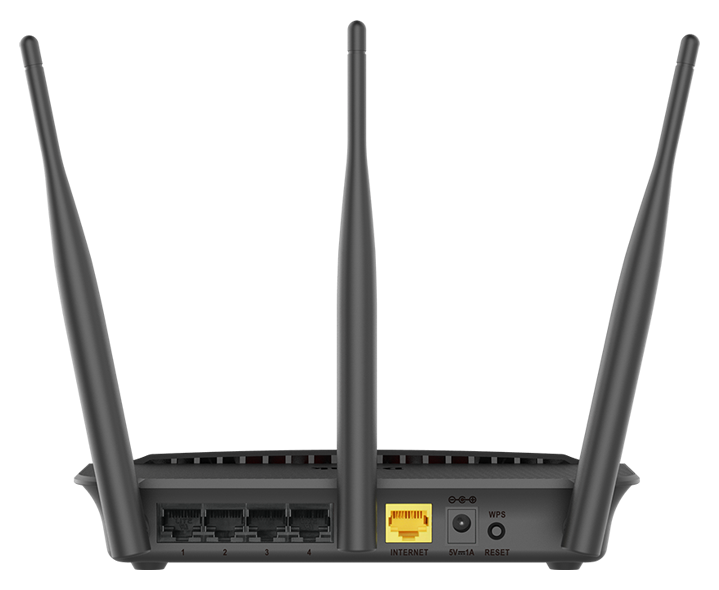

Device Interfaces
*IEEE 802.11ac wireless LAN1
*IEEE 802.11 a/b/g/n wireless LAN
*10/100 fast Ethernet Internet port
*Four 10/100 fast Ethernet LAN ports
LEDs
*Power
*Internet
*WLAN
*LAN (x4)
*WPS
Antenna Type
*Three fixed external antennas
Operating Frequency
*2.4 GHz band: 2400 - 2483.5 MHz
*5 GHz band: 5150 - 5725 MHz
Standards
*IEEE 802.11ac
*IEEE 802.11n
*IEEE 802.11g
*IEEE 802.11b
*IEEE 802.11a
*IEEE 802.3u
Minimum Requirements
*Internet Explorer 9, Firefox 12.0, Chrome 20.0, Safari 4.0, or
other Java-enabled browser
*Cable or DSL Modem
*Subscription with an Internet Service Provider
Functionality
Security
*WPA & WPA2 (Wi-Fi Protected Access)
*WPS (Wi-Fi Protected Setup)
Advanced Features
*Web setup wizard
*DMZ (Demilitarized Zone)
*Firewall - Network Address Translation (NAT)
*Wireless Repeater
Physical
Dimensions
*190 x 133 x 83 mm
Weight
*228.6 grams
Power
*Input: 100 to 240 V AC, 50/60 Hz
Temperature
*Operating: 0 to 40 °C
*Storage: -20 to 65 °C
Humidity
*Operating: 10% to 90% non-condensing
*Storage: 5% to 95% non-condensing
Certifications
*ANATEL
*NCC
*CCC
*BSMI
