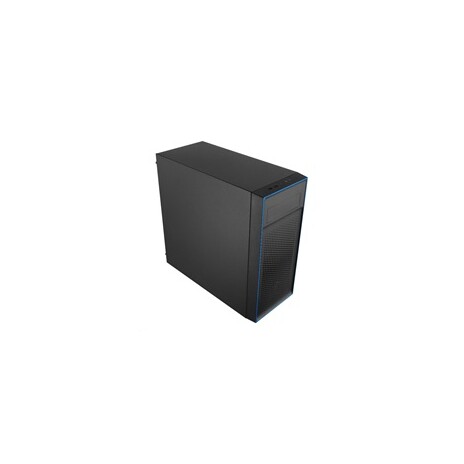

The MasterBox E501L
The MasterBox E501L is the essential solution for optimized cooling. A gradient of perforations below the ODD allow fresh air into the system for both air-cooled and liquid cooled configurations. The glossy, colored accent around the front panel compliments the ventilated area.
For simple tasks, the E501L is a cost-effective solution to professional computing. For higher-demand tasks, the E501L can be upgraded to house liquid cooling with enough clearance for the longest, widest graphics cards.
Product Name |
MasterBox E501L |
|
Product Number |
MCB-E501L-KN5N-S00 |
|
Exterior Color |
Black |
|
Materials |
Exterior |
Plastic |
Side Panel |
Steel |
|
Dimensions (L x W x H) |
incl. Protrusions |
481mm x 205mm x 458.5mm |
excl. Protrusions |
428.7mm x 205mm x 450.5mm |
|
Volume (Liters excl. Protrusions) |
45.2L |
|
Motherboard Support |
Mini-ITX, Micro-ATX, ATX |
|
Expansion Slots |
7 |
|
Drive Bays |
5.25“ ODD |
1 |
3.5" HDD |
2(Max.3) |
|
2.5” SSD |
2(Max.3) |
|
I/O Panel |
USB Ports |
USB 3.2 Gen1 x 1 (USB 3.0) USB 2.0 x 1 |
Audio In / Out |
1 x 3.5mm Audio Jack 1 x 3.5mm Mic Jack |
|
Other |
N/A |
|
Pre-installed Fan(s) |
Top |
N/A |
Front |
N/A |
|
Rear |
120mm x 1 (Black ) |
|
Bottom |
N/A |
|
Fan Support |
Top |
N/A |
Front |
120mm x 2,140mm x 2 |
|
Rear |
120mm x 1 |
|
Bottom |
N/A |
|
Radiator Support |
Top |
N/A |
Front |
120mm, 140mm, 240mm, 280mm |
|
Rear |
120mm |
|
Bottom |
N/A |
|
Clearances |
CPU Cooler |
165mm |
Power Supply |
390mm (without radiator and HDD installed) 200mm (with radiator and HDD installed) |
|
Graphics Card |
410mm (without radiator installed) 360mm (with radiator installed) |
|
Cable Routing |
Behind MB Tray |
19~27mm |
Dust Filters |
Front, Bottom |
|
Power Supply Support |
ATX PS2 |
Barva skříně | Černá |
---|---|
Počet pozic 2.5" (SSD) | 1 |
Počet pozic 3.5" (HDD) | 2 |
Provedení skříně | Midi Tower |
Vybavení PC skříně | Přední Audio panel |
Vybavení PC skříně | Přední USB panel |
Vybavení PC skříně | Průhledná bočnice |
