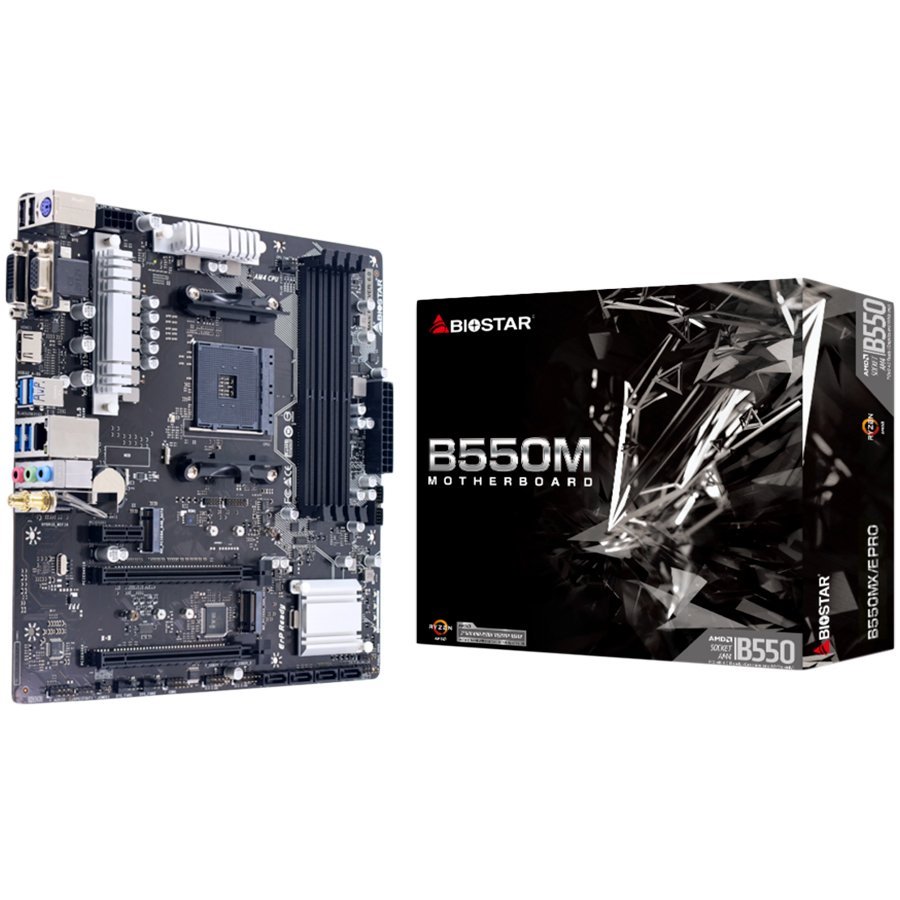

BIOSTAR B550MX/E Pro, AM4, B550 chipset, 4x DIMM DDR4 4400, PCI-E 16x 1x Gen4, 1x Gen3, 2x M.2, 4x SATA III, G
Main Board Desktop - Processor
Chipset:
AMD B550
Supports Central Processor Unit:
AMD Ryzen Series 3rd Generation
AMD Ryzen Series 4th Generation
CPU Socket Standard:
Socket AM4
CPU Maximum Quantity Supports:
1
Main Board Desktop - Memory
Memory Type:
DDR4 SDRAM…
Kategorie: Základní desky
Kód: 3374684PN: B550MX/E PROZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
3 399 Kč včetně DPH
Cena bez DPH: 2 809 Kč
Cena bez DPH: 2 809 Kč
Skladem
Popis produktu
| Main Board Desktop - Processor | |
| Chipset: | AMD B550 |
| Supports Central Processor Unit: | AMD
Ryzen Series 3rd Generation AMD Ryzen Series 4th Generation |
| CPU Socket Standard: | Socket AM4 |
| CPU Maximum Quantity Supports: | 1 |
| Main Board Desktop - Memory | |
| Memory Type: | DDR4 SDRAM |
| Memory Form Factor: | DIMM 288-pin |
| Memory Speed: |
2133MHz(PC4-17000) 2400MHz(PC4-19200) 2667MHz(PC4-21300) 2800MHz(PC4-22400) 2933MHz(PC4-23400) 3200MHz(PC4-25600) |
| Maximum Installable System Memory Storage Capacity: | 128 GB |
| Memory Slot Total Quantity: | 4 |
| Provides Error Checking Method: | non-ECC |
| Controller | |
| Integrated: |
Storage Controller: Supports: Level 0, Level 1, Level 10 SATA III-600 (4) Storage Controller: PCIe NVMe 4.0 x4 (1 x M.2 (Key M)) Storage Controller: PCIe 3.0 x4/SATA (1 x M.2 (Key M)) |
| Support: |
Wi-Fi Controller: 1 x M.2 (Key E) |
| Main Board Desktop - Audio Output | |
| Audio Integrated: | yes |
| Device Location: | Integrated |
| Audio Chipset: | Realtek ALC897 |
| Audio Output Mode: | 7.1 Channel Surround |
| Compliant Audio Standards: | High Definition Audio |
| Main Board Desktop - Networking Specifications | |
| LAN Integrated: | yes |
| LAN Chipset: | Realtek RTL8111H |
| Data Link Protocol Supports: | Gigabit Ethernet/Fast Ethernet/Ethernet |
| Slot Provided | |
| PCI Express 4.0 x16: | 1 |
| PCI Express 3.0 x1: | 1 |
| PCI Express 3.0 x16: | 1 |
| Interface Provided | |
| Wi-Fi Antenna: | 2 |
| PS/2: | 1 |
| HDMI: | 1 (HDMI (Type A)) |
| DVI: | 1 (DVI-D) |
| VGA: | 1 (15-pin D-sub) |
| LAN: | 1 (RJ-45) |
| Audio Interface: | 3 (3.5-mm minijack) |
| USB 3.2 Gen 1: | 4 (USB 3.2 (type A)) |
| USB 2.0: | 2 (USB 2.0 (type A)) |
| Main Board Desktop - Mainboard Features | |
| Hardware Monitoring: |
Chassis Fan Tachometer CPU Fan Tachometer CPU Temperature System Temperature System Voltage CPU Fan multi-speed control |
| Power Connectors Type: | 24+8 pin |
| Main Board Desktop - Software | |
| Supported Operating System: |
Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit |
| Miscellaneous | |
| Cable Included: | 2 x SATA Data Cables |
| Included Accessories: | I/O
Shield Quick Start Guide Driver CD |
| Main Board Desktop - Dimensions&Weight | |
| Form Factor: | Micro ATX |
| Height (mm): | 244 mm |
| Width (mm): | 244 mm |
Parametry
| M.2 slot | 2 |
|---|---|
| Maximální frekvence paměti [MHz] | 4400 |
| PCI Express x4 | 1 |
| Počet paměťových slotů | 2 |
| Podpora ECC | ANO |
| Typ paměti | DDR4 |
| Integrovaná grafická karta | NE |
| Čipová sada | AMD B550 Chipset |
| Patice (CPU Socket) | CPU na desce |
| Počet CPU socketů | Single socket |
| Výrobce čipsetu | AMD |
| Formát | mITX |
| Herní | ANO |
| Určení | Hraní a multimedia |
