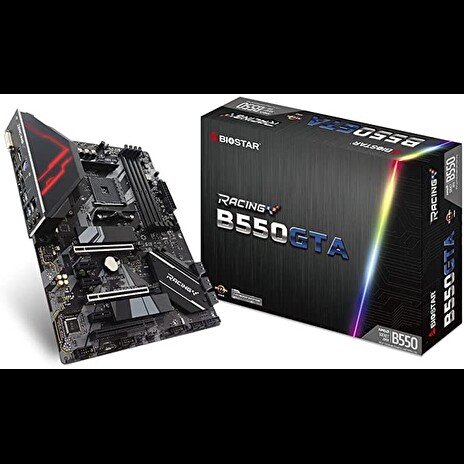

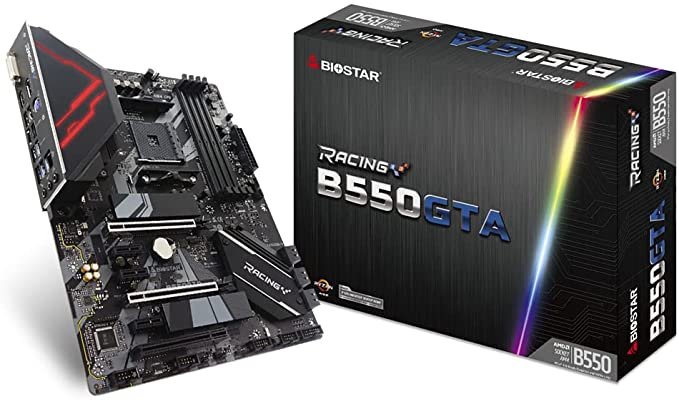

Biostar B550GTA, ATX, soc. AMD AM4, B550, DDR4
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

rychlé

Ověřený zákazník

Biostar B550GTA, ATX, soc. AMD AM4, B550, DDR4

Chipset AMD B550 CPU SUPPORT Socket AM4 support AMD 3rd Gen AMD Ryzen™ (Matisse / Renoir) processors and Ryzen™ 4th Gen (Vermeer) processors Support for future AMD Ryzen processors with BIOS update * Please refer to www.biostar.com.tw for CPU support list. MEMORY 3rd Gen AMD Ryzen Processors (Matisse CPUs) Support for…
Kategorie: Základní desky
Kód: 3164171PN: B550GTAZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
Aktuálně není v nabídce

Popis produktu

Chipset AMD B550
CPU SUPPORT Socket AM4 support AMD 3rd Gen AMD Ryzen™ (Matisse / Renoir) processors and Ryzen™ 4th Gen (Vermeer) processors
Support for future AMD Ryzen processors with BIOS update
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY 3rd Gen AMD Ryzen Processors (Matisse CPUs)
Support for DDR4 4400+(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866
3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs)
Support for DDR4 4933+(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4000(OC) / 3800(OC) / 3600(OC) / 3200 / 2933 / 2667 / 2400 / 2133 / 1866
4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB Memory
Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module
* DDR4 - 2667 only for Ryzen CPU.
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
STORAGE 6 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10
2 x M.2 (M Key) Socket:
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCIe 4.0 x 4 (64Gb/s)/ 3.0 x 4 (32Gb/s) - NVMe/ AHCI SSD
Supports SATA III (6.0Gb/s) SSD
* M.2 (M Key) Socket: The bandwidth is depended on CPU. Supports PCIe 4.0 x 4 (64Gb/s) speed, which depends only on
Ryzen 3rd Gen Matisse.
* When M2_PCIe-SATA2 slot is occupied by SATA mode, the SATA_2L connector will be disabled.
* When M2_PCIe-SATA2 slot is occupied by PCIe mode, the SATA_2U/SATA_2L connector will be disabled.
LAN RTL8125
10/ 100/ 1000/ 2500 Mb/s auto negotiation, Half / Full duplex capability
Supports Realtek 2.5GbE LAN
AUDIO CODEC ALC1150
7.1 Channels, High Definition Audio, Hi-Fi(Front)
USB 1 x USB 3.2 (Gen2) Type-C port (1 on rear I/O)
1 x USB 3.2 (Gen2) Type-A port (1 on rear I/O)
6 x USB 3.2 (Gen1) port (4 on rear I/Os and 2 via internal headers)
6 x USB 2.0 port (2 on rear I/Os and 4 via internal headers)
EXPANSION SLOT 1 x PCI Slot
1 x PCIe 4.0/ 3.0 x16 Slot (PEX16_1):
Supports x 16 lanes with AMD Ryzen™ 3rd Gen processors. (Matisse only)
Supports x8 lanes AMD Ryzen™ with Radeon Vega Graphics processors. (depended on CPU)
1 x PCIe 3.0 x 16 Slot (PEX16_SB_1): Supports x 4 lanes
3 x PCIe 3.0 x 1 Slot
* According to different CPUs will have different speeds.
* PCIe 4.0 speed only for AMD® Ryzen™ 3rd Gen Matisse.
* When using PCIe x 1 slots (PEX1_1/ PEX1_2/ PEX1_3 ), PCIe x 16 slot (PEX16_SB_1) will be adjusted to x1 lanes.
REAR I/O 1 x PS/2 Keyboard / Mouse
1 x DVI-D Port
1 x DP Port
1 x HDMI Port
1 x LAN port
1 x USB 3.2 (Gen2) Type-C Port
1 x USB 3.2 (Gen2) Type-A Port
4 x USB 3.2 (Gen1) Port
2 x USB 2.0 Port
3 x Audio Jack
INTERNAL I/O 6 x SATA III (6.0Gb/s) Connector
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x CPU water cooling connector (OPT_FAN1)
2 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Clear CMOS Header
1 x S/PDIF out Connector
1 x COM Port Header
2 x LED Header (5V)
1 x LED Header (12V)
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
System Voltage Monitoring
DIMENSION ATX Form Factor Dimension: 30.5cm x 24.4cm ( W x L )
OS SUPPORT Supports Windows 10(64bit)
?Biostar reserves the right to add or remove support for any OS with or without notice
BUNDLE SOFTWARE
BullGuard
ACCESSORIES 4 x SATA Cable
1 x DVD Driver
1 x User Manual
FEATURES VIVID LED DJ
M.2 Cooling Protection
A.I FAN
Iron Slot Protection
PCIe M.2 4.0
LED ROCK ZONE
Caution!! The specification and pictures are subject to change without notice!
