ASUS VGA NVIDIA GeForce TURBO RTX 3080 Ti 12G, RTX 3080 Ti, 12GB GDDR6X

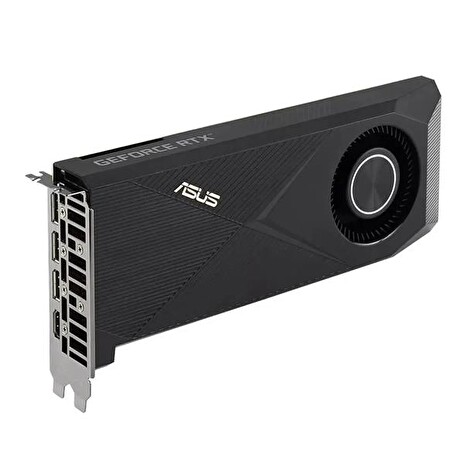

Turbo GeForce RTX™ 3080 V2

ASUS Turbo GeForce RTX™ 3080 V2 10GB GDDR6X with LHR features a refreshed design for environments with restricted airflow.

• NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world’s fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
• 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
• 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities.
• This GeForce RTX 3080 graphics card with LHR (lite hash rate) delivers 43 MH/s ETH hash rate (est.).
• A redesigned shroud incorporates angles on all edges for optimized airflow.
• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
• Auto-Extreme Technology uses automation to enhance reliability.

Graphic Engine

NVIDIA GeForce RTX™ 3080

Bus Standard

PCI Express 4.0

OpenGL

OpenGL4.6

Video Memory

10GB GDDR6X

Engine Clock

OC mode : 1740 MHz (Boost Clock)
Gaming mode : 1710 MHz (Boost Clock)/ 1440 MHz (Base Clock)

CUDA Core

8704

Memory Speed

19 Gbps

Memory Interface

320-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 1 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

Software

ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions

26.8 x 11.3 x 3.9 cm
10.54 x 4.45 x 1.53 inches

Recommended PSU

850W

Power Connectors

2 x 8-pin

Slot

2 Slot

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
