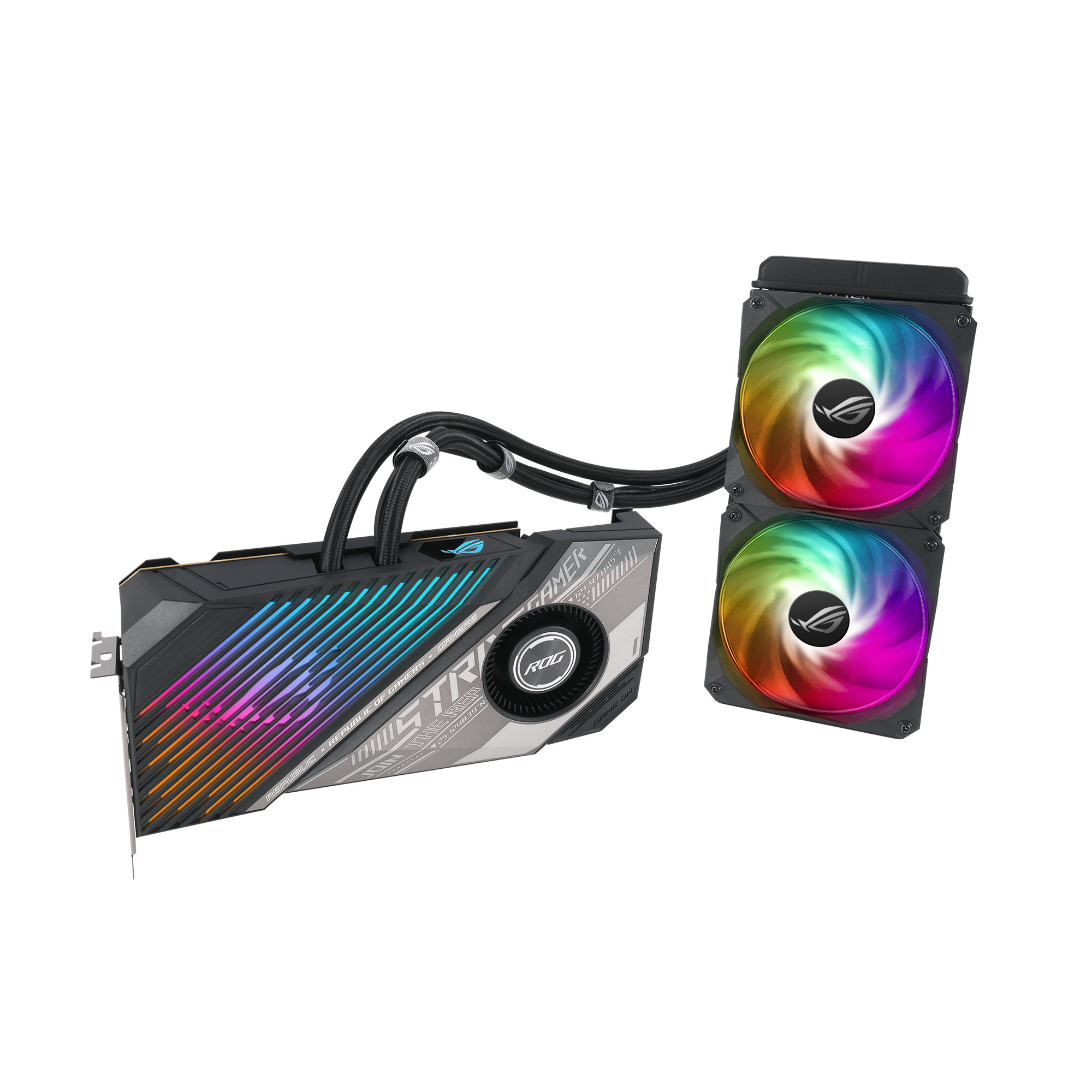

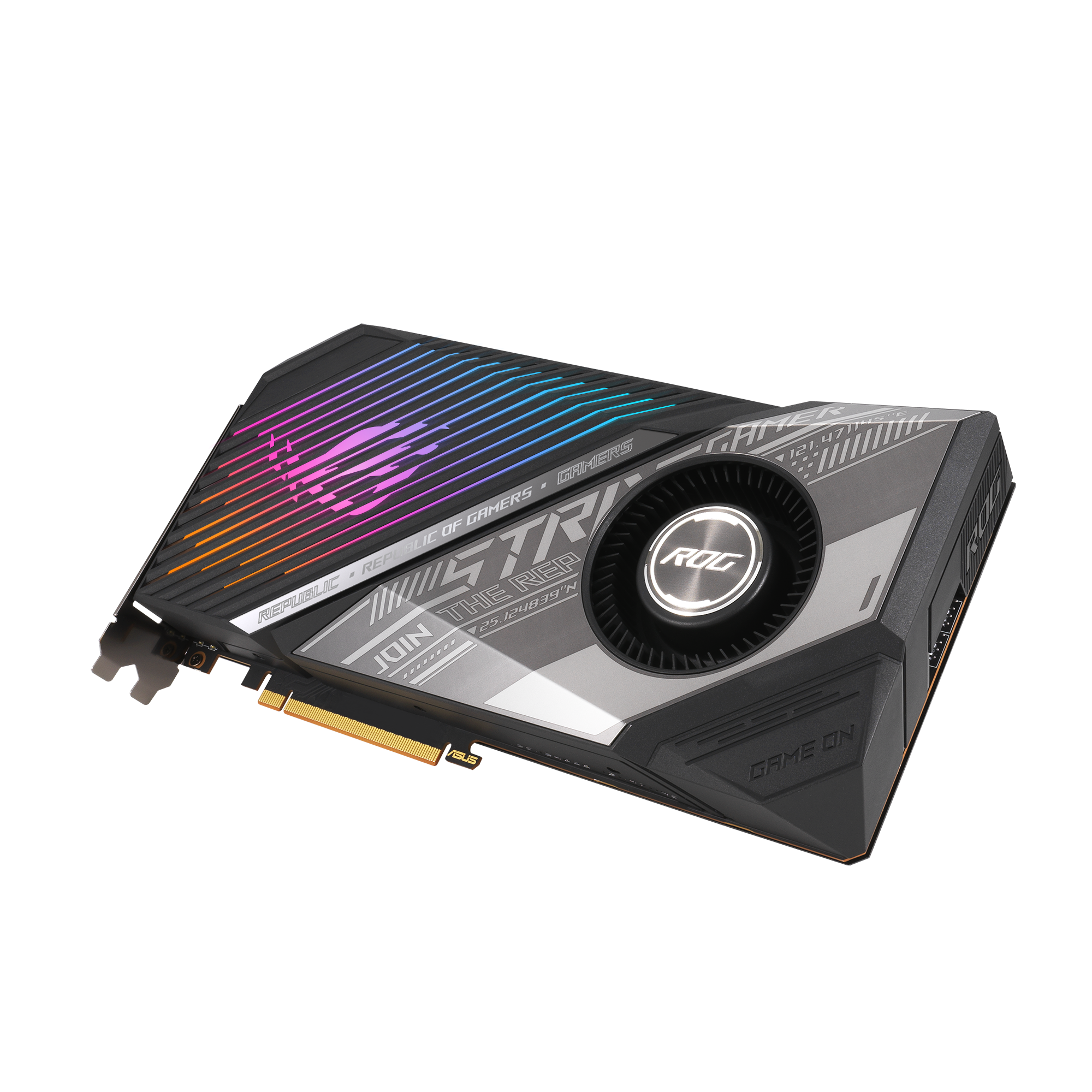

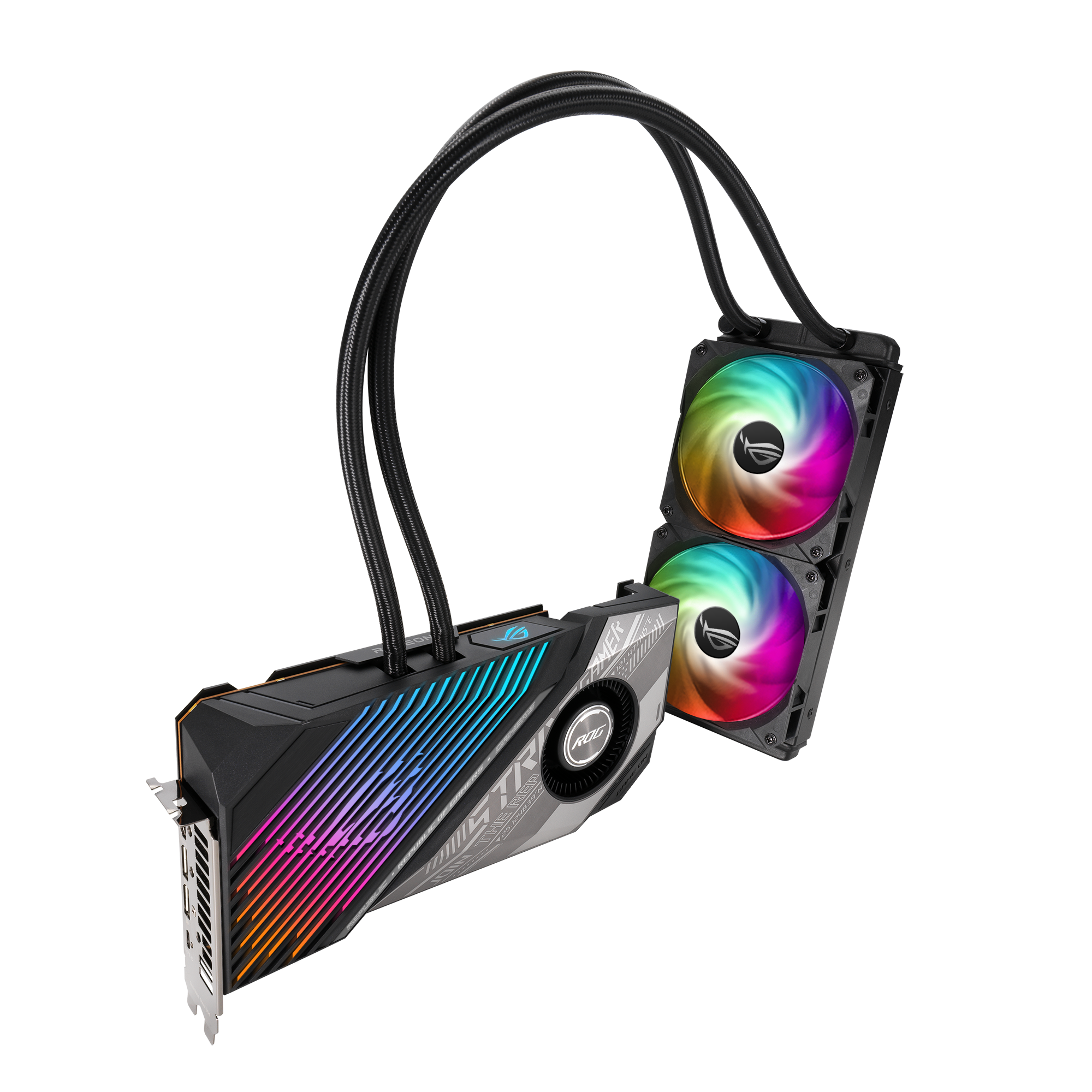

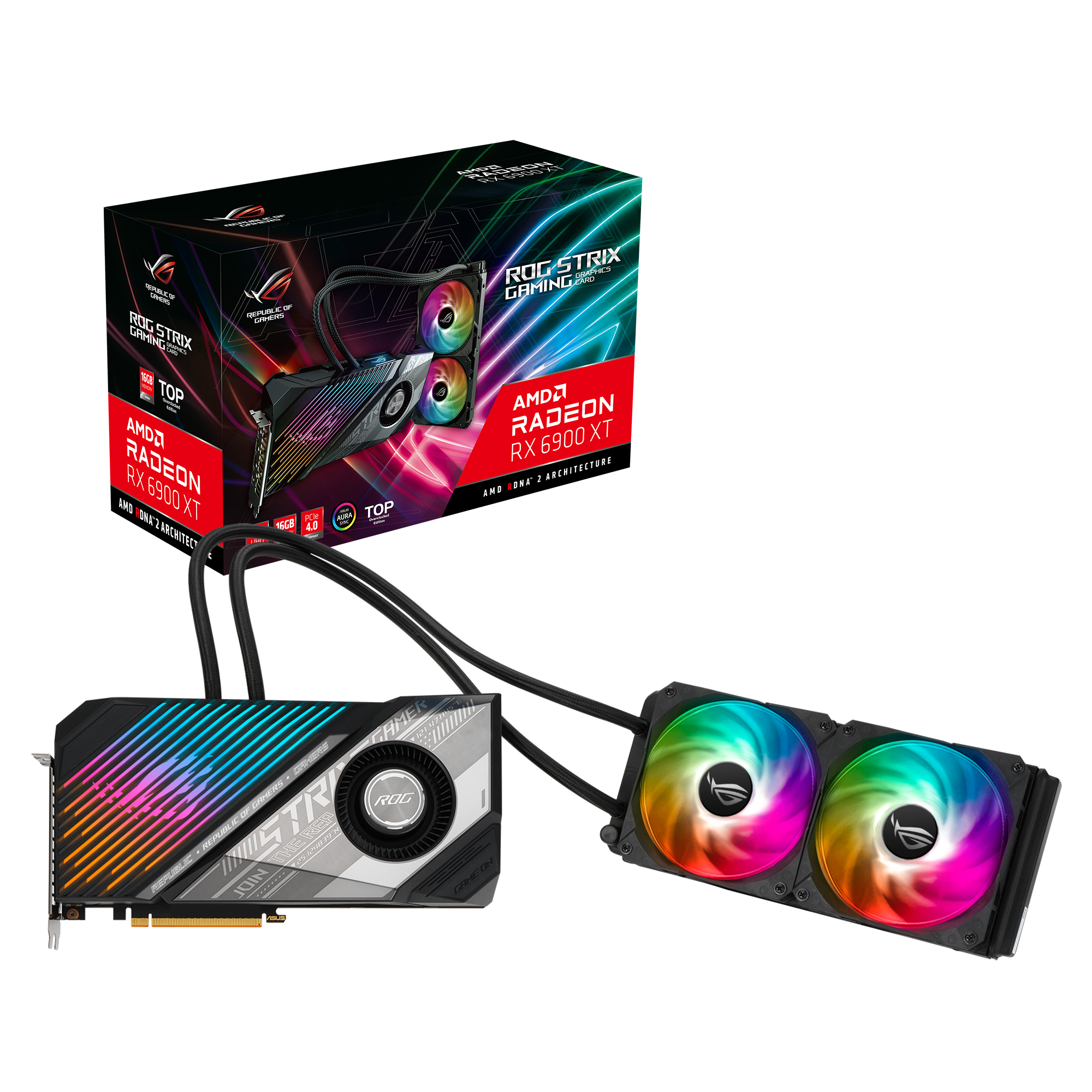

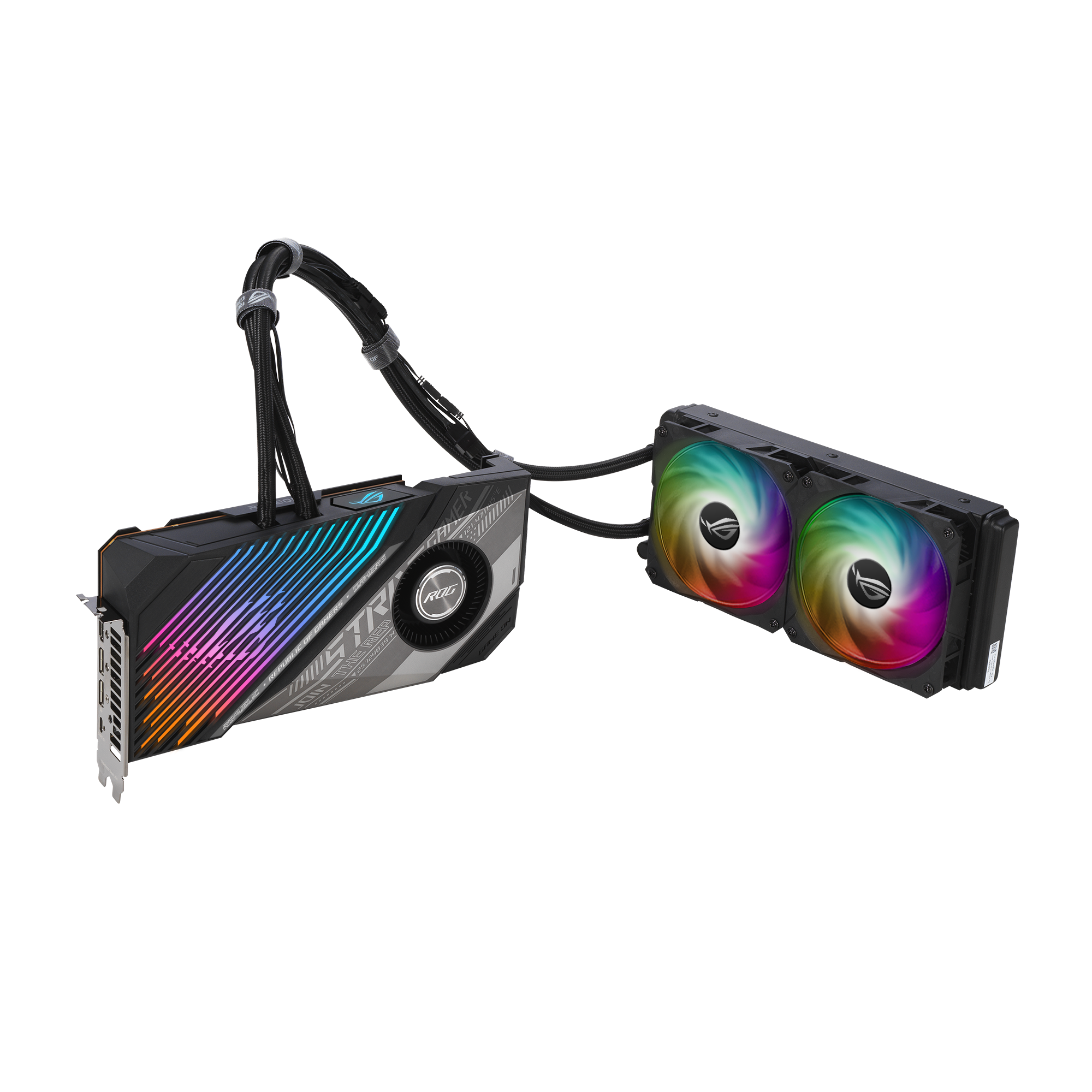

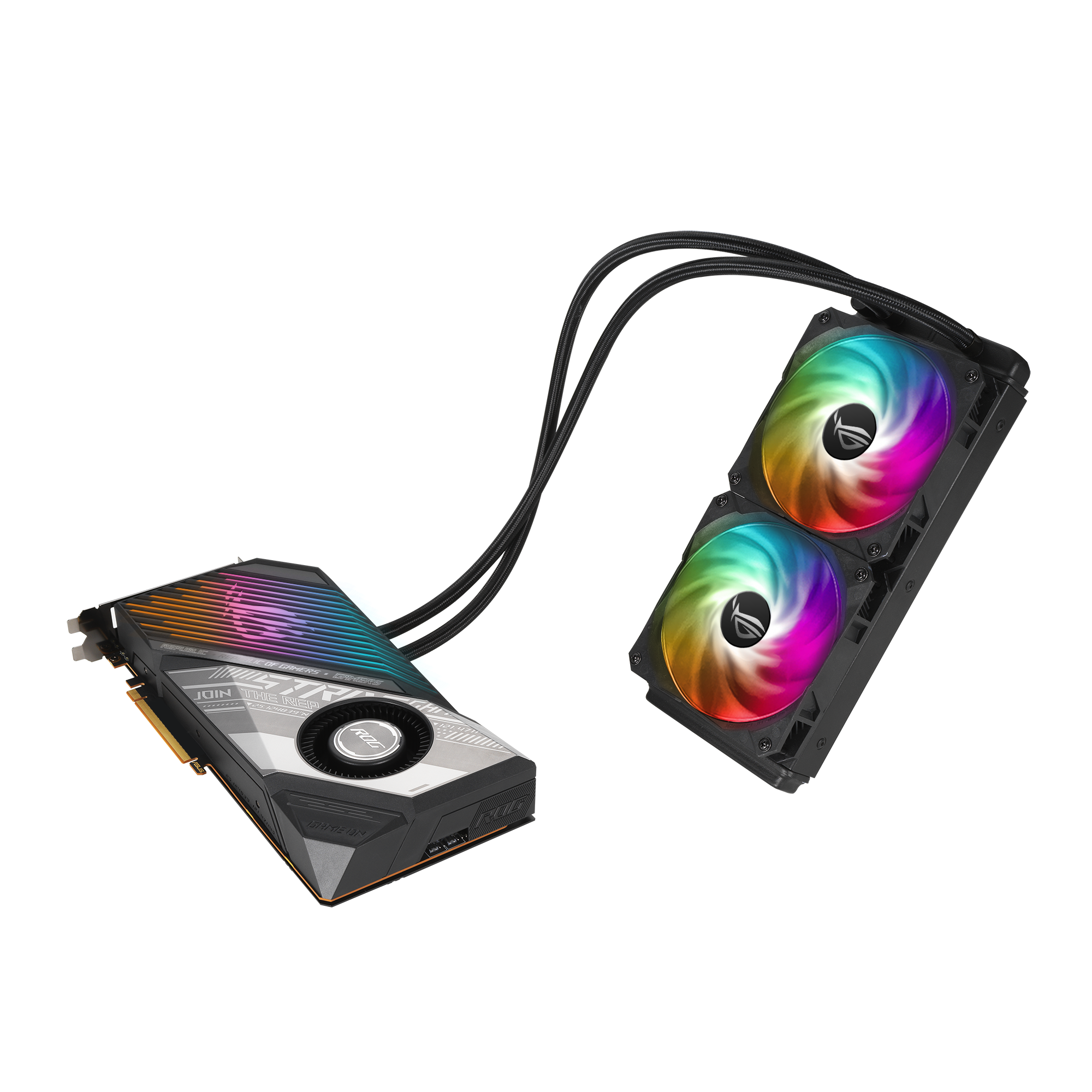

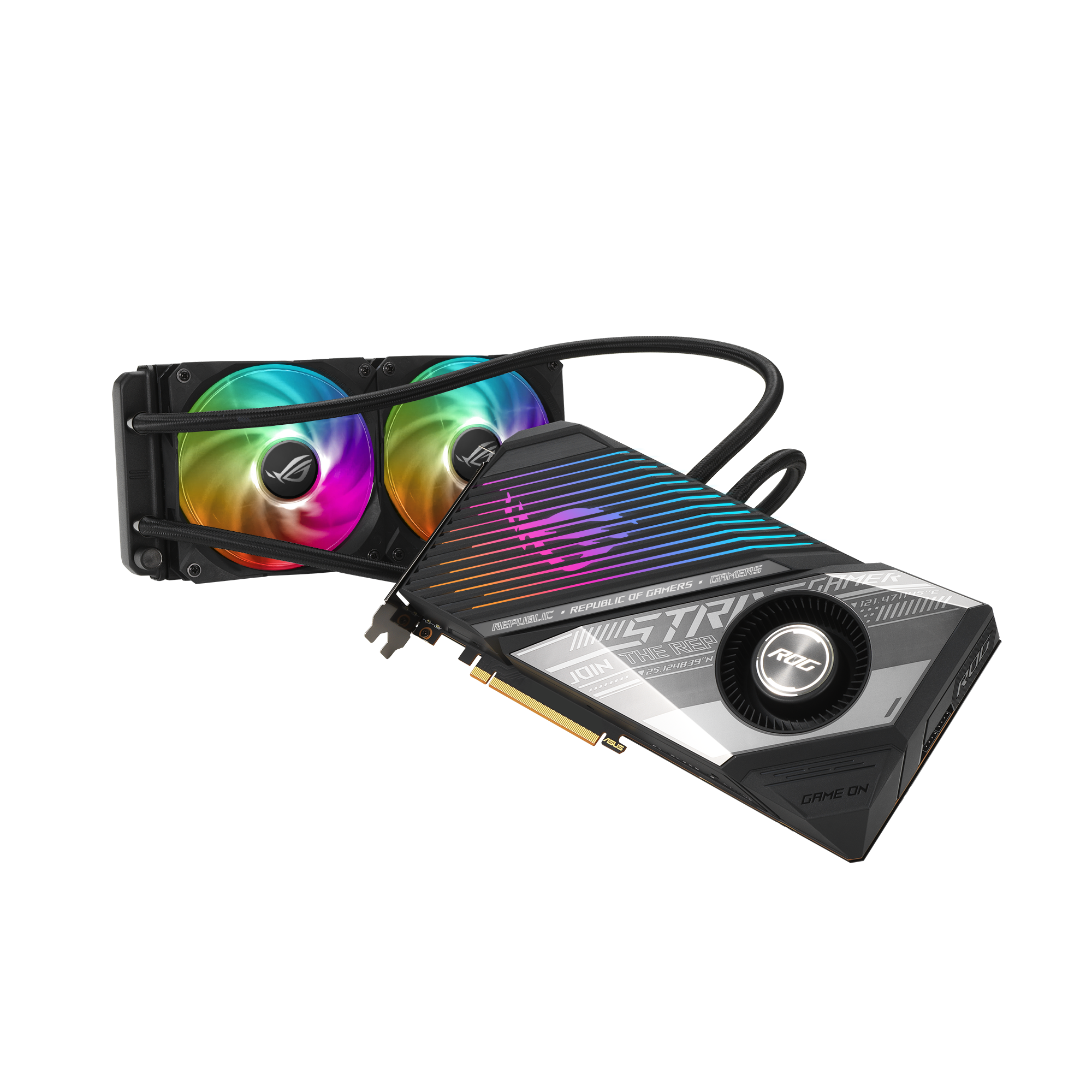

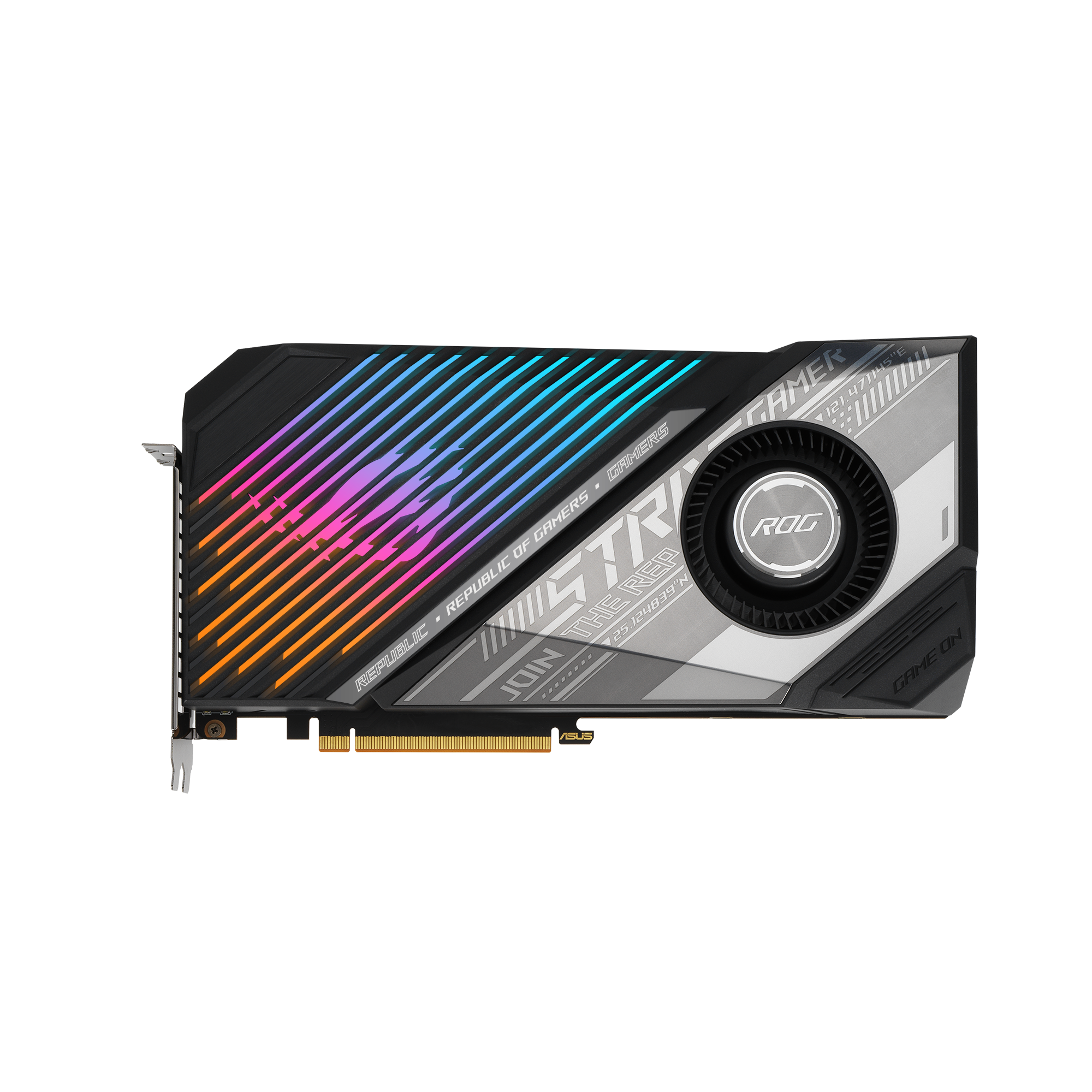

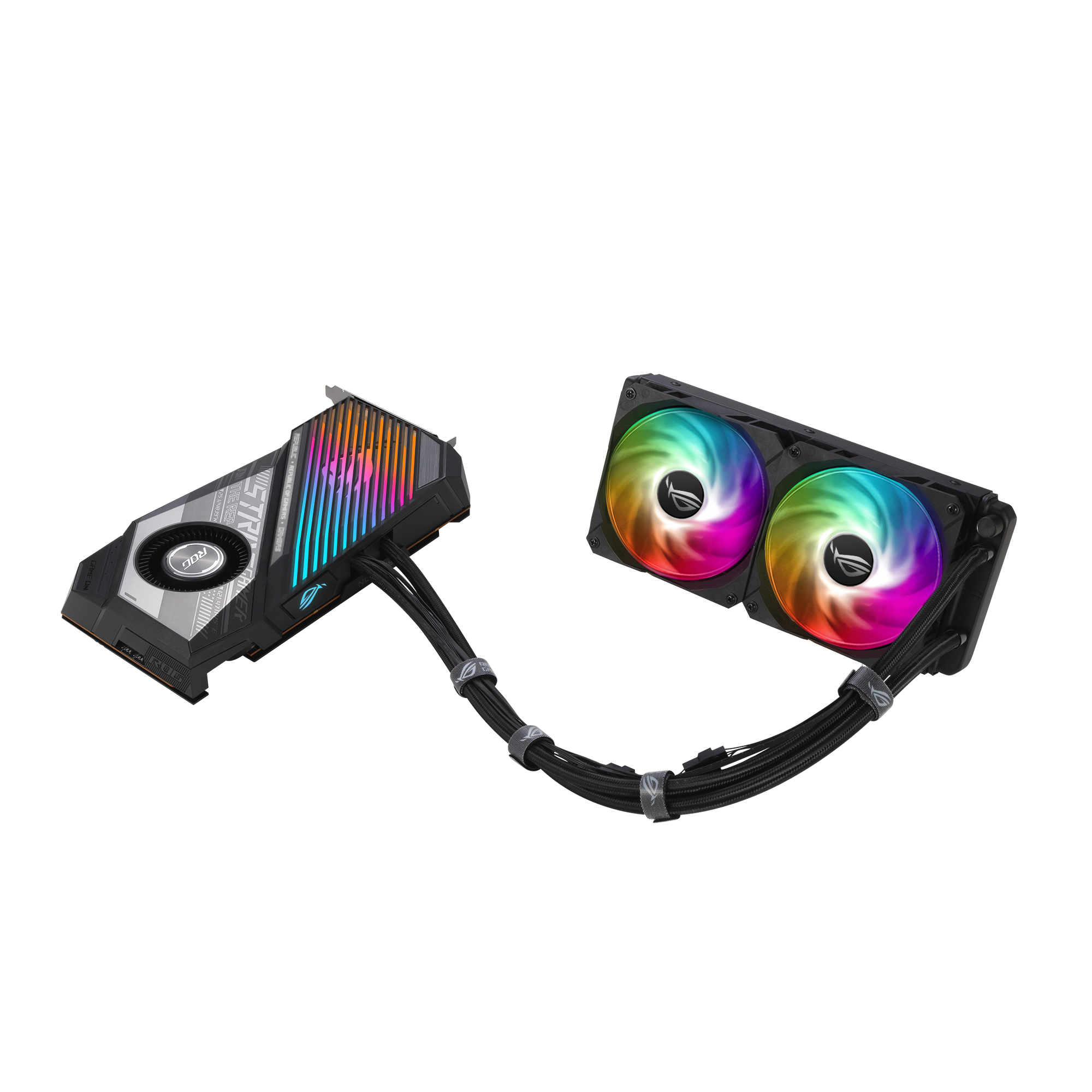

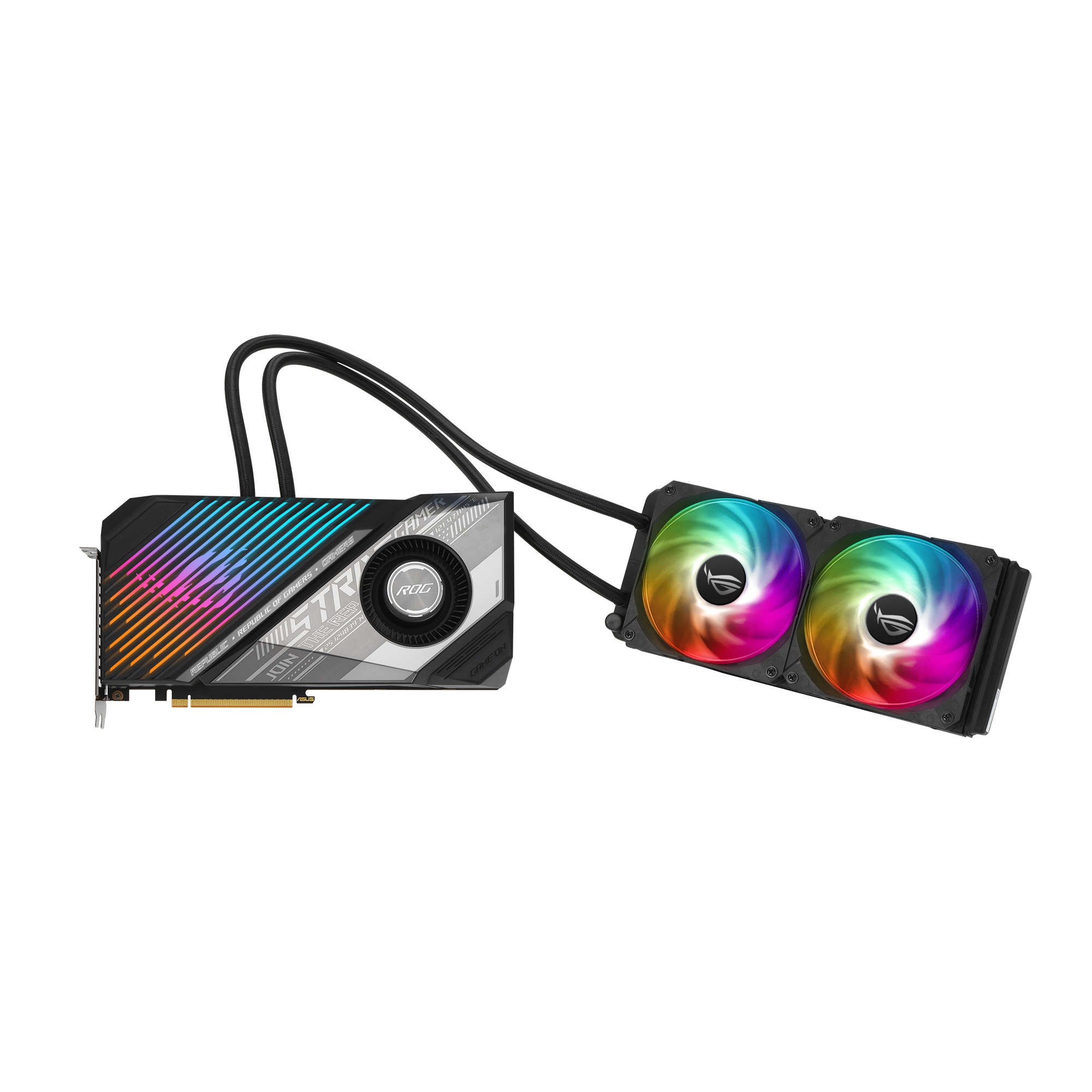

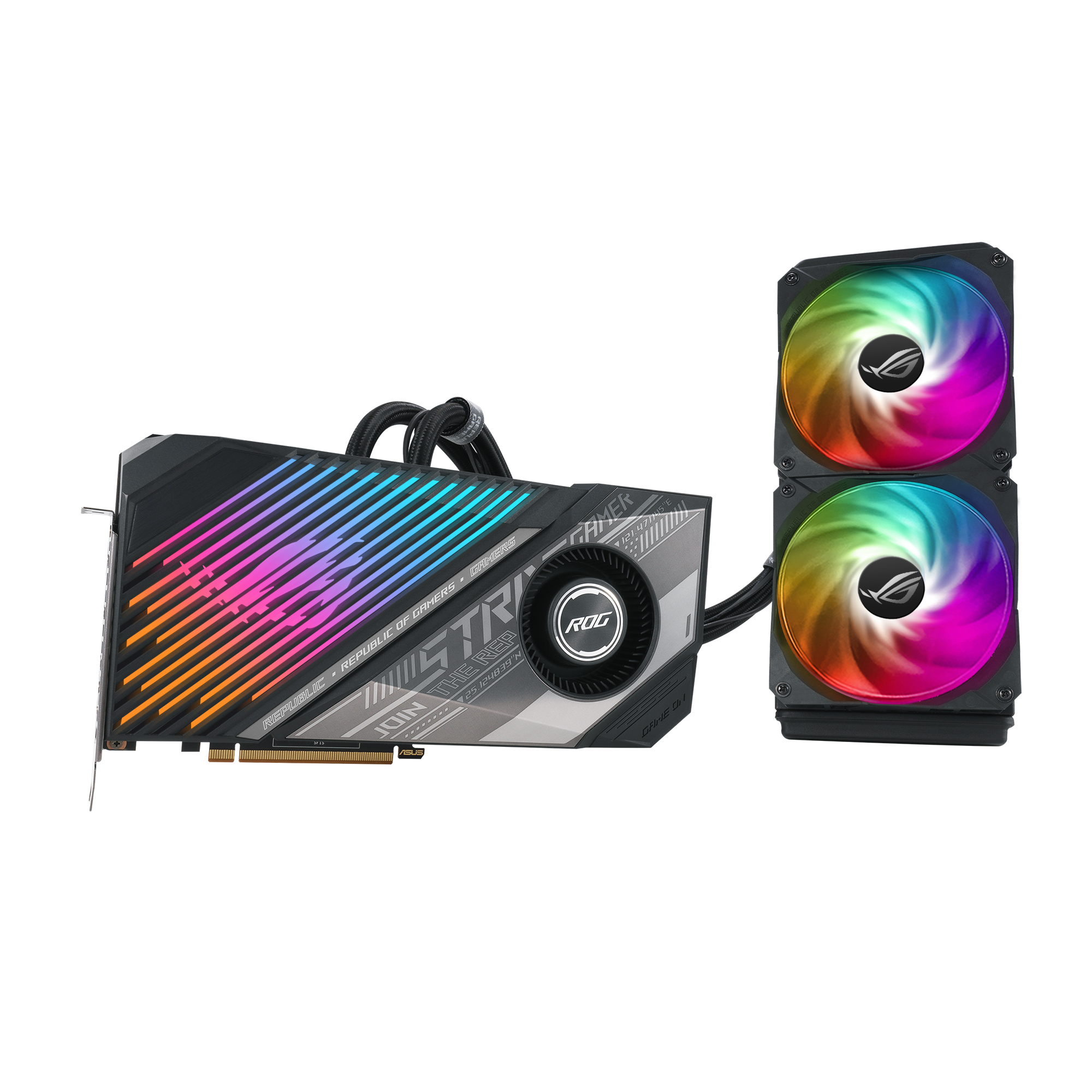

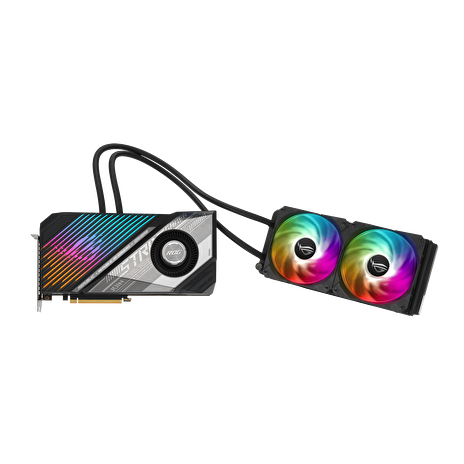

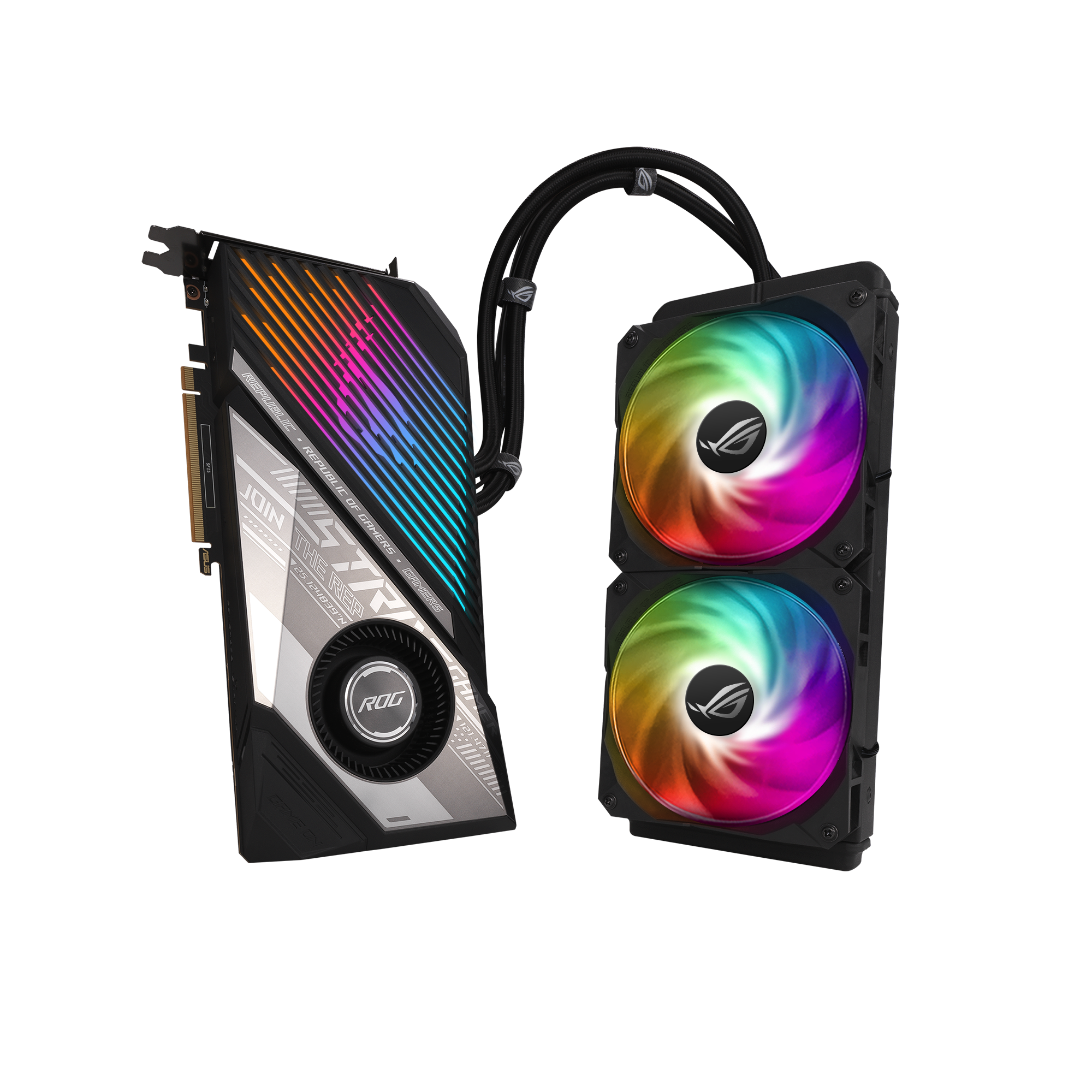

ROG Strix LC Radeon™ RX 6900 XT is a liquid-cooled leviathan.

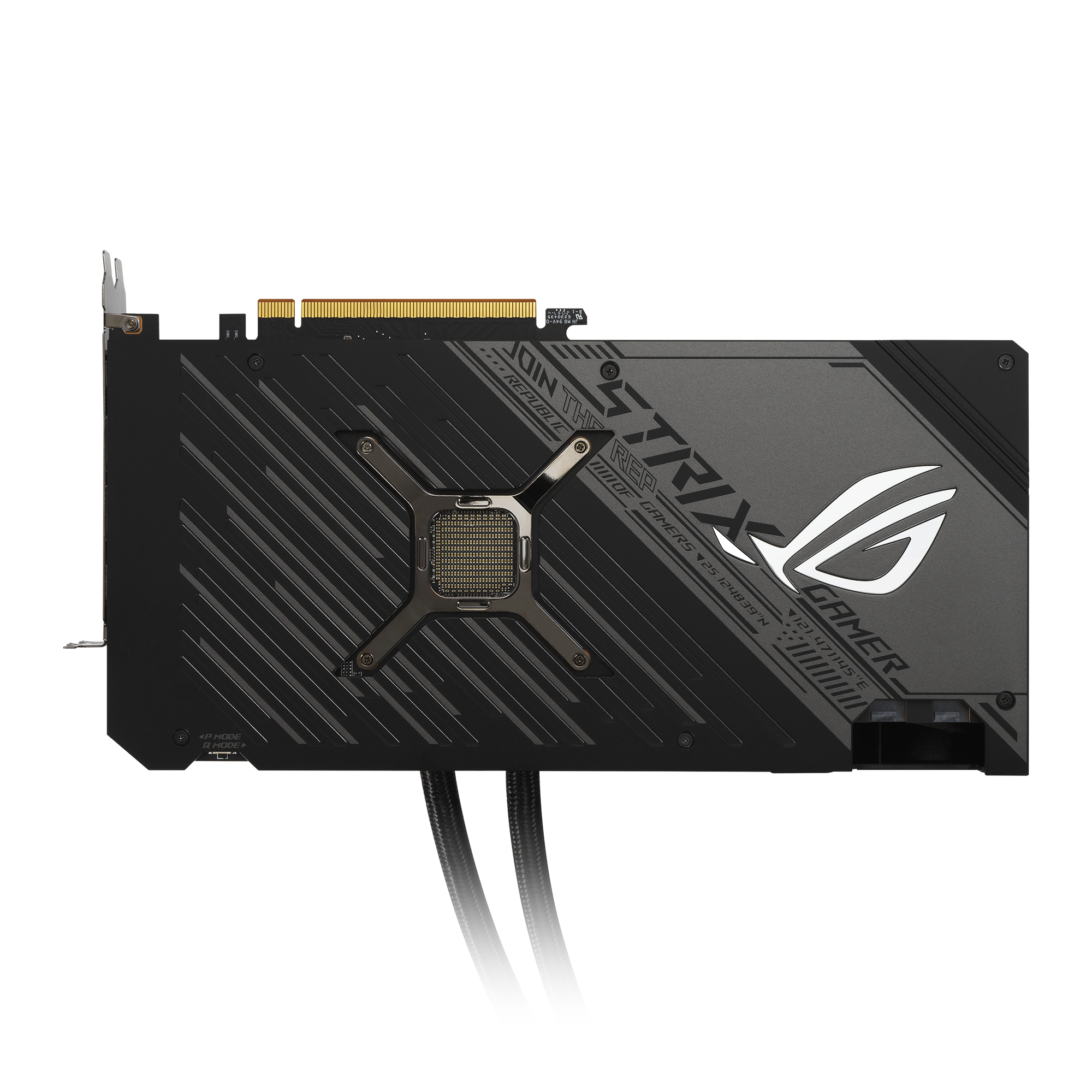

Full-coverage cold plate brings liquid cooling to GPU die and
On-board cooling for power-delivery is handled by a blower-style
fan and low-profile heatsink.

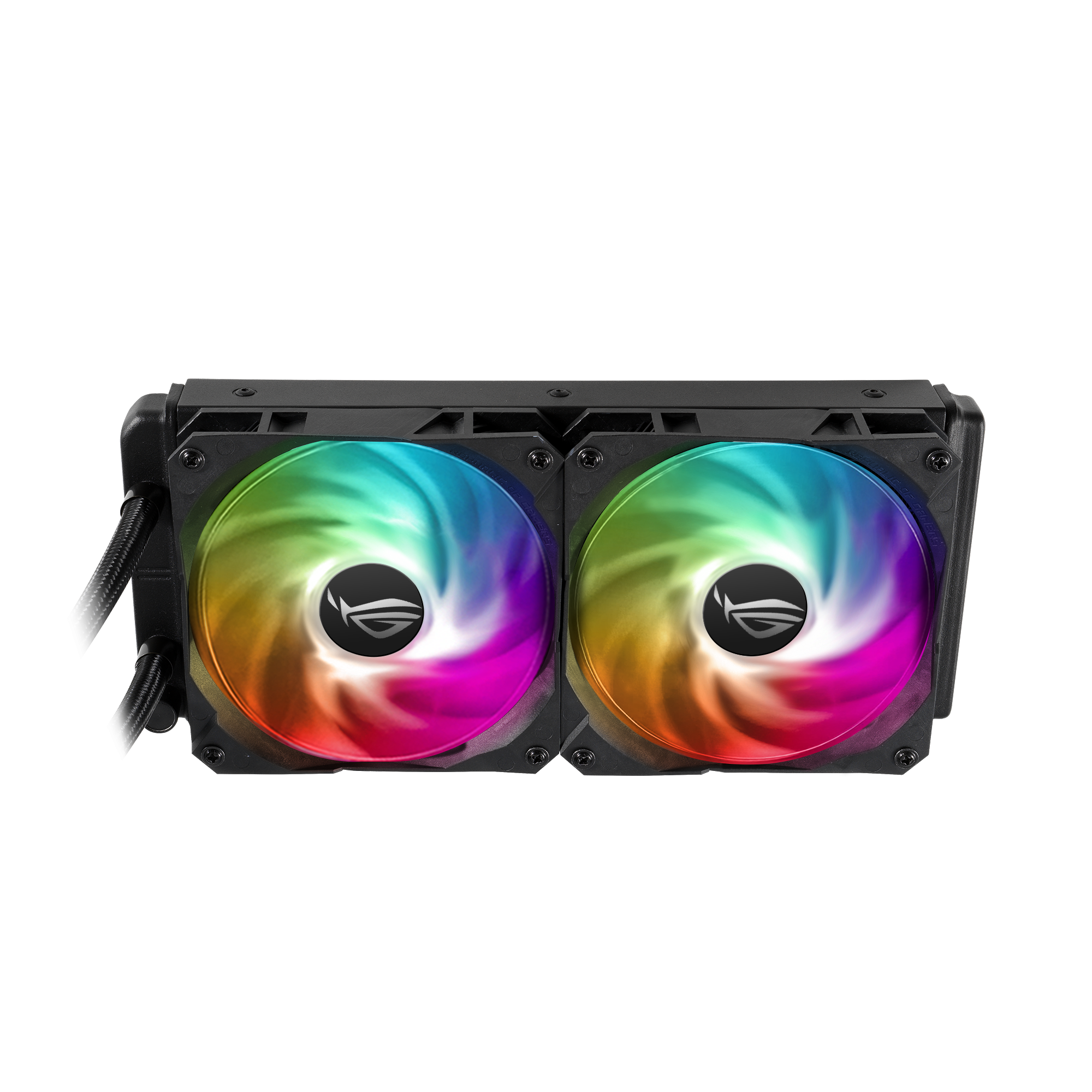

240mm radiator balances compatibility and performance.
600mm tubing for compatibility with EATX chassis and alternative
Super Alloy Power II includes premium alloy chokes, solid polymer
capacitors, and an array of high-current power stages.
ASUS FanConnect II equips a hybrid-controlled fan header for
optimal system cooling.
GPU Tweak II provides intuitive performance tweaking, thermal
controls, and system monitoring.
AMD Radeon RX 6900 XT
PCI Express 4.0
Gaming mode : Up to 2525 MHz (Boost Clock)/ Up to 2375 MHz (Game
Digital Max Resolution 7680 x 4320

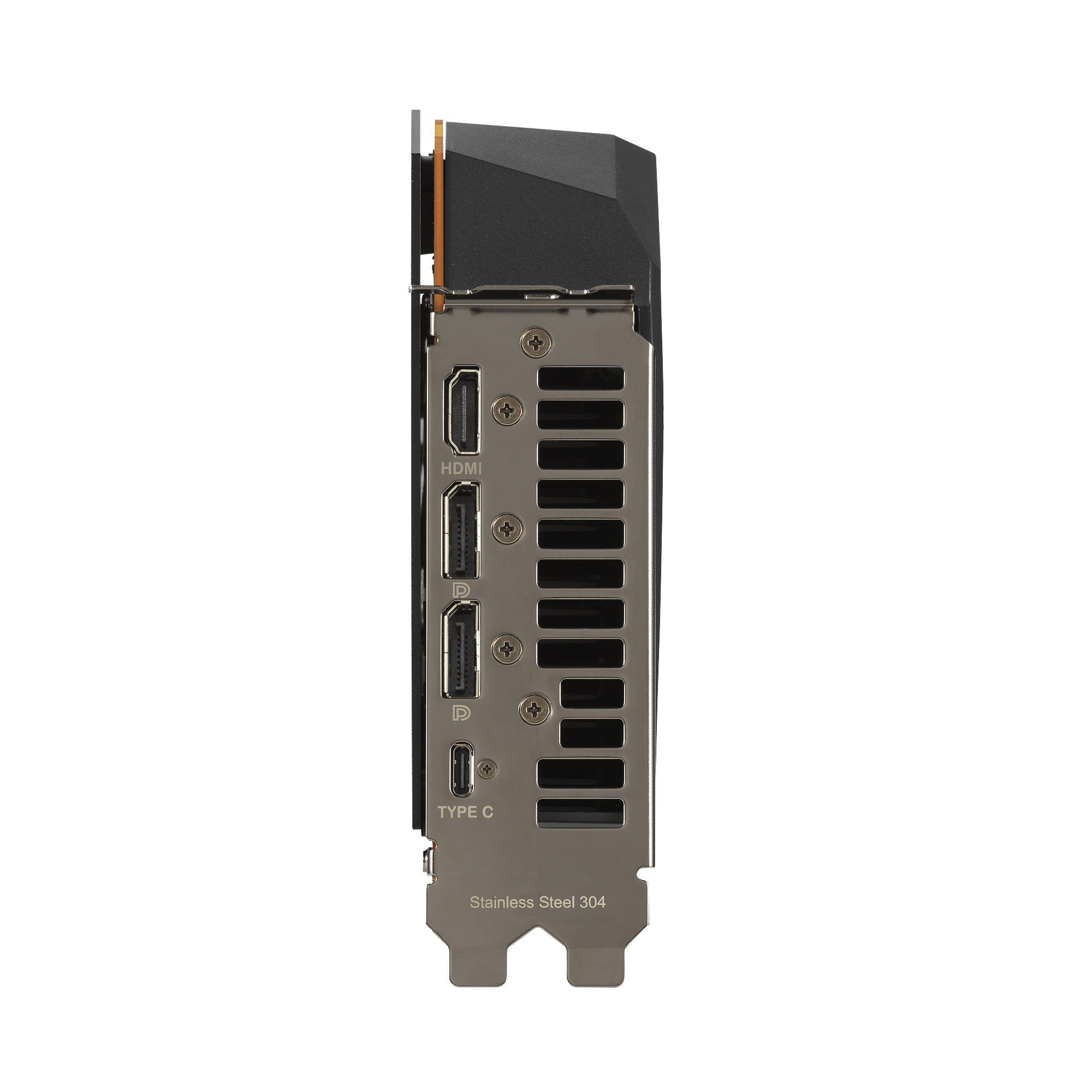

Yes x 1 (Native HDMI 2.1)
Yes x 2 (Native DisplayPort 1.4a)
Yes x 1 (USB Type-C)
HDCP Support Yes (2.3)
Maximum Display Support
NVlink/ Crossfire Support
1 x ROG Velcro Hook & Loop
1 x ASUS ruler
1 x Collection card
1 x Speedsetup manual
1 x Cable ties pack(s)
ASUS GPU Tweak II & Drivers: please download all software from the
Card : 27.7 x 13.1 x 4.36 Centimeter
Radiator 27.6 x 12 x 5.17 Centimeter (including fan)
3 x 8-pin
* Crossfire Support for DirecX® 12 and Vulkan®
* ‘Game Clock’ is the expected GPU clock when running typical
gaming applications, set to typical TGP (Total Graphics Power).
Actual individual game clock results may vary.
* ‘Boost Clock’ is the maximum frequency achievable on the GPU
running a bursty workload. Boost clock achievability, frequency,
and sustainability will vary based on several factors, including
but not limited to: thermal conditions and variation in
applications and workloads.
