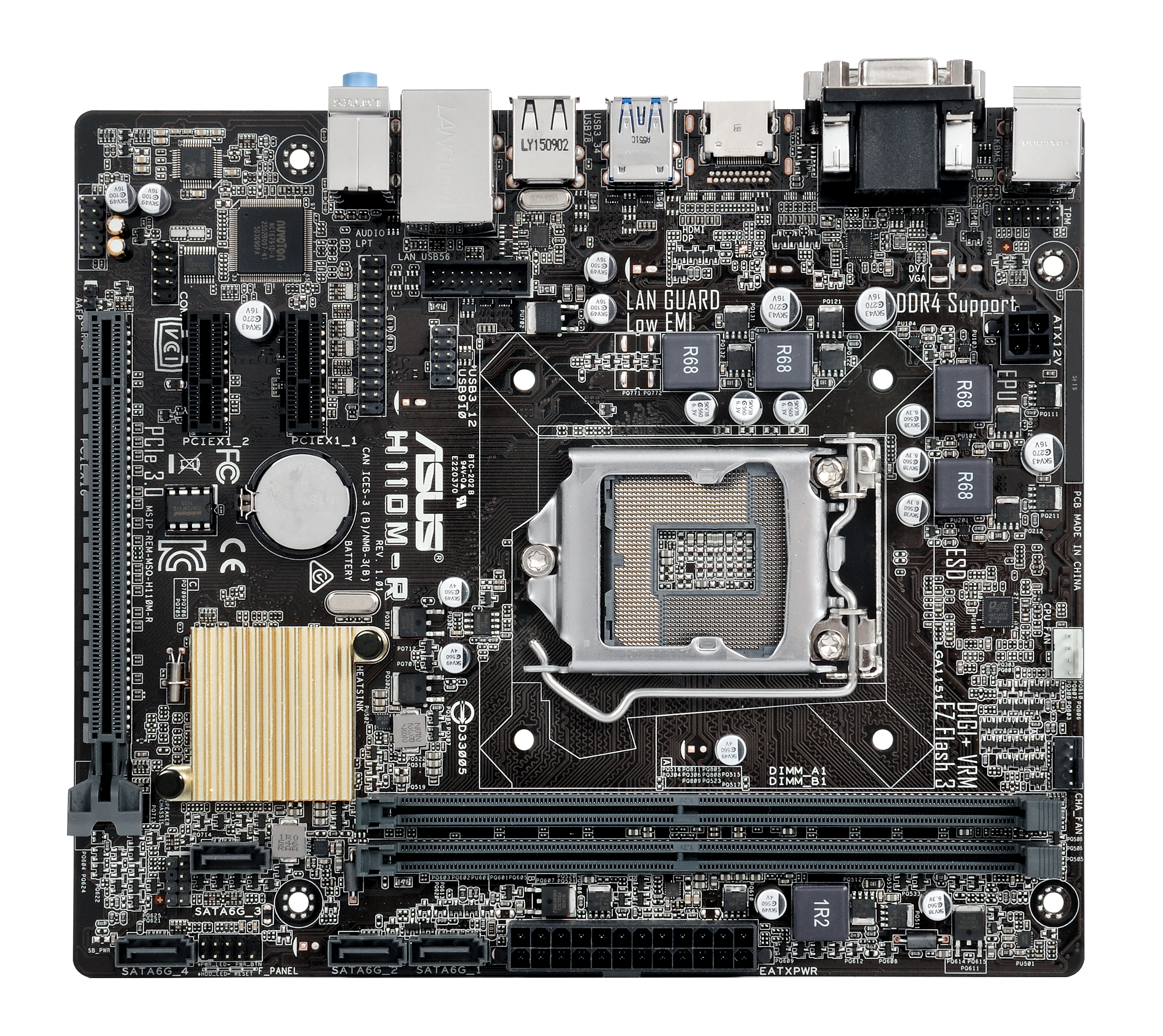

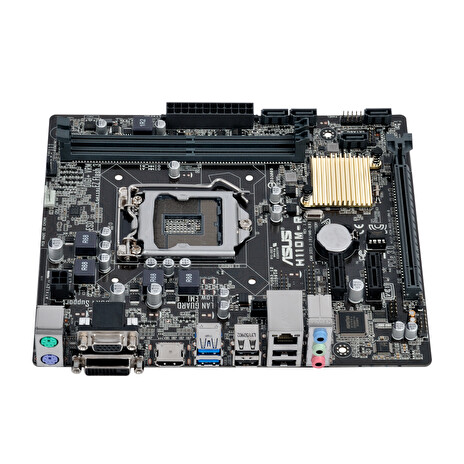

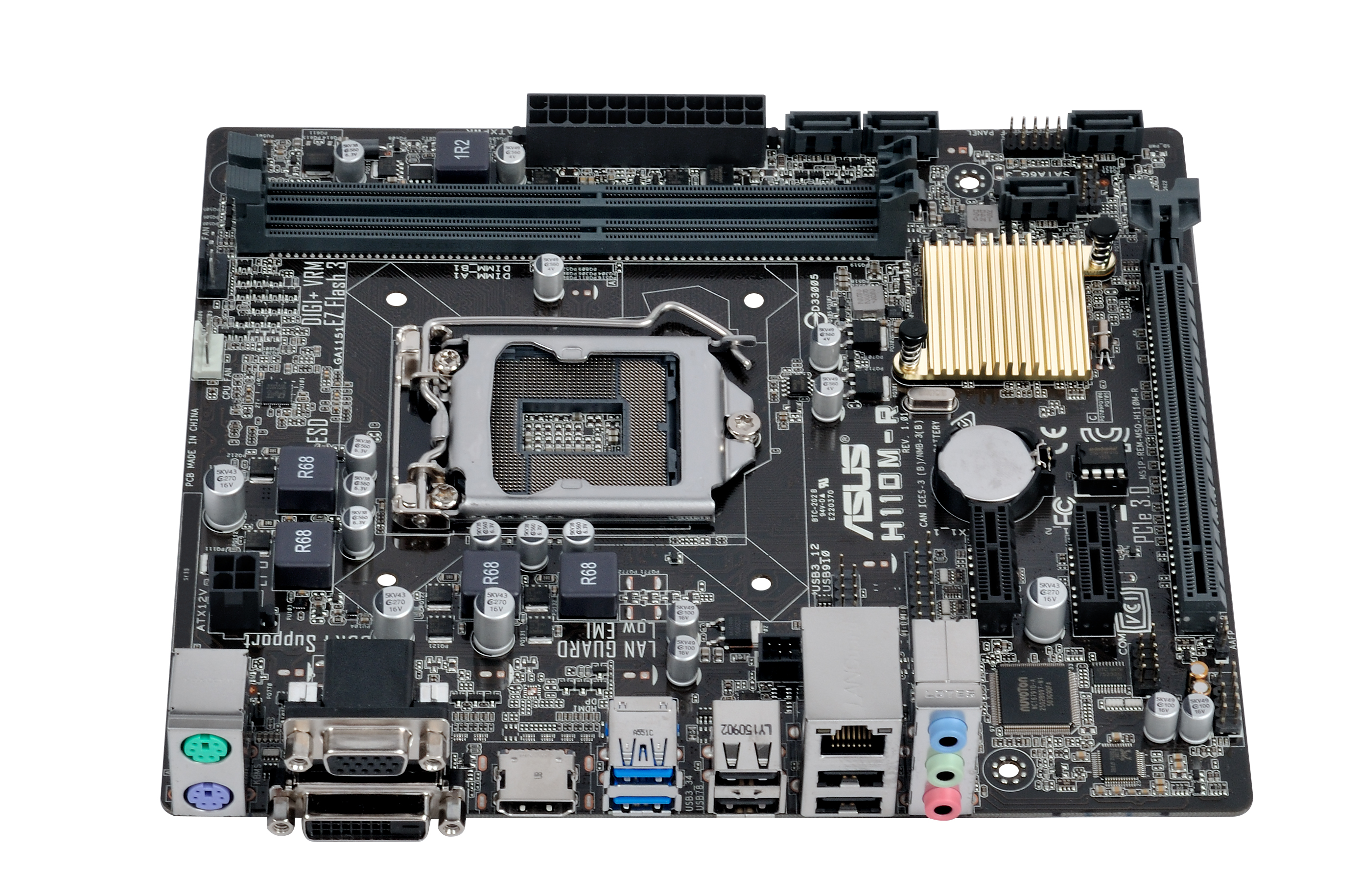

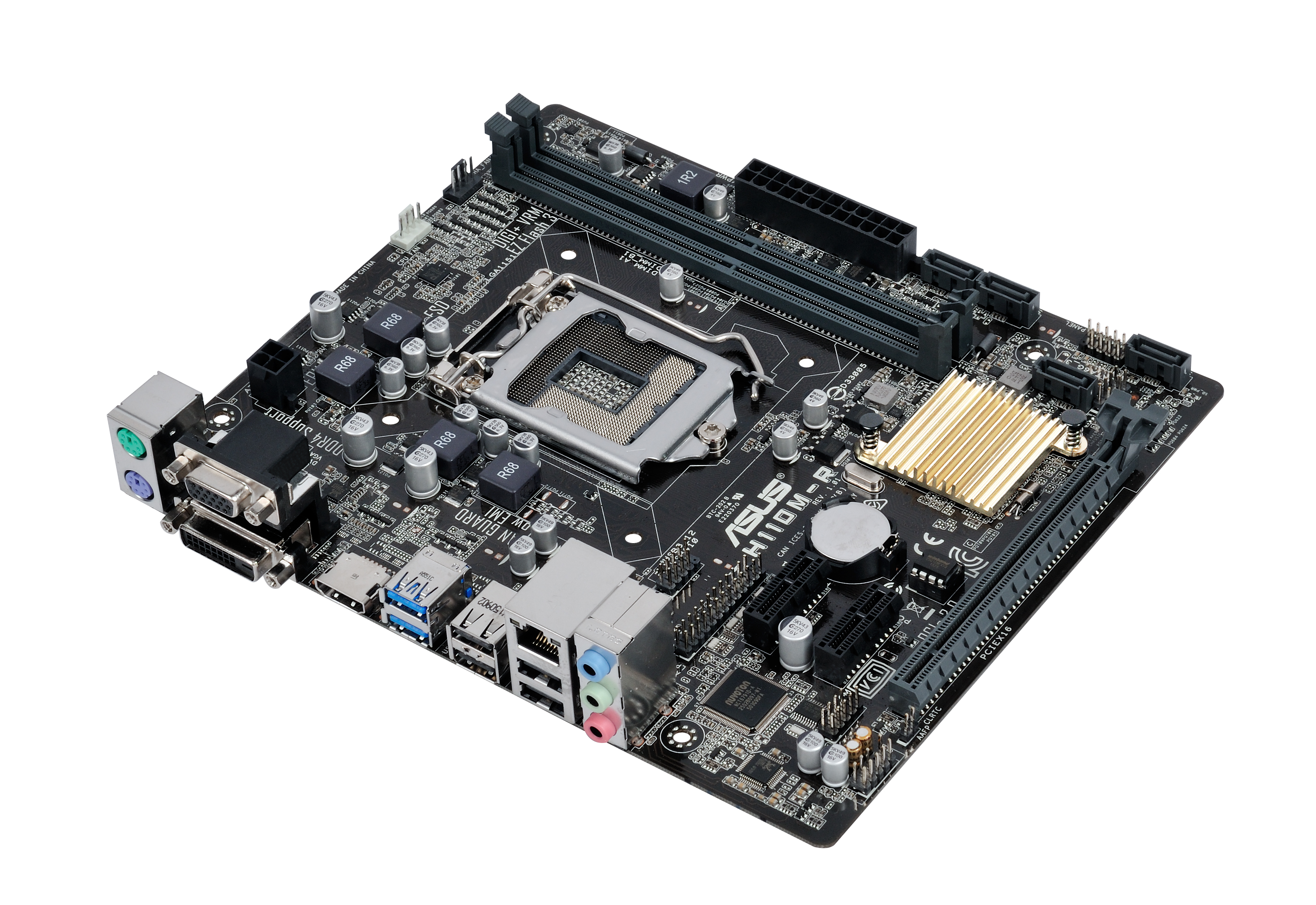

ASUS H110M-R/C/SI - White box, soc.1151 - základní deska

MicroATX základní deska Asus H110-R pro procesory 6 generace (LGA1151)

Formát
* uATX Form Factor, 8.3”x 7.1” (21.08cm x 18.03cm)

CPU
* LGA1151 socket for 6th Generation Intel® Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors
* Supports 14nm CPU
* Supports Intel® Turbo Boost Technology 2.0

Čipová sada
* Intel® H110 Express Chipset

Operační paměť
* 2 x DIMM, max. 32GB, DDR4 2133 MHz, non-ECC, un-buffered memory
* Dual channel memory architecture
* Supports Intel® Extreme Memory Profile (XMP)

Grafická karta
* Integrated Graphics Processor - Intel® HD Graphics support
* Multi-VGA output support: HDMI/DVI-D/D-Sub port
* Supports up to 2 displays simultaneously
* Maximum shared memory of 1024MB

Rozšiřující sloty
* 1 x PCI Express 3.0/2.0 x16 slot (@ x16 mode)
* 2 x PCI Express 2.0 x1 slots

Úložný prostor
* Intel® H110 Express Chipset and Intel Rapid Storage Technology 14 support: 4 x Serial ATA 6.0 Gb/s connectors (gray)

LAN
* Realtek® 8111H Gigabit LAN support LANGuard

Zvuk
* Realtek® ALC887 8-channel* High Definition Audio CODEC

USB Porty
* Intel® H110 Express Chipset: 4 x USB 3.0/2.0 ports (2 ports @ mid-board, 2 ports @ back panel)
* Intel® H110 Express Chipset: 6 x USB 2.0/1.1 ports (2 ports @ mid-board, 4 ports @ back panel)

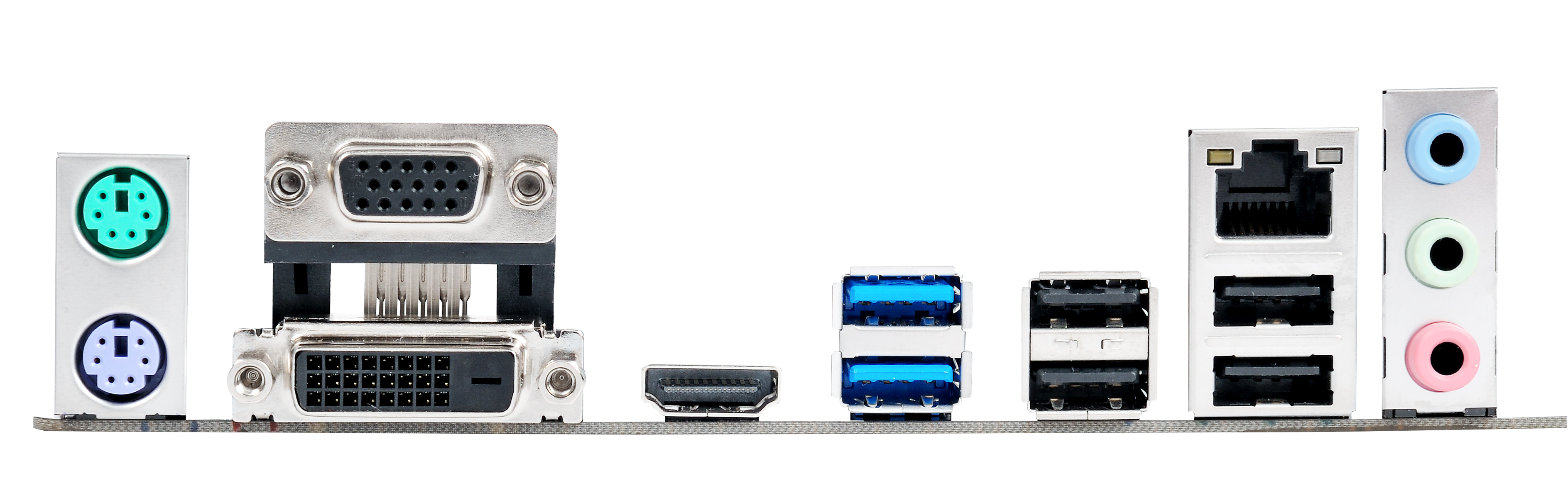

Zadní vstupy a výstupy
* 1 x PS/2 keyboard (purple)
* 1 x PS/2 mouse port (green)
* 2 x USB 3.0/2.0 ports
* 4 x USB 2.0/1.1 ports
* 1 x HDMI port
* 1 x DVI port
* 1 x D-Sub port
* 1 x LAN (RJ-45) port
* 3 x Audio jacks support 8-channel audio output

Vnitřní vstupy a výstupy
* 1 x USB 3.0/2.0 connectors support additional 2 USB 3.0/2.0 ports
* 1 x USB 2.0/1.1 connectors support additional 2 USB 2.0/1.1 ports
* 4 x SATA 6.0Gb/s connectors
* 1 x 4-pin CPU Fan connector for 4-pin PWM mode
* 1 x 4-pin Chassis Fan connector for 4-pin PWM mode
* 1 x Front panel audio connector (AAFP)
* 1 x COM header
* 1 x LPT header
* 1 x 24-pin EATX Power connector
* 1 x 4-pin ATX 12V Power connector
* 1 x 14-1 pin TPM header
* 1 x Speaker connector
* 1 x Chassis Intrusion header
* 1 x System Panel connector

Příslušenství
* 2 x Serial ATA 6.0Gb/s cables
* 1 x I/O shield
* 1 x Support DVD
* 1 x User's manual

Více informací naleznete v datasheetu (záložka download)
