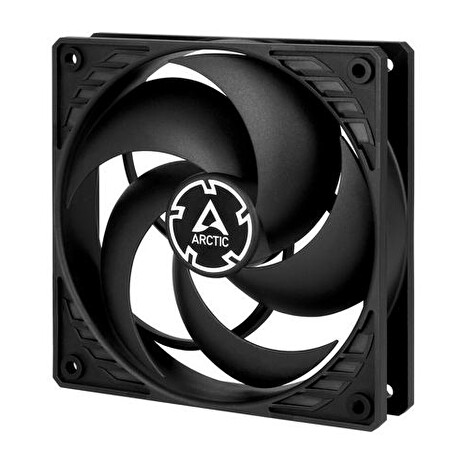

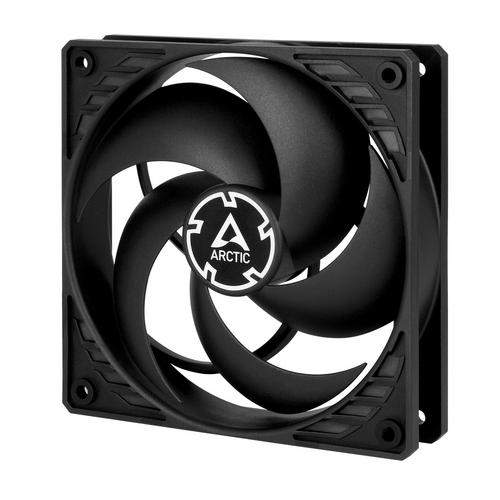

ARCTIC P12 ventilátor - 120mm

During the development of the new P12, special emphasis was placed on a focused airstream and thus a high static
pressure. The fan guarantees extremely efficient cooling, even with increased air resistance.
Therefore, the P12 is particularly suitable for use on heatsinks and radiators.

Performance
Fan:
120 mm, 1 800 RPM (@12 V DC)
Air Flow:
56.3 CFM (95.65 m3/h)
Noise Level:
0.3 Sone (@ 1 800 RPM)
Electrical Characteristics
Typical Voltage:
+ 12 V DC
Start-up Voltage:
2.8 V DC
Cable Length:
400 mm

Voltage Current
12 V DC (Norminal) 0.20 A
7 V DC 0.08 A
5V DC 0.06 A
Connection
Motherboard:
+ 12 V DC

3-pin Connector
