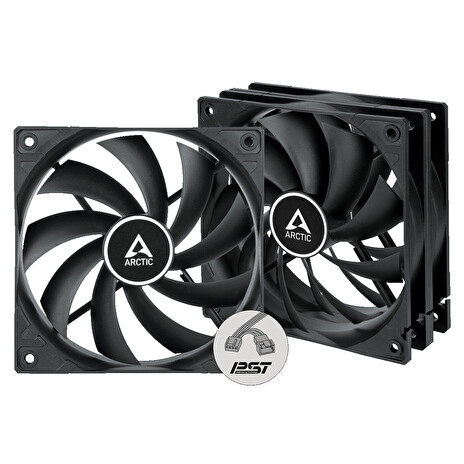

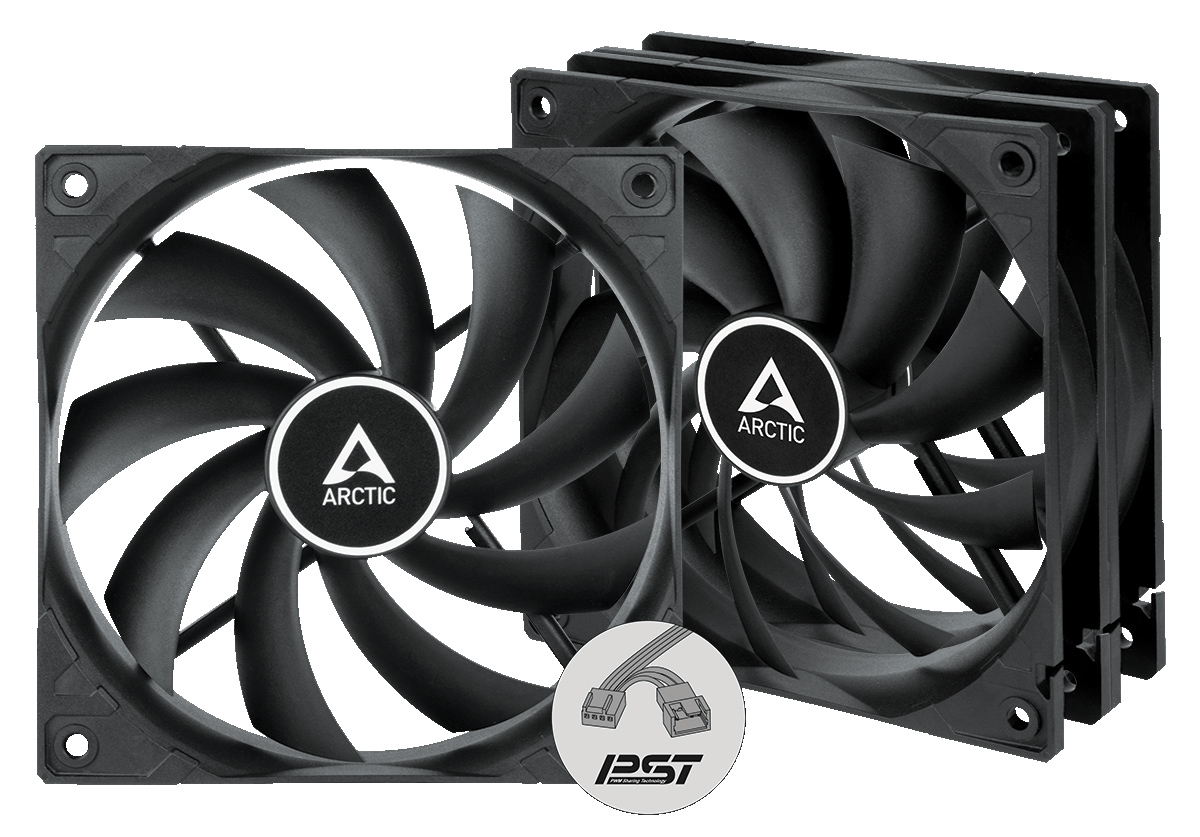

F12 PWM PST 120 mm PWM Case Fan
LONG SERVICE LIFE
The Fluid Dynamic Bearing comes with an oil capsule that avoids
lubricant leakage. Thus this bearing is as quiet as a sleeve
bearing but comes with a significantly higher service life
PERFECT CASE FAN REGULATION WITH PWM
The PWM function allows the motherboard to run the fan precisely at
its necessary speed. This guarantees the required cooling and
minimizes the noise level.
PWM SHARING TECHNOLOGY (PST) LOWERS NOISE
If you want to improve the cooling efficiency of your computer you
get several case fans working in parallel (since it takes 10 fans
to double the noise level). But what does it help if they don't
work together? The PST assures that all of your fans listen to one
control signal. E.g. you share the CPU Cooler's PWM signal and
assure that your case fans stand down at low load and spin up
whenever necessary.
INNOVATIVE DESIGN ENABLES QUIET AND EFFICIENT VENTILATION
The innovative design of the fan blades improves the air flow and
facilitates a highly efficient ventilation. The impeller was
designed with a focus on minimzing the noise level yet delivering
the desired airflow and pressure.
TWO WAY INSTALLATION
Blow warm air out of the case
Draw cool air into your case
QUALITY YOU CAN RELY ON
To ensure the longevity of our products, we carry out long-term
tests under different, sometimes very adverse conditions. In this
way, we learn how we can permanently improve our products for our
customers. In addition, the excellent results of long-term testing
give us the assurance that our products are not only outstanding in
terms of quality, but also in terms of durability. This is a
certainty that we are happy to pass on to our customers, which is
why we give a 6-year manufacturer's guarantee on the F12 PWM PST.
TECHNICAL SPECIFICATIONS & MANUAL
General data
Performance
Fan Speed: 230 - 1350 rpm
Airflow: 53 CFM/ 90.1 m3/h
Static Pressure: 1 mm H2O
Noise Level: 0.3 Sone
Fan
Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Fluid Dynamic Bearing
Operating Ambient Temperature: 0 - 40 °C
Electric Characteristics:
Typical Voltage: 12 V DC
Starting Voltage: 6 V
Current/ Voltage: 0.12 A / 12 V
Cable Length: 400 mm
Size & Weight
Length: 120 mm
Width: 120 mm
Height: 25 mm
Weight: 109 g
