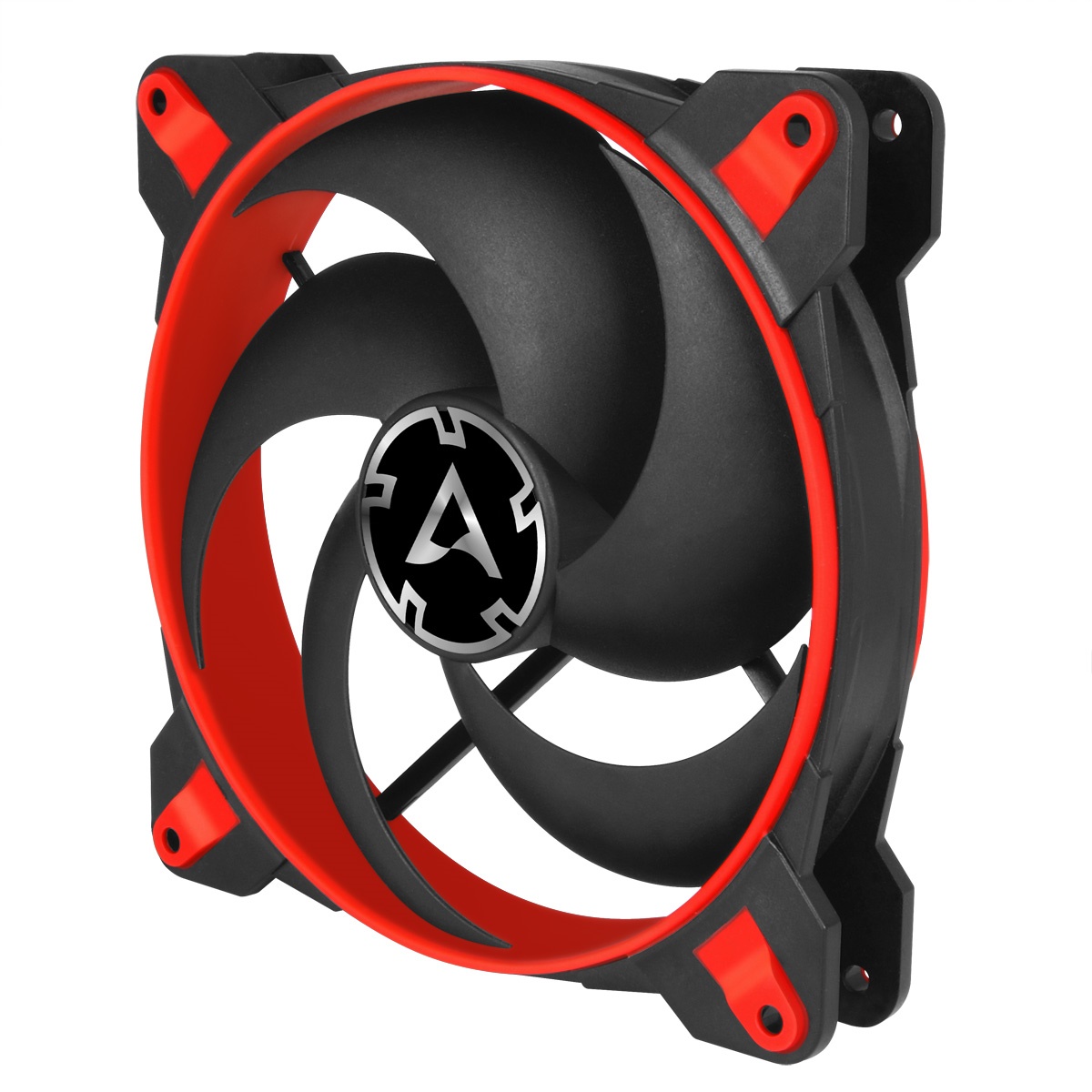

Nový BioniX P140 je ventilátor optimalizovaný pro statický tlak o
rozměru 140x140mm s 200 - 1 950 otáčkami za minutu (řízenými PWM) a
0 dB fan módem. Vzduchový transfer 77.6 CFM / 131.92 m3/h (@ 1.950
RPM), Hlučnost 0.45 Sone (@ 1.950 RPM) a statický tlak 2.85 mm
H2O(@ 1950 RPM).
Optimised for Static Pressure
During the development of the new BioniX P140, special emphasis was
placed on a focused airstream and thus a high static pressure. The
fan guarantees extremely efficient cooling, even with increased air
resistance. Therefore, the BioniX P140 is particularly suitable for
use on heatsinks and radiators.
More Efficient Technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the
newest generation, which allows the new BioniX P140 to run much
more efficiently than its predecessors. This saves energy and
lowers the coil temperature without comprimising the performance.
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is
barely noticeable. Due to a sinus-magnetizing the new motor only
creates about 5 % of the vibration from commutation of a regular
DC-motor without filter. Consequently, there is no need for rubber
spacers due to the steady and smooth torque of the new motor.
Extended Life Span
A 10 °C lower motor temperature roughly doubles the life span of a
fan. The new ARCTIC motor has a four times longer service life
through its low coil temperature. Consequently, we have extended
the warranty to 10 years.
200 to 1950 RPM regulated via PWM PST
With a wide range of regulation and the PWM Sharing Technology
(PST), the BioniX P140 fan speed can be controlled synchronously
with all your other fans together. This keeps noise at a minimum
while guaranteeing maximum cooling performance when needed.
0 dB Mode
The BioniX P140 is able to switch into silent passive mode when the
PWM signal is below 5 % due to its new motor. This allows working
at your PC in complete silence without any unwanted noise.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany,
friction within the bearing is reduced and greater efficiency is
achieved. As a result, there is less heat development as well as
less bearing noise, which means you can enjoy a longer service life
from your fan.
Fan: 140 mm, 200 - 1 950 RPM (Controlled by PWM), 0 dB fan mode
below 5 % PWM
Air Flow: 77.6 CFM / 131.92 m3/h (@ 1.950 RPM)
Noise Level: 0.45 Sone (@ 1.950 RPM)
Static Pressure: 2.85 mm H2O(@ 1950 RPM)
Typical Voltage: 12 V DC
Cable Length: 400 mm
Sub PST Cable Length: 50 mm
Motherboard: +12V DC
PWM control signal
4-pin connector + 4-pin socket
