Marketing Name

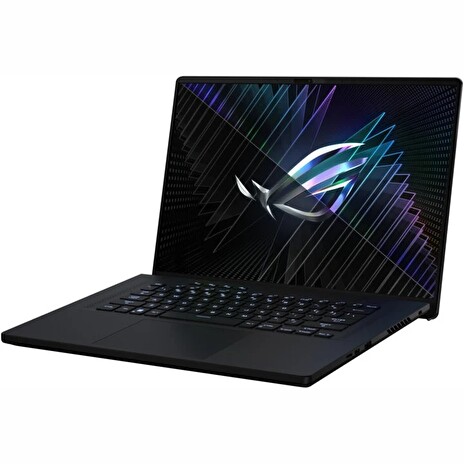

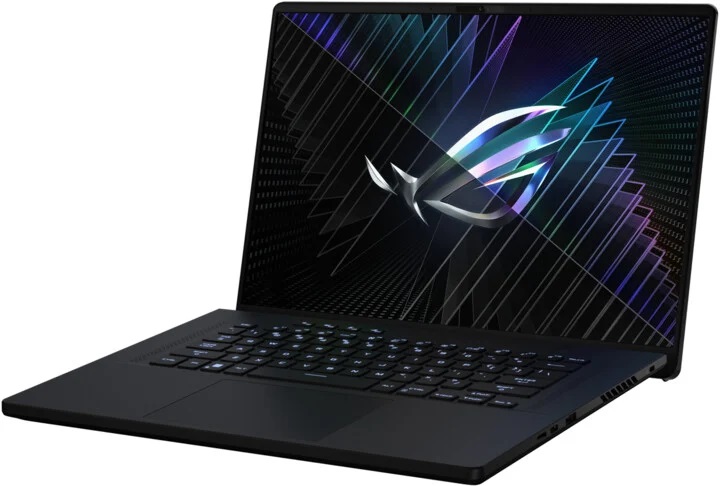

ROG Zephyrus M16
Color
Off Black AniMe Matrix version
Dimension (W x D x H)
35.5 x 24.6 x 2.11 ~ 2.29 cm
Weight
2.30 Kg
Processor
13th Gen Intel® Core™ i7-13700H Processor 2.4 GHz (24M Cache, up to
5 GHz, 14 cores: 6 P-cores and 8 E-cores)
Chipset
TBD
Discrete/Optimus
MUX Switch + NVIDIA® Advanced Optimus
Graphic
NVIDIA® GeForce RTX™ 4080 Laptop GPU
Graphic Wattage
ROG Boost: 1715MHz* at 145W (1665MHz Boost Clock+50MHz OC, 120W+25W
Dynamic Boost, 125W+25W in Manual Mode)
Graphic Memory
12GB GDDR6
IGPU
Intel® UHD Graphics 630
Panel Size
16-inch
Resolution
QHD+ 16:10 (2560 x 1600, WQXGA)
Refresh Rate
240Hz
Response Time (G2G)
3ms
Viewing Angle
85/85/85/85
Panel Tech
IPS-level
Brightness
500nits
Contrast
1200:1
DCI-P3 %
100%
Anti glare
Anti-glare display
Adaptive-Sync technology
G-Sync
Pantone
Pantone Validated
Nebula Display
ROG Nebula Display
Support Dolby Vision HDR
Yes
On board memory
N/A
DIMM Memory
16GB DDR5-4800 SO-DIMM *2
Total System Memory
DDR5 32GB
Memory Slot
2x SO-DIMM slots
Memory Max.
64GB
Multi-channel memory technology
Support dual channel memory
System Storage Installed
1TB PCIe® 4.0 NVMe™ M.2 Performance SSD
M.2 slots support either SATA or NVMe
2
M.2 SSD Support List
"Performance PCIe G4x4
SSD M2 2280 P4X4 512G
SSD M2 2280 P4X4 1TB
SSD M2 2280 P4X4 2TB"
Expansion Slot (includes used)
2x DDR5 SO-DIMM slots
LAN
N/A
Wi-Fi/Bluetooth
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.2 (*Bluetooth®
version may change with OS version different.)
I/O Ports
"1x Thunderbolt™ 4 support DisplayPort™ / power delivery
1x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery
2x USB 3.2 Gen 2 Type-A
1x card reader (microSD) (UHS-II, 312MB/s)"
Display output
1x HDMI 2.1 FRL
Audio
1x 3.5mm Combo Audio Jack
Webcam
1080P FHD IR Camera for Windows Hello
Mic
Built-in 3-microphone array
Keyboard Type
Backlit Chiclet Keyboard 1-Zone RGB
NumberPad
N/A
Aura Sync
Yes
Speakers
"2x 2W
dual-force woofer with Smart Amp Technology
2x 2W Tweeter"
Audio Tech
"AI noise-canceling technology
Dolby Atmos
Hi-Res certification
Smart Amp Technology"
Operating System
Windows 11 Home
Antivirus
MCAFEE_30D
Xbox Game Pass
Xbox Game Pass Ultimate_3 months (*Terms and exclusions apply.
Offer only available in eligible markets for Xbox Game Pass
Ultimate. Eligible markets are determined at activation. Game
catalog varies by region, device, and time.)
Security
"BIOS Administrator Password and User Password Protection
Kensington Security Slot™
Trusted Platform Module (Firmware TPM)"
Battery
90WHrs, 4S1P, 4-cell Li-ion
Power
o6.0, 280W AC Adapter, Output: 20V DC, 14A, 280W, Input: 100~240C
AC 50/60Hz universal
