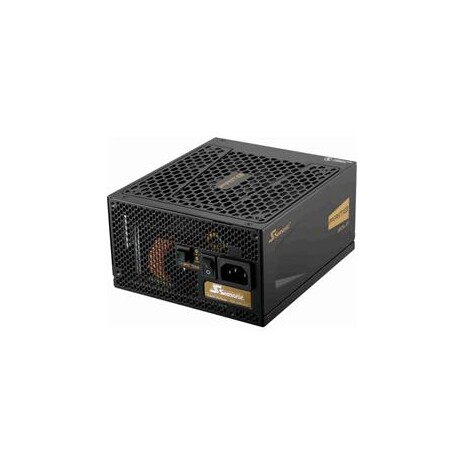

Zdroj 650W, Seasonic PRIME 650 Platinum (SSR-650PD2) 80PLUS Platinum

80PLUS® Platinum
Form Factor Intel ATX 12 V
Dimensions 150 mm (W) x 170 mm (L) x 86 mm (H)

Fan Information
Fan Size 135 mm
Fan Control Premium Hybrid Fan Control
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH

Cable Information
Modularity Fully Modular
Cable type Motherboard, CPU, PCIe - Black webbeb cables
SATA, Molex, Floppy - Flat black cables

Electrical Features
Operating Temperature 0 - 50 °C
MTBF @ 25 °C, excl. fan 150,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP

Safety and Environmental
Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Warranty 12 Years

AC Input
Voltage: 100 V - 240 V
Current: 8.5 - 4 A
Frequency: 50 Hz - 60 Hz

DC Output
Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 20 A 20 A 54 A 0.3 A 2.5 A
100 W 648 W 3.6 W 12.5 W
Total continuous power 650 W
