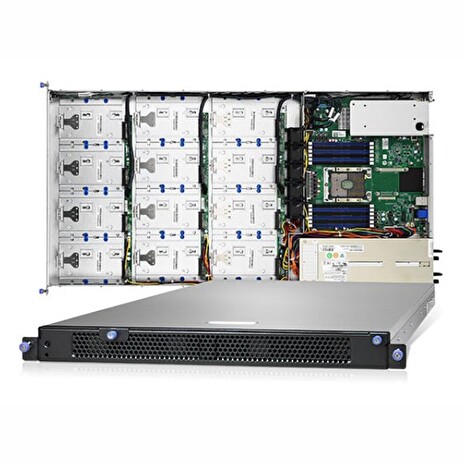

Tyan Thunder SX GT86C-B5630. 1U, 2x LGA3647 SKL CPU, 12 x DIMM slots, 1 x PCI-E Gen3 x16 slot (HH/ HL), 12x 3.5" / 2.5"
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Vše OK

Ověřený zákazník

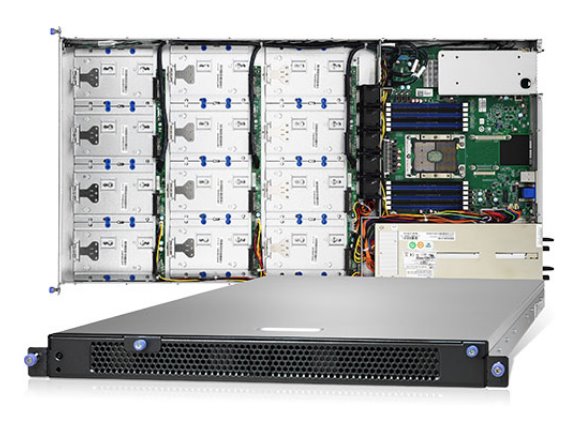

Tyan Thunder SX GT86C-B5630. 1U, 2x LGA3647 SKL CPU, 12 x DIMM slots, 1 x PCI-E Gen3 x16 slot (HH/ HL), 12x 3.5" / 2.5"

TYAN GT86CB5630 (B5630G86CV12) (BTO) Specifications System Form Factor 1U Rackmount Chassis Model GT86C Dimension (D x W x H) 33.86" x 17.32" x 1.72" (860 x 440 x 43.6mm) Motherboard Name S5630GMR Gross Weight 20 kg (44 lbs) Net weight 10.5kg (23.5 lbs) Front Panel Buttons (1) PWR / (1) RST Internal Drive Bay Q'ty / Type (12) 3.5"/2.5" Easy-Swap…
Kód: 3298706PN: B5630G86CV12RVýrobce: TyanZáruka: 6 měsíců
Výrobek pochází z oficiální české distribuce.Více informací…
37 599   včetně DPH
Cena bez DPH: 31 074 Kč
Běžná maloobchodní cena: 39 465 Kč
Ušetříte 1 866 Kč (4,73 %)
Cena po registraci:
37 199 Kč
Cena bez DPH: 30 743 Kč
Nákup po telefonu
+420 587 407 456
Skladem
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 6.12. / ZDARMA!
Přepravní službou (ČR)8.12. / od 120 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.
Toto zboží je možné koupit pouze na IČ.

Popis produktu

TYAN GT86CB5630 (B5630G86CV12) (BTO) Specifications


System Form Factor 1U Rackmount
Chassis Model GT86C
Dimension (D x W x H) 33.86" x 17.32" x 1.72" (860 x 440 x 43.6mm)
Motherboard Name S5630GMR
Gross Weight 20 kg (44 lbs)
Net weight 10.5kg (23.5 lbs)
Front Panel Buttons (1) PWR / (1) RST
Internal Drive Bay Q'ty / Type (12) 3.5"/2.5" Easy-Swap SSD/HDD + (2) 2.5" fixed SSD
HDD Backplane Support SATA 6Gb/s
Supported HDD Interface (14) SATA 6Gb/s
System Cooling Configuration FAN (5) 4cm fans
Power Supply Type PSU
Input Range AC 100-127V/8A / AC 200-240V/4A
Frequency 50-60 Hz
Output Watts 500 Watts
Efficiency PFC / 80 plus gold
Redundancy N/A
Processor Q'ty / Socket Type (1) LGA3647
Supported CPU Series Intel Xeon Scalable Processor / 2nd Gen Intel Xeon Scalable Processor
Thermal Design Power (TDP) Wattage Max up to 165W
System Bus 1066/ 800/ 533 MHz
Chipset PCH Intel C621
Memory Supported DIMM Qty (12) DIMM slots
DIMM Type / Speed DDR4 RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 2933/2666 / DDR4 JEDEC NVDIMM 2666 / Intel Optane DC Persistent Memory Module (DCPMM)
Capacity Up to 384GB RDIMM/ 768GB LRDIMM/ 1,536GB RDIMM 3DS/LRDIMM 3DS *Follow latest Intel DDR4 Memory POR
Memory channel 6 Channels
Memory voltage 1.2V
Notification DDR4-2933 speed only supported with 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake) and in a 1 DIMM per channel configuration. / Intel Optane DC Persistent Memory Module (DCPMM) only supported with specific 2nd Gen Intel Xeon Scalable Processor (codename: Cascade Lake). Please contact Tyan Technical Support for more detail.
Expansion Slots PCI-E (1) PCI-E Gen3 x16 slot (HH / HL)
Pre-installed TYAN Riser Card
(PCI-E Gen3) (1) M2091 riser card for (1) PCI-E Gen3 x16 slot (left) (*Need with tall bracket)
Others (1) PCI-E Gen3 x16 OCP 2.0 slot (conn.A+conn.B)
Physical Dimension
Abbreviation HH/HL (Half-height / Half-length): 2.7" x 6.6" (68.9 x 167.7mm)
LAN Q'ty / Port (1) GbE dedicated for IPMI
PHY Realtek RTL8211E
Storage SATA Connector (2) Mini-SAS HD (8 ports)
Controller Intel C621
Speed 6Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
sSATA Connector (2) SATA-DOM / (1) Mini-SAS HD (4 ports)
Controller Intel C621
Speed 6Gb/s
RAID RAID 0/1/10/5 (Intel RSTe)
Graphic Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Chipset Aspeed AST2500
I/O Ports USB (2) USB3.0 ports (@ rear) / (1) USB3.0 TYPE-A
COM (1) DB-9 COM port
VGA (1) D-Sub 15-pin port
RJ-45 (1) dedicated GbE for IPMI
TPM (Optional) TPM Support Please refer to our TPM supported list.
System Monitoring Chipset Aspeed AST2500
Temperature Monitors temperature for CPU & memory & system environment
Voltage Monitors voltage for CPU, memory, chipset & power supply
LED Over temperature warning indicator / Fan & PSU fail LED indicator
Others Watchdog timer support
Server Management Onboard Chipset Onboard Aspeed AST2500
AST2500 iKVM Feature 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub
AST2500 IPMI Feature IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface
BIOS Brand / ROM size AMI / 32MB
Feature Hardware Monitor / ACPI 5.0 / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / User Configurable FAN PWM Duty Cycle / Console Redirection / ACPI sleeping states S4,S5
Operating System OS supported list Please refer to our AVL support lists. / SuSE Linux/ SLES / VMware ESX / Windows Server 2008, 2008 R2 / Red Hat Enterprise Linux Server
Regulation FCC (SDoC) Class A
CE (DoC) Class A
CB/LVD Yes
RCM Class A
VCCI Class A
Operating Environment Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity 90%, non-condensing at 35° C / 5%~95%, non-condensing
RoHS RoHS 6/6 Compliant Yes
Package Contains Barebone (1) GT86C-B5630 Barebone
Manual (1) Quick Installation Guide
Installation CD (1) TYAN Device Driver CD
