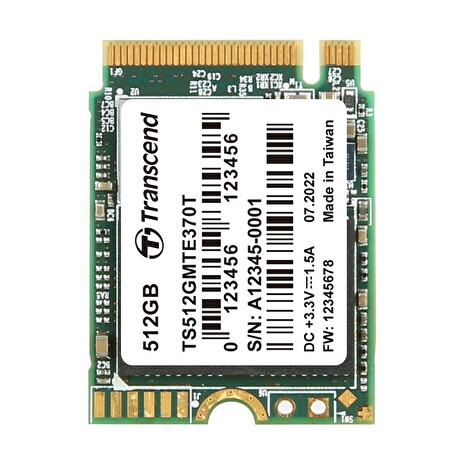

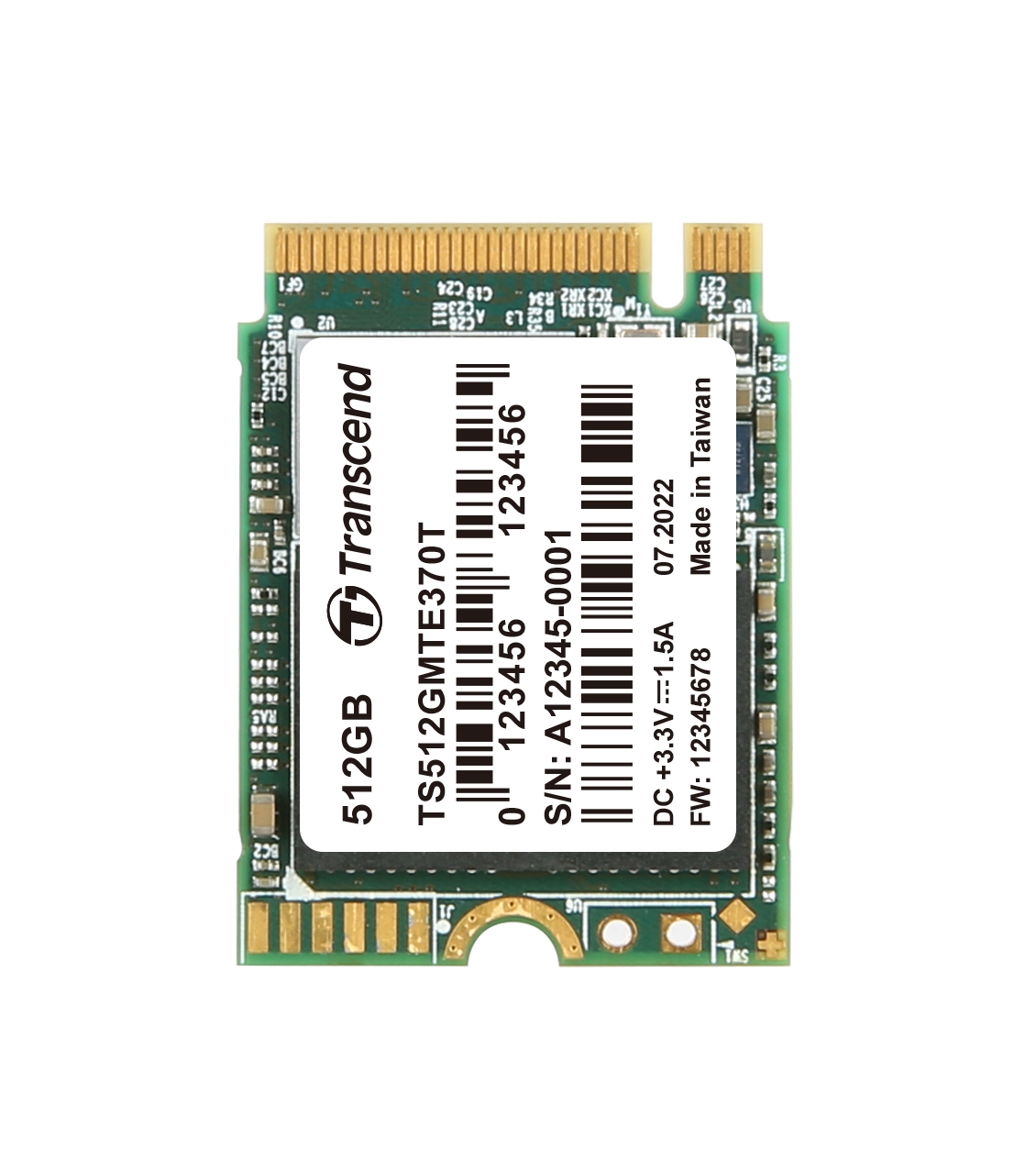

TRANSCEND MTE370T 512GB SSD disk M.2 2230, PCIe Gen3 x4 NVMe 1.3
(3D TLC), 2000MB/s R, 1100MB/s W
Transcend's M.2 2230 SSD MTE370T features state-of-the-art 3D NAND
technology, which allows 112 layers of 3D NAND flash chips to be
vertically stacked. This density breakthrough greatly improves
storage efficiency. The MTE370T features the PCI Express (PCIe) Gen
3 x4 interface and is compatible with NVM Express (NVMe) 1.3
specifications to achieve never-before-seen transfer speeds.
Applied with the 30µ" gold finger PCB and Corner Bond technology,
the MTE370T is fully tested in-house to guarantee reliability in
mission-critical applications, boasting an endurance rating of 3K
Program/Erase cycles and an extended operating temperature ranging
from -20°C~75°C.
Technologies:
- 30µ” PCB Gold Finger
- Corner Bond
- Extended Temperature
- Dynamic Thermal Throttling
- Thermal Sensor
- Read Disturbance
- Anti-sulfur Technology
- Garbage Collection
- Wear Leveling
- TRIM
- Bad Block Management
- Power Shield (PS)
- Early Move
Firmware Features:
- Supports NVM command
- SLC caching technology
- Dynamic thermal throttling
- Built-in LDPC ECC (Error Correction Code) functionality
- Advanced Global Wear-Leveling and Block management for
reliability
- Advanced Garbage Collection
- Supports S.M.A.R.T. function to conduct health monitoring,
analysis, and reporting for storage devices
- TRIM command for better performance
- NCQ command for better performance
- Full drive encryption with Advanced Encryption Standard (AES)
(optional)
Hardware Features:
- Compliant with RoHS 2.0 standards
- Compliant with NVM Express specification 1.3
- Compliant with PCI Express specification 3.1
- Single-sided to fit perfectly in small form factor devices
- Space-saving M.2 form factor (30mm) – ideal for mobile computing
devices
- PCIe Gen 3 x4 interface
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Key components fortified by default with Corner Bond technology
- 30µ" PCB gold finger
- Anti-sulfur technology implemented to prevent sulfurization in
the environment
- Power Shield (PS) to ensure data transfer integrity and minimize
data corruption in the drive during an abnormal power outage
- Promised operational reliability in an extended temperature range
(from -20°C to 75°C)
- Supports Transcend Scope Pro software
Software Solutions:
Control Center
Improve your control by easily managing devices at anytime from
edge to cloud.
Scope Pro
Manage / analyze data in real time and capture more of your market.
One Touch Recovery
Rescue your data with a click to create a reliable and robust
environment.
Specifications:
Dimensions: 30 mm x 22 mm x 2.38 mm
Weight: 4 g
M.2 Type: 2230-S2-M
Form Factor: M.2 2230
Bus Interface: NVMe PCIe Gen3 x4
Capacity: 512 GB
Flash Type: 112-layer 3D NAND flash
Operating Voltage: 3.3V±5%
Operating Temperature:
Extended Temp.: -20°C (-4°F) ~ 75°C (185°F)
Storage Temperature: -55°C (-67°F) ~ 75°C (167°F)
Humidity: 5% ~ 95%
Shock: 1500 G, 0.5 ms, 3 axis
Vibration (Operating): 20 G (peak-to-peak), 7 Hz ~ 2000 Hz
(frequency)
Power Consumption (Operation): 3.3 watt(s)
Power Consumption (IDLE): 0.4 watt(s)
Sequential Read/Write (CrystalDiskMark):
- Read: up to 2,000 MB/s
- Write: up to 1,100 MB/s
4K Random Read/Write (IOmeter):
- Read: up to 90,000 IOPS
- Write: up to 220,000 IOPS
Mean Time Between Failures (MTBF): 3,000,000 hour(s)
Terabytes Written (TBW): up to 480 TBW
Drive Writes Per Day (DWPD): 2.0 (3 yrs)
Note
Speed may vary due to host hardware, software, usage, and storage
capacity.
The workload used to rate DWPD may be different from your actual
workload, which may vary due to host hardware, software, usage, and
storage capacity.
Terabytes Written (TBW) expresses the endurance under the highest
capacity.
Certificate : CE/FCC/BSMI/UKCA
Warranty: Three-year Limited Warranty
Warranty does not apply when Scope Pro software wear-out indicator
displays 0% within the warranty coverage.
Due to the complexity and variety of industrial applications,
Transcend cannot guarantee 100% compatibility with all platforms
and under all scenarios. For special applications and environments,
it is strongly suggested that you contact Transcend beforehand for
clarification.
Scope Pro software is required by request. Please contact us for
more information.
