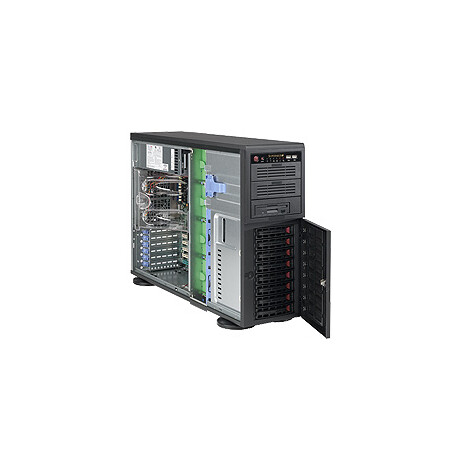

SUPERMICRO Tower/4U 8x 3,5" HS SAS/SATA, 2x 5,25", 1x 5,25" pro 3,5", 903W (80+gold) (Super Quiet - 28dB)
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

rychlé

Ověřený zákazník

Supermicro Tower/4U 8x 3,5" HS SAS/SATA, 2x 5,25", 1x 5,25" pro 3,5", 903W (80+gold) (Super Quiet - 28dB)

8x 3.5"/2.5" SAS/SATA Backplane for Hot-Swappable Drives Whisper-Quiet (
Kategorie: Příslušenství k serverům Supermicro
Kód: 3161991PN: CSE-743TQ-903B-SQVýrobce: SupermicroZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
15 999 Kč  včetně DPH
Cena bez DPH: 13 222 Kč
Běžná maloobchodní cena: 17 155 Kč
Nákup po telefonu
+420 587 407 456
Skladem

Popis produktu

  1. 8x 3.5"/2.5" SAS/SATA Backplane for Hot-Swappable Drives
  2. Whisper-Quiet (<28dB)
  3. Front HDD Door Lock & Side Panel Intrusion Switch
  4. Front I/O Ports: 2x USB 3.0
  5. 2x 8cm PWM Fans & 1x 9cm Rear PWM Fan
  6. 4U / Full Tower Chassis Supports max. Motherboard, Sizes: E-ATX 12" x 13"/ATX/Micro ATX
  7. 903W 80-Plus Gold Certified High-Efficiency Power Supply
  8. 3x 5.25" External HDD Drive Bays & 8x 3.5"/2.5" Hot-Swappable HDD Drives






Specifications

Product SKUs

CSE-743TQ-903B-SQ
  • SuperChassis 743TQ-903B-SQ

Form Factor

  • 4U chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX and ATX

Processor Support

  • Dual and Single Intel® and AMD processors

Dimensions

Height
  • 17.8" (452 mm)
Width
  • 7" (178 mm)
Depth
  • 25.5" (647 mm)
Net Weight
  • 53 lbs (24.04 kg)
Gross Weight
  • 56 lbs (25.4 kg)
Packaging (W x H x L)
  • 24.6" (625 mm) x 14" (356 mm) x 31.3" (795 mm)
Available Color
  • Black

Expansion Slots

  • 7 full-height & full-length expansion slot(s)

Drive Bays

  • 8 x 3.5"/2.5" hot-swap SAS drive bay with SES3

Backplane

  • 743 SAS BACKPLANE W/AMI MG9072

Peripheral Drives

  • 3 x standard 5.25" drive bay
  • 90 degree rotatable drive cage

Front Panel

Buttons
  • Power On/Off button
  • System Reset Button
LEDs
  • 2 Network Activity LEDs
  • Fan Fail/System Over Heat LED
  • HDD activity LED
  • Power Status LED
  • Unit Identification (UID) LED
Ports
  • 2x USB 3.0 Port(s)
Systems Cooling

Fans
  • 2 x 2800 RPM fan(s)
  • 1 x 2700 RPM fan(s)

System Monitoring

  • Chassis intrusion switch

Operating Environment (System)

Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
PS2/ATX 900W multiple outputs power supply, Gold level, 12cm fan
Power Efficiency
  • 90%
Total Output Power and Input
  • 900W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 190 x 150 x 86 mm
Output Type
  • 24pin ATX
-12V
  • Max: 0.5A / Min: 0A
+12V
  • Max: 25A / Min: 0.1A (100Vac - 240Vac)
  • Max: 25A / Min: 0.1A (100Vac - 240Vac)
  • Max: 25A / Min: 0.1A (100Vac - 120Vac)
  • Max: 25A / Min: 0.1A (100Vac - 240Vac)
+5V
  • Max: 25A / Min: 0A
+3.3V
  • Max: 25A / Min: 0A
+5Vsb
  • Max: 4A / Min: 0.02A
+12Vsb
  • Max: NAA
Certification
  • Gold Certified  Gold Certified

Regulatory (Power Supply)

Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class B
  • TUV/CB
  • UL/CUL
Components

Standard Parts List

  Part Number Qty Description
HD Backplane CSE-SAS-743TQ 1 743 SAS BACKPLANE W/AMI MG9072
Cable(S) CBL-0044L 4 57.5CM SATA FLAT S-S PBF
Cable(S) CBL-0084 1 16 PIN FRONT CTRL SPLIT CONVECTOR 6"
Cable(S) CBL-0087 1 CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
Cable(S) CBL-0157L 1 8PIN TO 8PIN RIBBON CABLE FOR SGPIO, PB FREE
Cable(S) CBL-0160L 1 US POWER CORD 16AWG, PB FREE
Cable(S) CBL-0216L 4 4 TO 4 PIN FAN POWER CABLE, 210MM
Cable(S) CBL-0471L 1 USB3.0 Internal Cable-80cm (19pin Female to 19pin Female)
Fan(s) FAN-0103L4 1 92x25 4Pin PWM Fan assembly for SC743 Super Quiet rear fan
Fan(s) FAN-0104L4 2 80x25,4 Pin PWM fan assem. for SC743 Super Quiet chassis fan
Drive Tray(s) MCP-220-00193-0N 8
Power Supply & Accessory PWS-903-PQ 1 PS2 900W Multi-Output Power Supply 80Plus Gold

Optional Parts List

  Part Number Qty Description
Mounting Rail CSE-PT26L-(B) -
HDD Tray MCP-220-00080-0B - Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray
Air Shroud MCP-310-49002-0N - SC743 Intel DP X9, X8 PC air shroud 12x13MB
Air Shroud MCP-310-48002-0N - Intel DP X8, X7 motherboard air shroud for passive CPU heatsink
Air Shroud MCP-310-74301-0N - Air Shroud For SC743-SQ
Cable CBL-0157L - 8 pin to 8 pin ribbon SGPIO cable with tube , 40cm, PBF
Cable CBL-0286L - 4 to 4 pin rear fan pwr ext w/ square header, 30cm (PWM). 24AWG
Fan Kit FAN-0082L4 - 80x80x38 mm 4-pin PWM Fan Assembly for SC743, SC745
Fan Kit FAN-0091L4 - 92X38MM 4-PIN PWM FAN W/ HUS FOR SC743
Heatsink / Retention - - Please refer to our Thermal Components Matrix
Peripheral Drive(s) DVM-LITE-DVDRW24-HBT - BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF
Active Heatsink SNK-P0034AP4 - 4U+ ACTIVE CPU HS FOR SC743 W/ X7 DP WS MB

Parametry

ProvedeníTower / 4U
