Počítače a kancelář  Servery  Příslušenství  Supermicro Mid-Tower 4x 3,5" fixed HDD, 2x 5,25", 1x external 3,5", 668W…

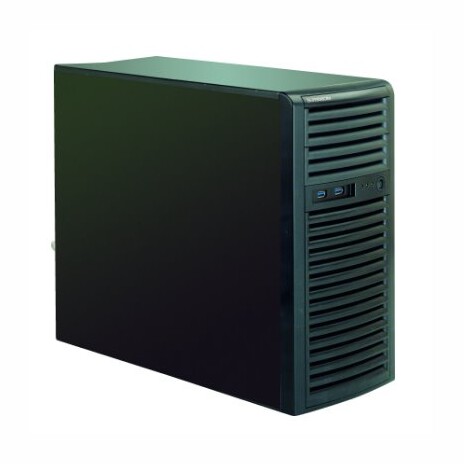

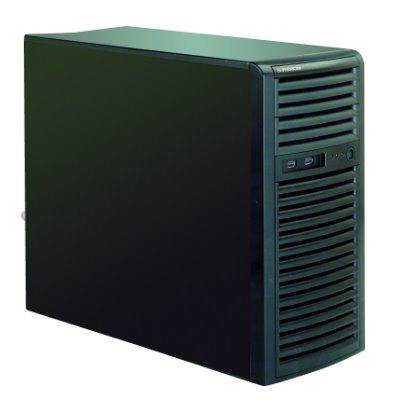

SUPERMICRO Mid-Tower 4x 3,5" fixed HDD, 2x 5,25", 1x external 3,5", 668W (80PLUS Platinum)
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

rychlé

Ověřený zákazník

Supermicro Mid-Tower 4x 3,5" fixed HDD, 2x 5,25", 1x external 3,5", 668W (80PLUS Platinum)

Key Features 90° Rotatable HDD Cage Whisper-Quiet (
Kód: 3302082PN: CSE-732I-668BVýrobce: SupermicroZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
7 799   včetně DPH
Cena bez DPH: 6 445 Kč
Nákup po telefonu
+420 587 407 456
Skladem
Kdy zboží dostanu?termín / cena přepravy
Na prodejně v Olomouci (po objednání)již 6.12. / ZDARMA!
Přepravní službou (ČR)8.12. / od 250 Kč
Na výdejním místě (ČR)9.12. / od 120 Kč
Uvedený termín je průměrná doba doručení uvedenou službou.

Popis produktu

Key Features

  1. 90° Rotatable HDD Cage
  2. Whisper-Quiet (<21dB)
  3. Kensington Lock Security
  4. Front I/O Ports: 2x USB 3.0
  5. 1x Optional Front 12cm (1850 RPM) PWM Fan
  6. Mid-Tower Chassis Supports Micro-ATX Motherboard, Sizes ? E-ATX/ATX/Micro ATX
  7. 668W Platinum Level Certified High-Efficiency Power Supply
  8. 1x Rear 12cm (1850 RPM) PWM Fan
  9. 2x 5.25" External HDD Drive Bays & 4x 3.5" Internal HDD Drive Bays
Specifications

Product SKUs

CSE-732I-668B
  • SuperChassis 732I-668B

Form Factor

  • Mid-tower chassis support for max. motherboard size - 12" x 13" E-ATX, 12" x 10" ATX and 9.6" x 9.6" Micro-ATX

Processor Support

  • Dual, single Intel® / AMD processors

Dimensions

Height
  • 16.7" (424 mm)
Width
  • 7.6" (193 mm)
Depth
  • 20.68" (525 mm)
Net Weight
  • 28 lbs (12.7 kg)
Gross Weight
  • 30 lbs (13.61 kg)
Packaging (W x H x L)
  • 21.38" (543 mm) x 11.97" (304 mm) x 25.28" (642 mm)
Available Color
  • Black

Expansion Slots

  • 7 full-height & full-length expansion slot(s)

Drive Bays

  • 4 x 3.5" fixed drive bay
  • Optional 4 x 2.5" fixed drive bay

Peripheral Drives

  • 2 x standard 5.25" drive bay
  • 1 x 3.5" internal fixed drive bay

Front Panel

Buttons
  • Power On/Off button
LEDs
  • 1 Network Activity LEDs
  • HDD activity LED
  • Power Status LED
  • System Overheat LED
Ports
  • 2x USB 3.0 Port(s)
Systems Cooling

Fans
  • 1 x 12cm rear exhaust fan(s)
  • Optional 1 x 12cm (front) cooling fan

Operating Environment (System)

Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
PS2 668W Multi-output power supply 80PLUS Platinum
Power Efficiency
  • 92%
Total Output Power and Input
  • 668W with Input 100 - 240Vac
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 185 x 150 x 86 mm
Output Type
  • 24pin ATX
-12V
  • Max: 0.1A / Min: 0A
+12V
  • Max: 54A / Min: 0.2A (100Vac - 240Vac)
+5V
  • Max: 20A / Min: 0.1A
+3.3V
  • Max: 15A / Min: 0.1A
+5Vsb
  • Max: 2A / Min: 0A
Certification
  • Platinum Certified  Platinum Certified

Regulatory (Power Supply)

Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class B
  • TUV/CB
  • UL/CUL
Components

Standard Parts List

  Part Number Qty Description
Bracket MCP-250-73201-0N 1 SC732 PS2 Power Supply Bracket
Cable(s) CBL-0071L 1 ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
Cable(s) CBL-0084L 1 16PIN FRONT CTRL SPLIT CONVECTOR 6",PB FREE
Cable(s) CBL-CUSB-1007 1 20p,F to 2x USB 3.0 type A,F,70CM,26/30AWG,RoHS
Cable(s) CBL-PWCD-0160-IS 1 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
Part(s) MCP-230-73201-0N 1 SC732i USB2.0 Module Assembly
Fan(s) FAN-0124L4 1 12 CM x12 CM fan
Front Bezel MCP-210-73201-0B 1 Black SC732i Front IO Dummy Cover
Front Panel MCP-280-73101-0B 1 Black SC731i Plastic Front Control Panel Assembly
Drive Tray(s) MCP-220-73101-0B 4 SC731 Tool-less Internal 3.5inch HDD Tray
Power Supply & Accessory PWS-668-PQ 1 PS2 668W Multi-Output 80Plus Platinum Power Supply with 24pi

Optional Parts List

  Part Number Qty Description
Heatsink / Retention N/A - Please refer to our Thermal Components Matrix
2.5" HDD Bracket MCP-220-73201-0N - HDD Cage (4x Internal 2.5" fixed HDD bays)
Fan Kit FAN-0124L4 - 12 CM x12 CM fan

Parametry

ProvedeníTower
