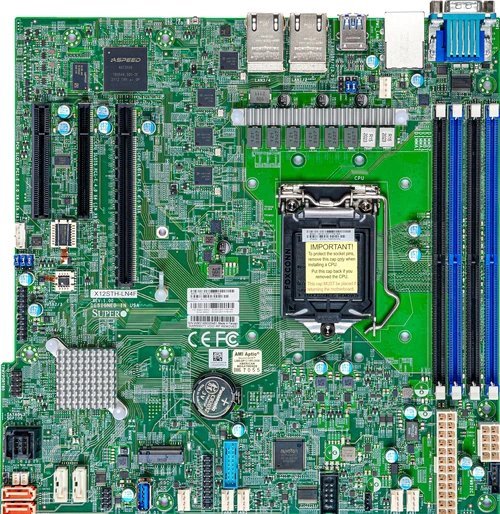

SUPERMICRO MB LGA1200 (Xeon E3-2300), C252, 4xDDR4, 6xSATA3, M.2, 4xPCIe4.0 (x8, 2 x4, x2), VGA, 4x LAN, IPMI
Obrázky mají pouze informativní charakter a mohou se lišit od skutečnosti.

Recenze spokojených zákazníků:

Tento obchod doporučuji

Ověřený zákazník

Supermicro MB LGA1200 (Xeon E3-2300), C252, 4xDDR4, 6xSATA3, M.2, 4xPCIe4.0 (x8, 2 x4, x2), VGA, 4x LAN, IPMI

Key Features   Intel® Xeon®  E-2300 Processor, 10th Generation Intel® Pentium® Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP Intel® C256 Up to 128GB ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots 1 PCI-E 4.0 x16 1 PCI-E 4.0 x4 (in x8 slot) 1 PCI-E 3.0 x4 (in x8 slot) M.2 Interface:  PCI-E 3.0…
Kód: 3632821PN: MBD-X12STH-LN4F-OVýrobce: SupermicroZáruka: 2 roky
Výrobek pochází z oficiální české distribuce.Více informací…
Aktuálně není v nabídce

Popis produktu

Key Features
  1.
  2. Intel® Xeon®  E-2300 Processor, 10th Generation Intel® Pentium® Processor, Single Socket LGA-1200 (Socket H5) supported, CPU supports Up to 95W TDP
  3. Intel® C256
  4. Up to 128GB ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
  5. 1 PCI-E 4.0 x16
    1 PCI-E 4.0 x4 (in x8 slot)
    1 PCI-E 3.0 x4 (in x8 slot)
    M.2 Interface: PCI-E 3.0 x4
    M.2 Form Factor: 2280, 22110
    M.2 Key: M-Key
  6. Quad LAN with Intel® Ethernet Controller I210
  7. Intel® C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  8. 2 SuperDOM with built-in power
  9. I/O: 1 VGA, 2 COM, 1 TPM header
  10. 5x USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 6x USB 2.0 (2 rear, 4 via headers)
  11. Gen12 iGPU support



Specifications

Product SKUs

MBD-X12STH-LN4F
  • X12STH-LN4F


Physical Stats

Form Factor
  • Micro-ATX
Dimension
  • 9.6" x 9.6" (24.38cm x 24.38cm)


Processor

CPU
  • 10th Generation Intel® Pentium® Processor, Intel® Xeon®  E-2300 Processor
  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP
Core
  • Up to 8 cores, 16 threads


System Memory

Memory Capacity
  • 4 DIMM slots
  • Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MHz
Memory Type
  • 3200/2933/2666MHz SDRAM
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors


On-Board Devices

Chipset
  • Intel® C256
SATA
  • Intel® C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2600 BMC
Graphics
  • ASPEED AST2600 BMC
Network Controllers
  • Quad LAN with Intel® Ethernet Controller I210


Input / Output

SATA
  • 8 SATA3 (6Gbps) port(s)
LAN
  • 4 RJ45 Gigabit Ethernet LAN ports
USB
  • 6 USB 2.0 port(s) (4 via header; 2 rear)
  • 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A)
Video Output
  • 1 VGA port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
DOM
  • 2 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header

Expansion Slots

PCI-E
  • 1 PCI-E 3.0 x4 (in x8 slot),
  • 1 PCI-E 4.0 x16,
  • 1 PCI-E 4.0 x4 (in x8 slot)
M.2
  • M.2 Interface: 1 PCI-E 3.0 x4
  • Form Factor: 2280/22110
  • Key: M-Key


System BIOS

BIOS Type
  • 256MB UEFI
BIOS Features
  • ACPI 6.0
  • SMBIOS 2.7
  • Plug and Play (PnP)
  • RTC (Real Time Clock) Wakeup
  • UEFI 2.7
  • USB Keyboard support
  • PCI 3.0


Management

Software
  • SuperDoctor® 5, NMI, SUMSPM, Intel® Node Manager, SSMIPMI2.0, Watchdog
System Management Software
  • IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management


PC Health Monitoring

Voltage
  • VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED
  • UID/Remote UID
  • CPU / System Overheat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
FAN
  • 6x 4-pin fan headers (up to 6 fans)
  • Thermal control tachometer fan connectors
  • Fan speed control
  • 6 fans with tachometer status monitoring
  • Overheat LED indication
Other Features
  • WOL
  • UID
  • Node Manager Support
  • M.2 NGFF connector
  • Dual Cooling Zones
  • CPU thermal trip support for processor protection
  • Control of power-on for recovery from AC power loss
  • Chassis intrusion header
  • Chassis intrusion detection
  • ACPI power management


Operating Environment

Operating Temperature Range
  • 0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Parts List
Parts List (Bulk Package)
Name Part Number Qty Description
Motherboard MBD-X12STH-LN4F 1 X12STH-LN4F Motherboard
I/O Cables CBL-0044L   2 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00164-0N 1 STD I/O Shield for X12STH-LN4F with EMI Gasket
Parts List (Retail Package)
Name Part Number Qty Description
Motherboard MBD-X12STH-LN4F 1 X12STH-LN4F Motherboard
I/O Cables CBL-0044L   4 57.5CM SATA FLAT S-S PBF
I/O Shield MCP-260-00164-0N 1 STD I/O Shield for X12STH-LN4F with EMI Gasket
QRG MNL-2367-QRG 1 Motherboard Quick Reference Guide
Optional Parts List
Name Part Number Qty Description
TPM security module AOM-TPM-9671H -- SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor
AOM-TPM-9671V -- SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
AOM-TPM-9670H -- SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor
AOM-TPM-9670V -- SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
